AT8M 8-pin Subconn-style waterproof connector with IP68 rating for ROV, UUV, and AUV robots. Offers gold-plated brass contacts, 10A per pin capacity, and 600V performance in rugged ocean environments.

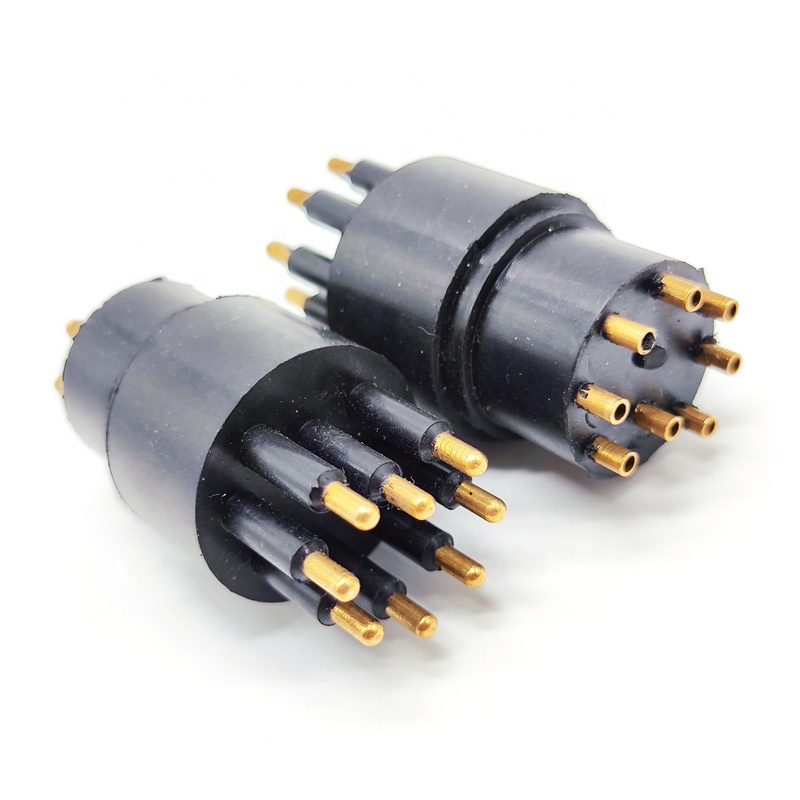

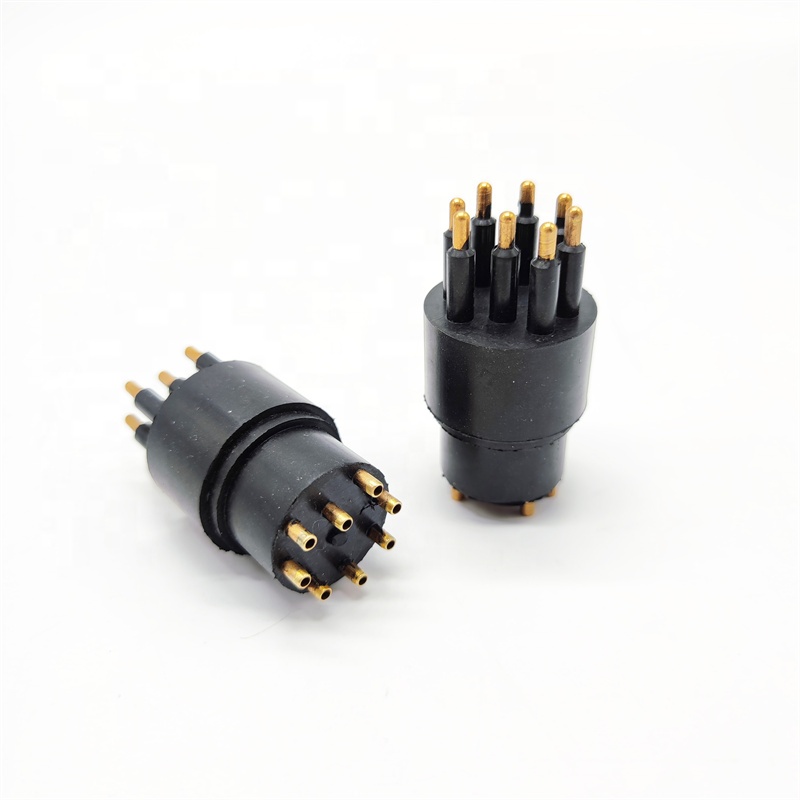

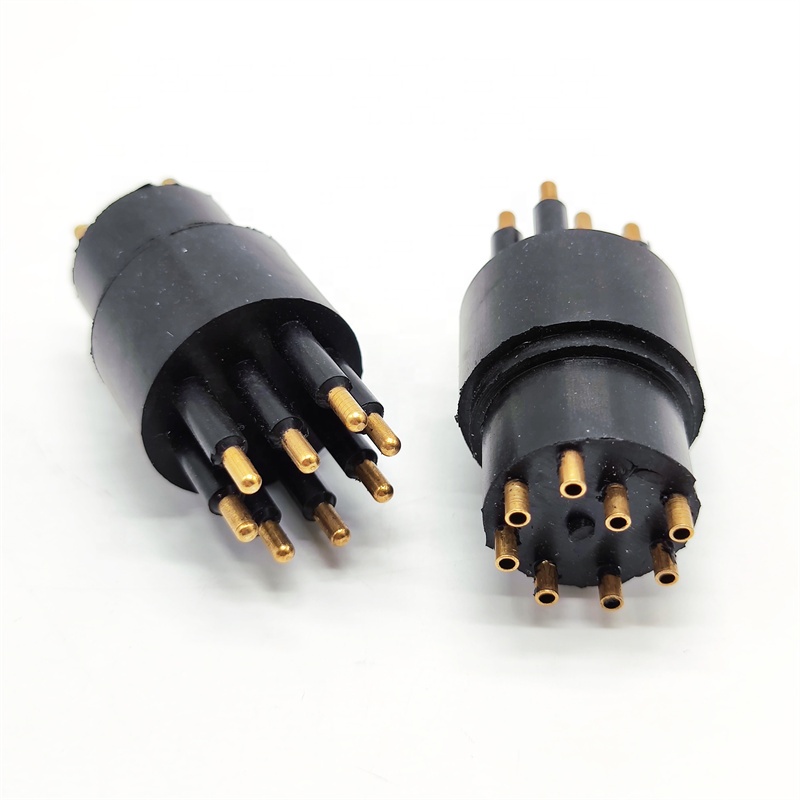

The AT8M 8Pin Underwater Connector is a Subconn-compatible, round-shaped IP68-rated connector designed specifically for subsea robots such as ROVs, UUVs, and AUVs. Each of the 8 gold-plated brass contacts (UNS - C36000) supports a current of 10A and up to 600V, ensuring high-performance power distribution in underwater operations. Built with a robust rubber housing, stainless steel AISI 302 snap rings, and AISI 303 location pins, the connector withstands deep-sea pressure up to 300 bar (4350 psi). Its compact and durable build offers excellent electrical insulation, corrosion resistance, and mechanical strength, making it ideal for marine harnesses and subsea power systems.
Brand: HYSF

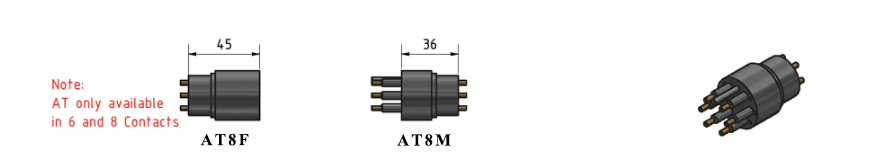

Model Number: AT8M
Type: 8-Pin Subconn-Style Underwater Connector
Application: Power Transmission for ROVs, UUVs, AUVs, Marine Robotics

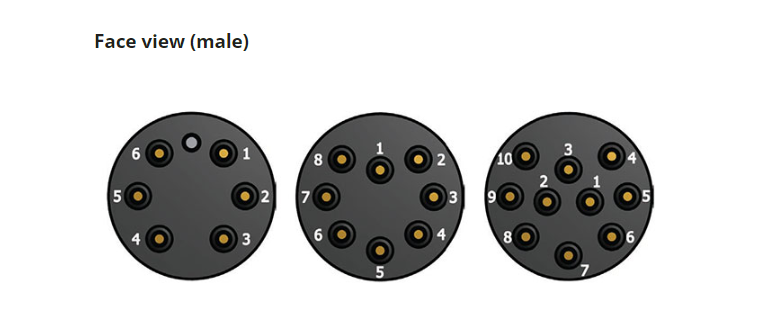

Pins: 8 Pin
Rated Current: 10A per pin
Rated Voltage: 600V
Resistance: ≥200MΩ
Waterproof Rating: IP68
Shape: Round
Connector Body Material: Rubber
Contact Material: Gold Plated Brass UNS - C36000
Snap Rings: Stainless Steel AISI 302
Location Pin: Stainless Steel AISI 303
Depth Rating: 300 bar (4350 psi, PEEK configuration)
Temperature Range: -4℃ ~ +60℃
Gender: Female
Place of Origin: Shandong, China
Certification: TUV, CE, CCC
MOQ: 5 Sets
