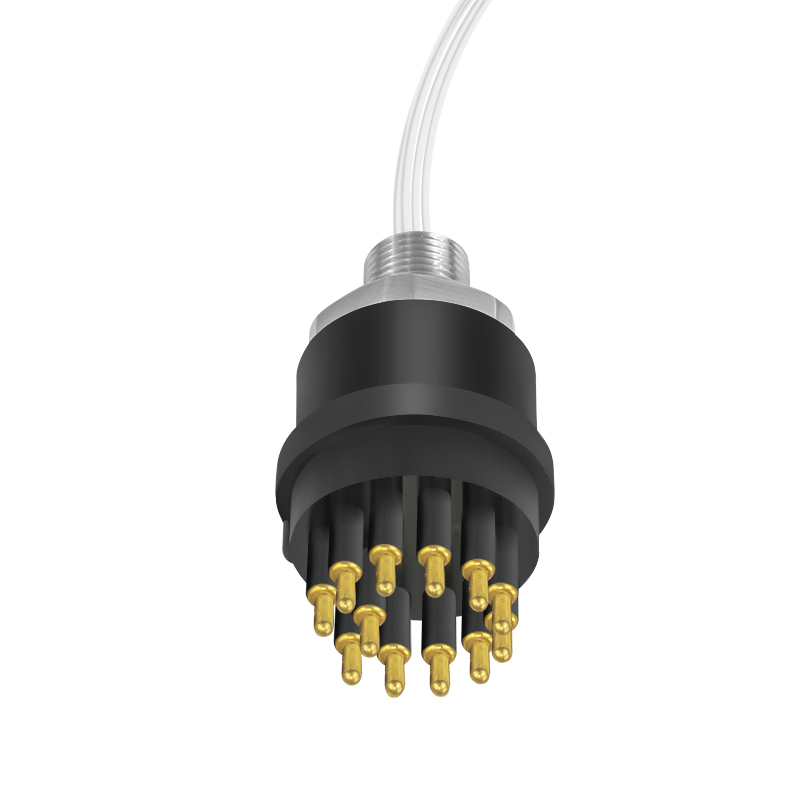

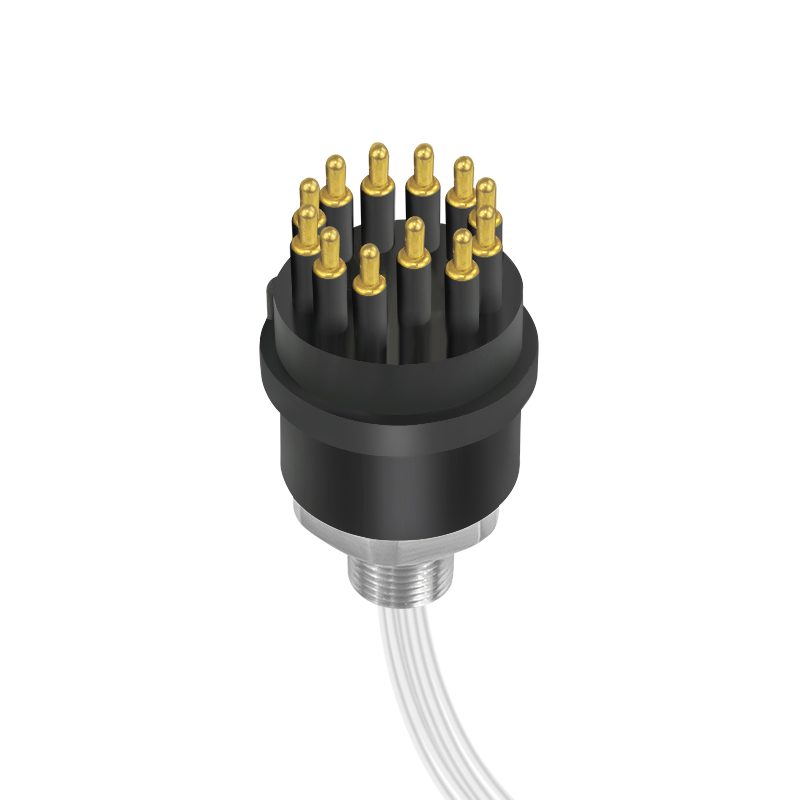

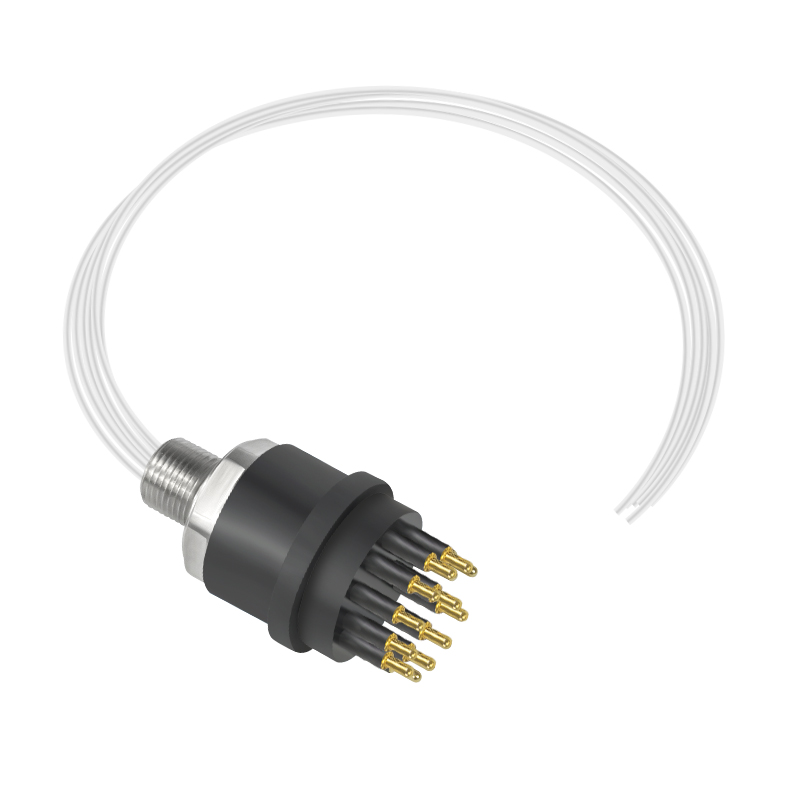

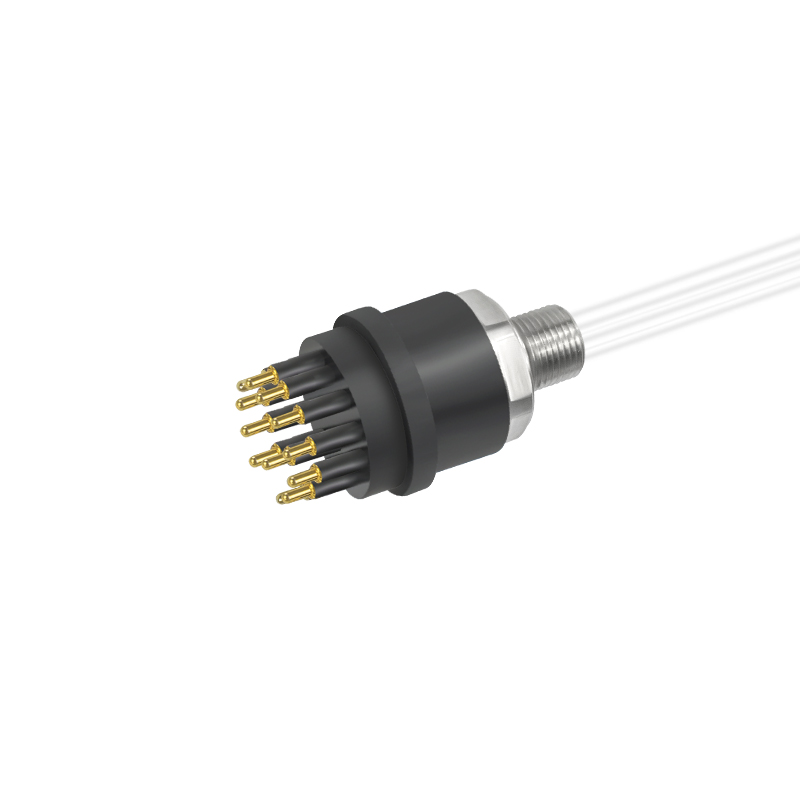

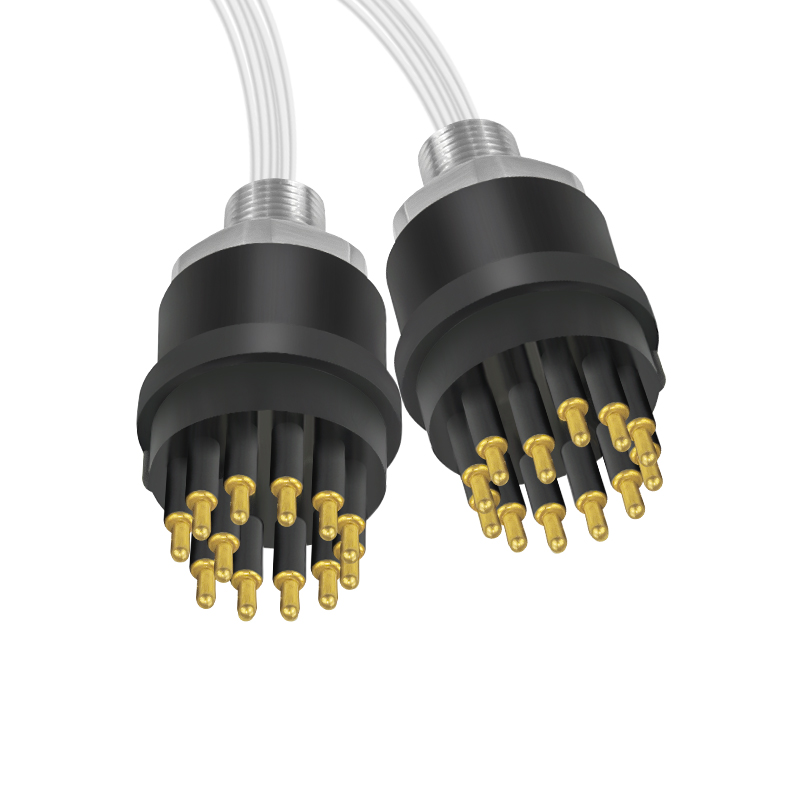

The BH12MSS is a 12-pin male bulkhead underwater connector designed for subsea applications, including AUVs and ROVs. Featuring a stainless steel or titanium housing, IP68 waterproofing, and 10,000 PSI pressure tolerance, it ensures reliable electrical connections in deepwater environments.
The BH12MSS 12-pin male circular bulkhead connector is an advanced underwater solution for subsea applications, including AUVs, ROVs, and deepwater environments. This connector is engineered with a stainless steel or titanium housing, providing exceptional resistance to corrosion in harsh marine conditions. With an IP68 waterproof rating and a pressure tolerance of up to 10,000 PSI (approx. 689 Bar), the BH12MSS offers reliable performance for critical electrical connections. Supporting both AC and DC power transmission, it ensures versatility and stability for a wide range of underwater equipment. Customization options for pin layouts and housing materials are also available to meet specific operational needs.
Brand: HYSF
Model Number: BH12MSS
Type: 12 Pins Male Circular Bulkhead Waterproof Connector
Pins: 12 Pins
Shape: Standard Round
Waterproof Rating: IP68
Mated Pressure Rating: Up to 10,000 PSI / 689 Bar
Interface Type: AC/DC
Housing Material: Stainless Steel, Titanium
Contact Material: Gold Plated Brass
Gender: Male
Certification: ISO9001-2015
Application Range: AUVs, ROVs, Deepwater Systems, Marine Sensors, Oceanographic Instruments
Custom Processing: Supported (Pin layout, housing materials, cable length)
Place of Origin: Guangdong, China
