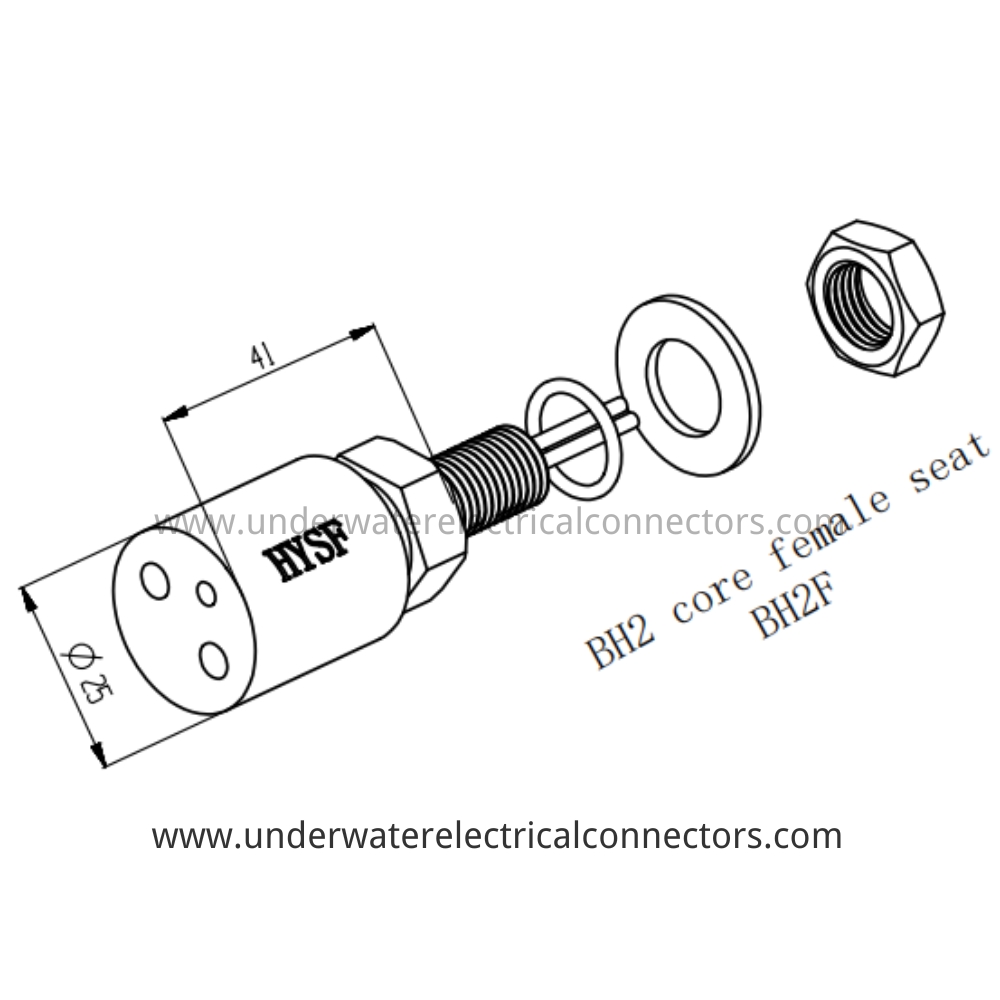

HYSF BH2F 2-Pin Female Bulkhead Underwater Connector

Product Description

The HYSF BH2F is a high-performance **2-pin female bulkhead underwater connector** specifically engineered for panel-mount applications in demanding marine environments. Featuring a compact **M14×1 mounting thread** and only **41 mm total length** behind the panel, it provides reliable electrical feed-through while occupying minimal space on pressure housings and underwater equipment.

Manufactured from corrosion-resistant **316L stainless steel** with **gold-plated copper alloy contacts**, this bulkhead connector incorporates dual O-ring sealing and high-pressure glass-reinforced epoxy potting to achieve exceptional **70 MPa (7000 meters)** depth rating. The open-face pressure-tolerant design ensures stable performance even at extreme depths.

Fully interchangeable with Subconn® Standard BH2F series, the HYSF version offers identical mating interface and electrical characteristics at a significantly lower cost. Supplied with locking sleeve and mounting nut, ready for immediate integration into titanium or aluminum housings.

Product Parameter

Model: BH2F

Brand: HYSF

Type: 2-Pin Female Bulkhead Connector

Gender: Female (Socket)

Pin Count: 2 Pins

Contact Material: Gold-plated Copper Alloy

Current Rating: 16A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Mounting Thread: M14×1

Total Length: 41 mm (behind panel)

Face Diameter: Ø18 mm

Sealing: Dual O-Ring + Epoxy Potting

Waterproof Rating: IP68/IP69 (Open Face Pressure Tolerant)

Pressure Rating: 70 MPa (~7000 m depth)

Operating Temperature: -10°C to 70°C

Insulation Resistance: >200 MΩ

Contact Resistance: <8 mΩ

Application: Subsea Camera Housings, ROV Junction Boxes, Deep-Sea Sensors, Pressure Vessel Feed-through

Certification: ISO9001-2015

Compatibility: Subconn® Standard Circular Series BH2F

Place of Origin: Guangdong, China
