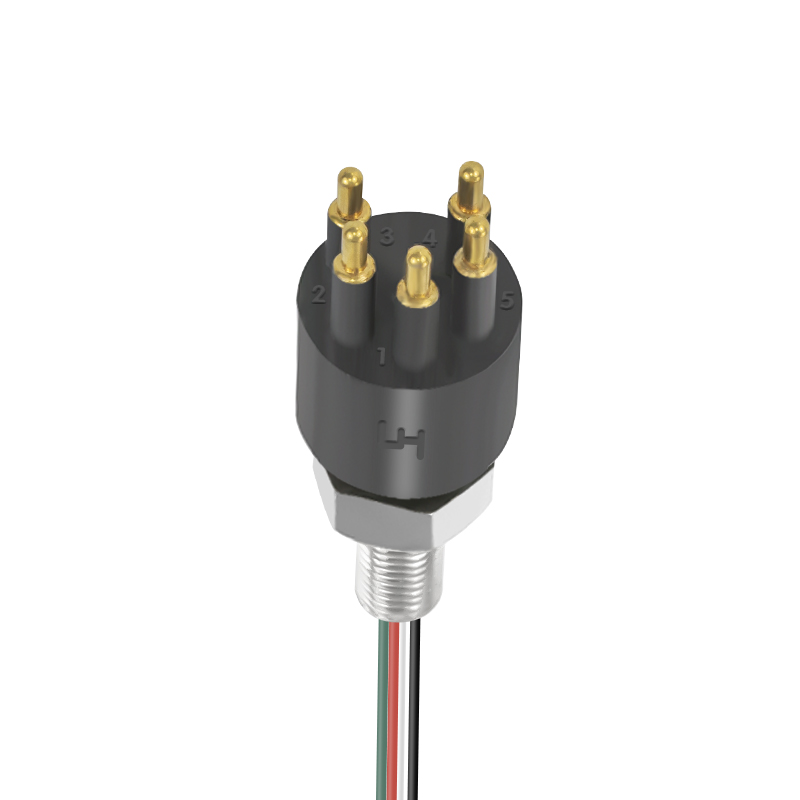

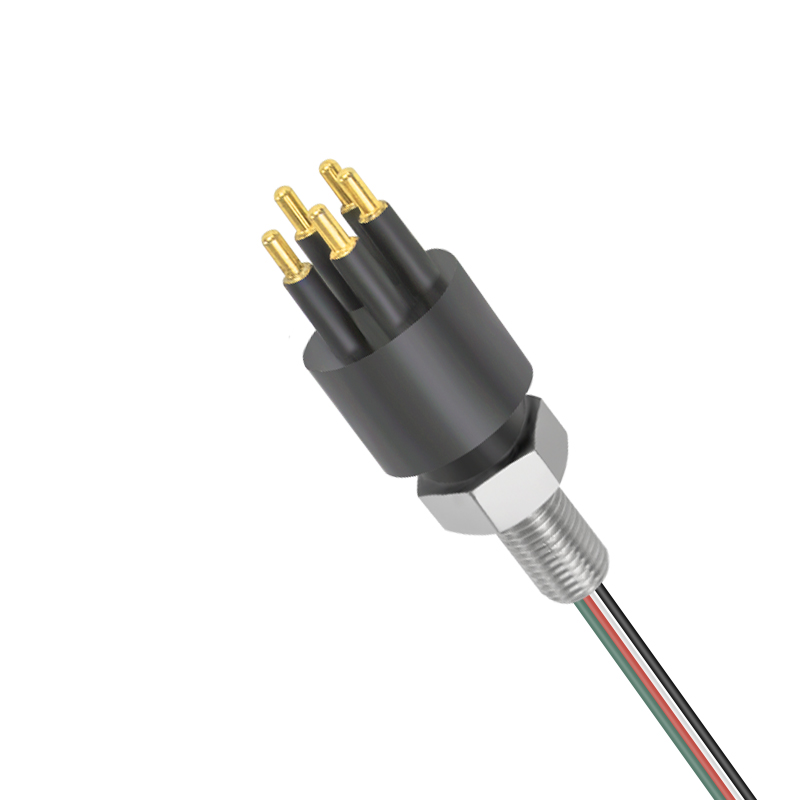

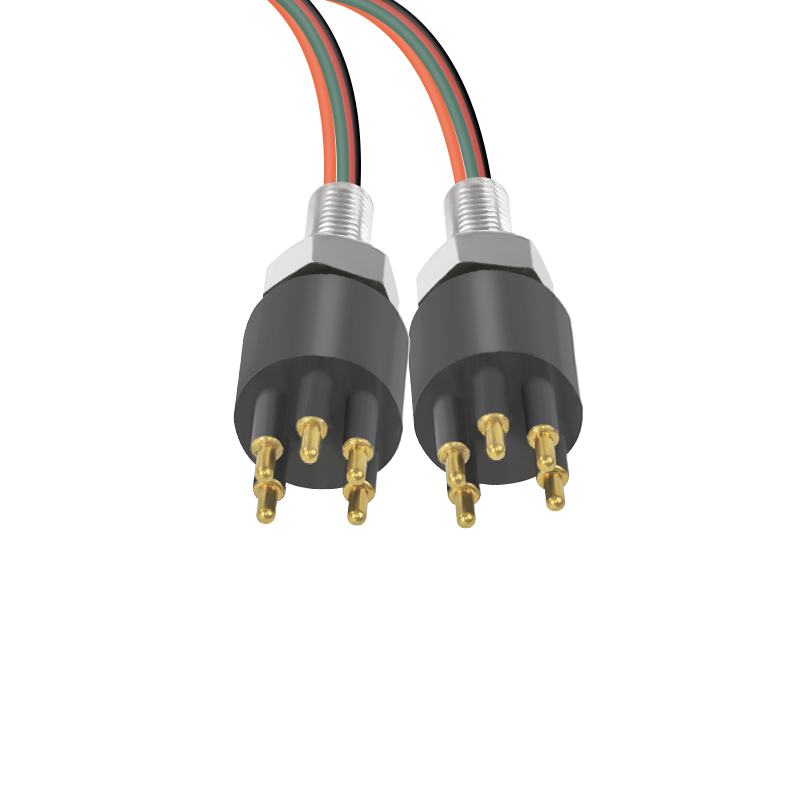

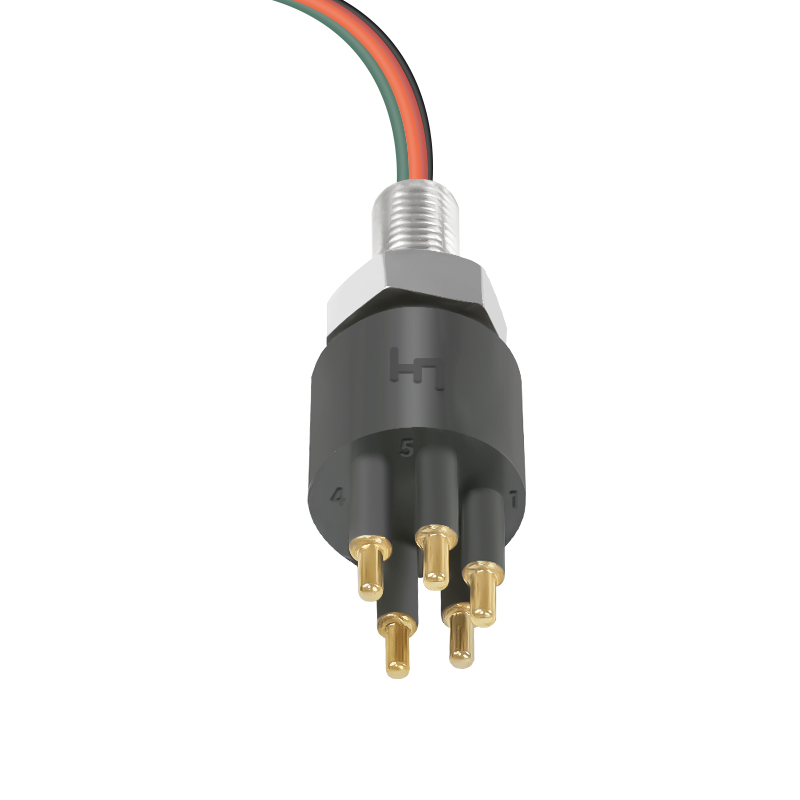

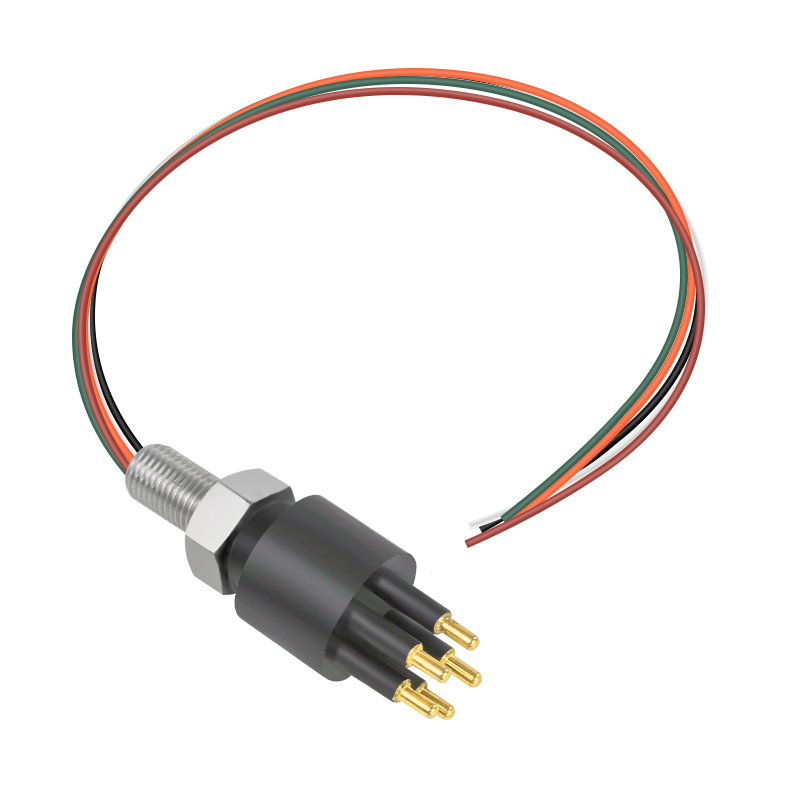

The BH5M is a 5-pin deepsea bulkhead underwater connector designed for subsea ROVs, sensor equipment, and other marine systems. Rated for 10,000 PSI and IP68 waterproof, it provides secure, reliable electrical connections for harsh underwater environments.
The BH5M is a 5-pin deepsea bulkhead waterproof connector designed for subsea applications such as ROVs, sensor equipment, and underwater systems. This Seacon-compatible connector is rated for up to 10,000 PSI (approx. 689 Bar) and features an IP68 waterproof rating, making it ideal for deepsea and high-pressure environments. Made with high-quality materials, it offers durable, corrosion-resistant performance in marine conditions. This connector supports both AC and DC interfaces, providing secure and reliable connections for subsea power and signal transmission.
Brand: HYSF
Model Number: BH5M
Type: 5 Pin Deepsea Waterproof Bulkhead Connector
Pins: 5 Pins
Shape: Standard Round
Waterproof Rating: IP68
Mated Pressure Rating: Up to 10,000 PSI / 689 Bar
Interface Type: AC/DC
Housing Material: Marine-grade Plastic or Optional Metal Alloy
Contact Material: Gold Plated Brass
Gender: Male (Mating with Female counterpart)
Certification: ISO9001-2015
Application Range: Subsea ROVs, Oceanographic Sensors, Underwater Equipment, Marine Instruments
Custom Processing: Supported (Pin layout, housing materials, cable length)
Place of Origin: China
