HYSF BRANCH-1TO14 is a custom 1-to-14 branched watertight cable assembly for international clients. Single main cable splits to 14 micro 3-pin female connectors, IP68-rated, 60 MPa tested, ideal for ROV multi-tool arrays, AUV sensor clusters, and deepsea parallel distribution up to 6000m.

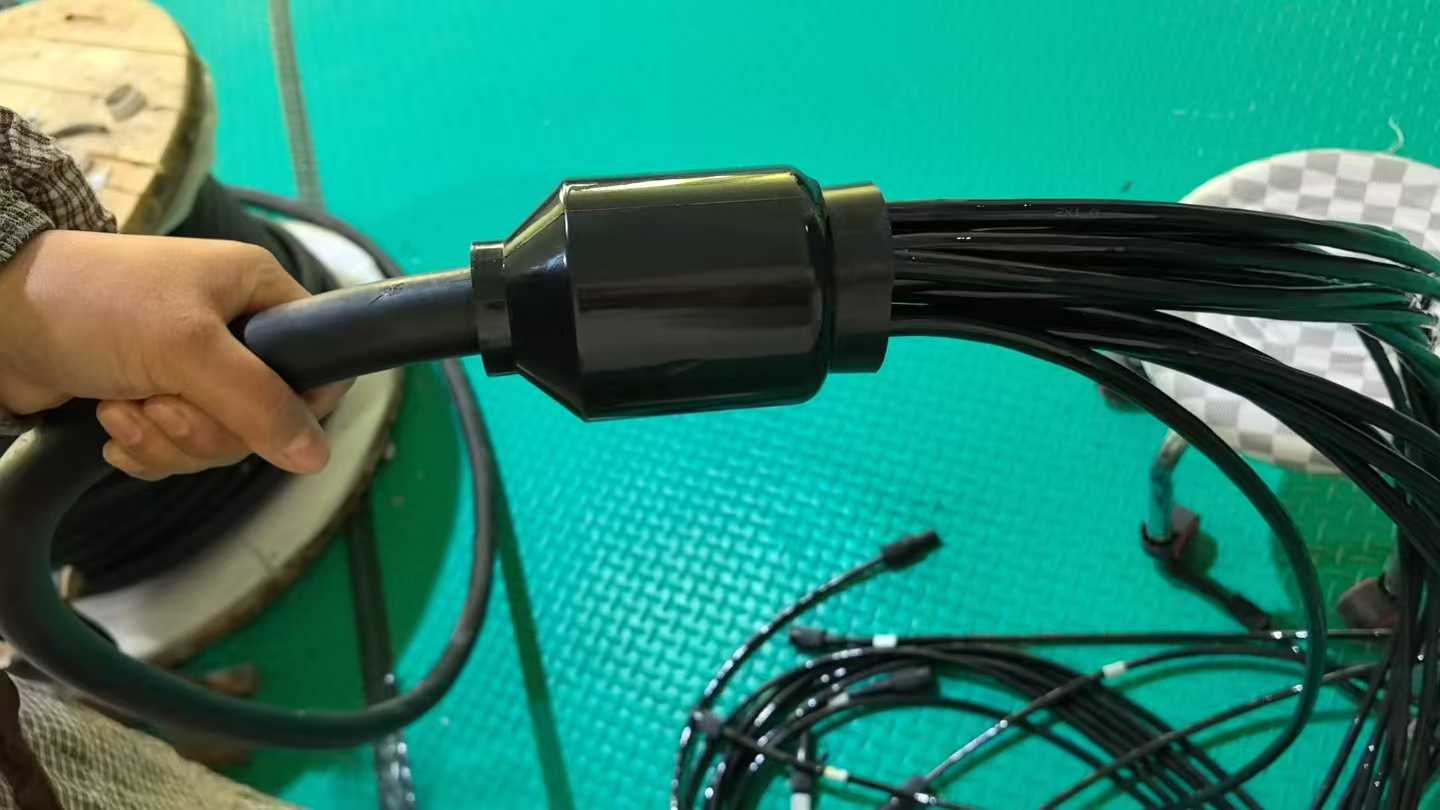

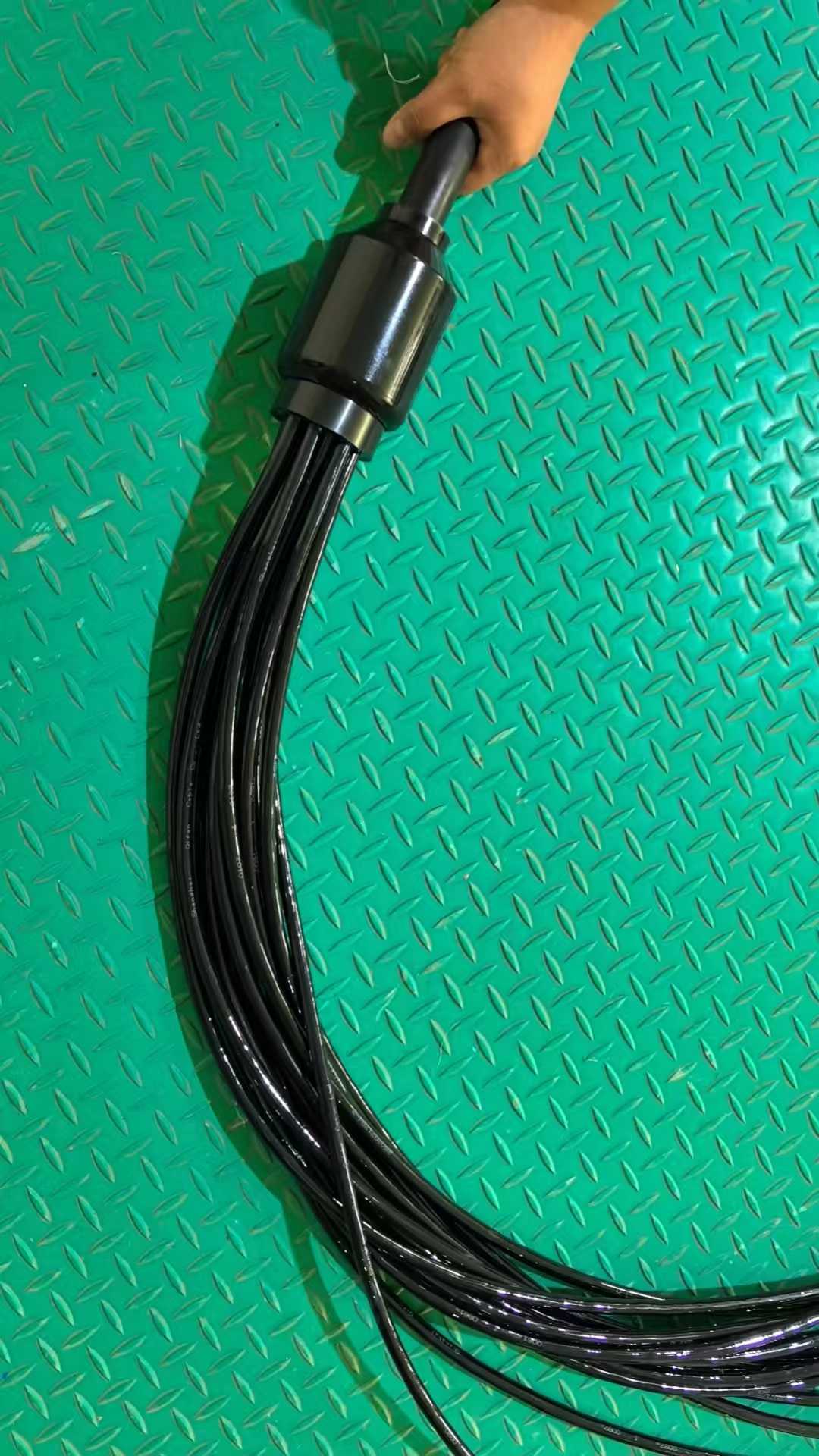

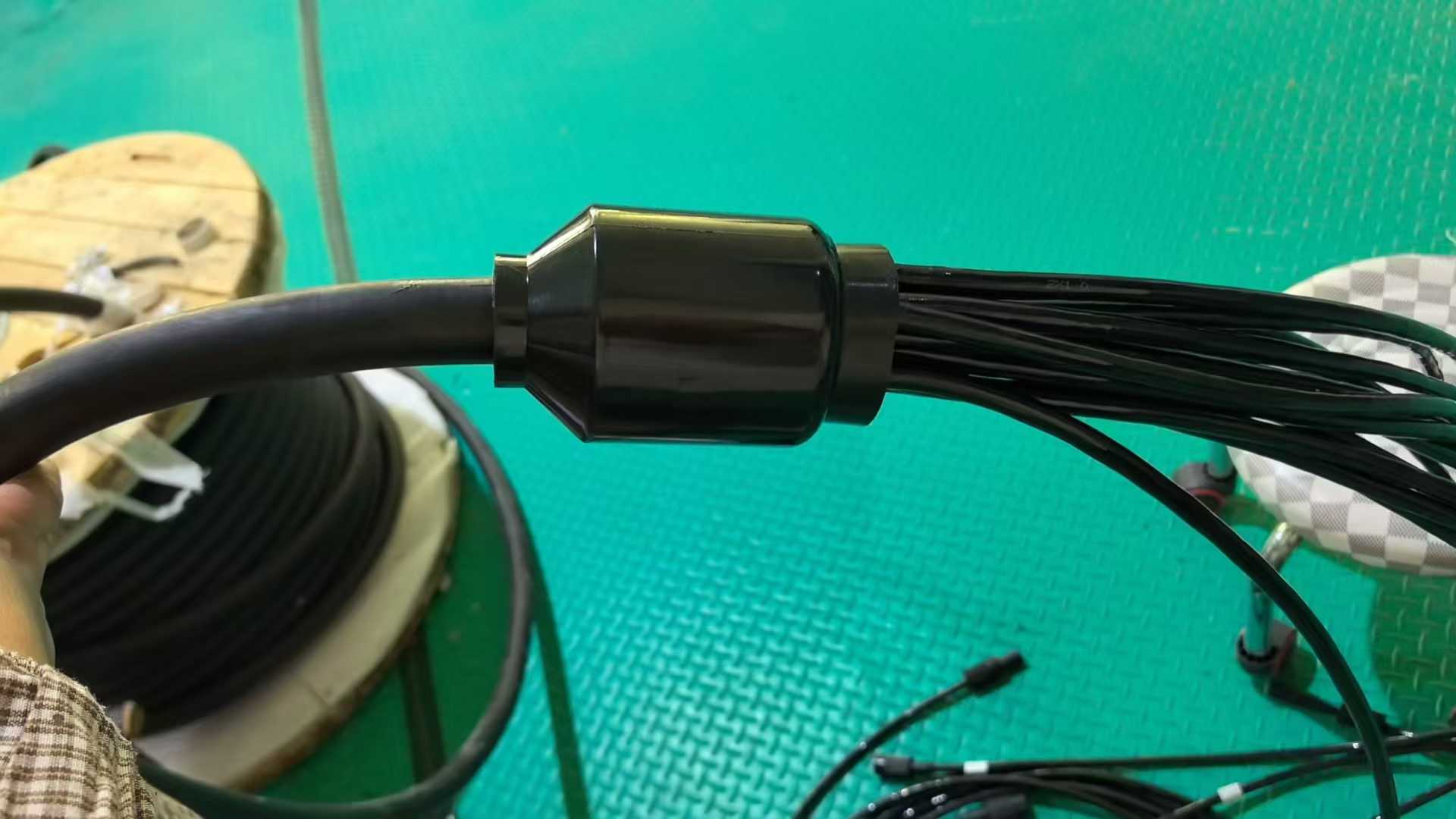

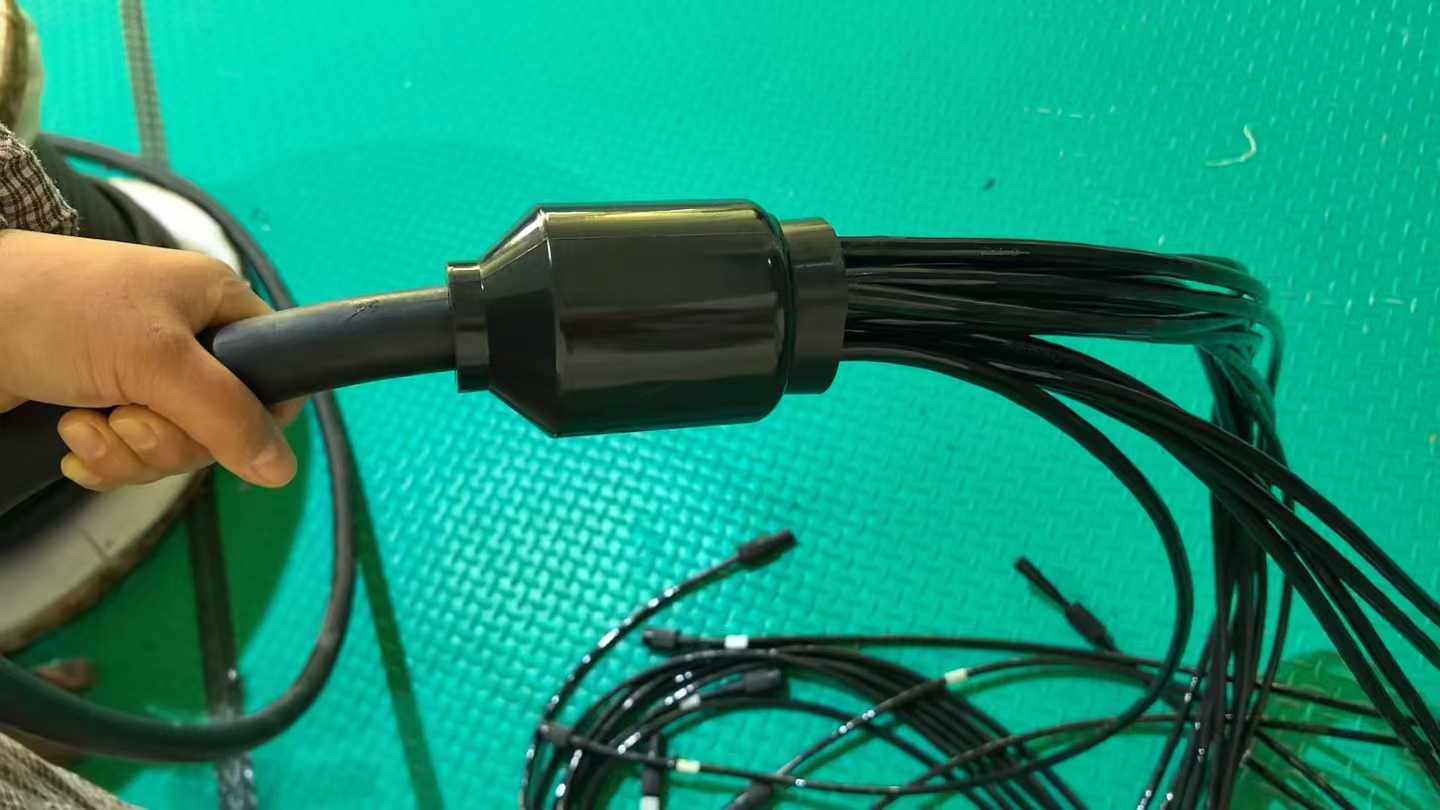

The HYSF BRANCH-1TO14 is a **successfully customized 1-to-14 split watertight cable harness** developed for international clients requiring high-density parallel connectivity. A single robust main cable (PU-jacketed, 10 mm Ø) branches into **14 independent micro 3-pin female connectors**, each with gold-plated contacts for reliable power/signal distribution—perfect for ROV manipulator arms with multiple end-effectors, AUV sensor constellations, or subsea LED lighting arrays.
Each micro female is overmolded in **compact PU** (Ø12 mm) with **triple O-ring sealing** for IP68 waterproofing and **60 MPa (8702 PSI / ~6000 m depth)** pressure resistance. Branches are color-coded and labeled for easy identification, with strain relief and optional quick-disconnect tethers. The main cable terminates in a standard MCBH bulkhead or inline male for seamless system integration.
This high-branch-count harness was engineered to minimize cable clutter while maximizing deployment flexibility. HYSF provides full customization in branch length (0.5–2 m each), pin mapping, current rating, and connector type. ISO9001-2015 certified and rigorously tested for offshore and scientific applications.
Model: BRANCH-1TO14
Brand: HYSF
Type: Custom 1-to-14 Split Watertight Cable Harness
Configuration: 1 Main Cable → 14 Micro 3-Pin Female Branches
Main Cable: PU-Jacketed, 10 mm Ø, Custom Length
Branch Cables: PU Overmolded, 0.5–2 m Each
Connectors: 14x Micro 3-Pin Female (Gold-Plated Brass)
Current Rating: 5A per Pin (15A per Branch)
Voltage Rating: 300V AC/DC
Sealing: Triple O-Ring per Connector
Waterproof Rating: IP68
Mated Pressure Rating: 60 MPa (8702 PSI / ~6000 m)
Depth Rating: Up to 6000m+
Operating Temperature: -20°C to 80°C
Interface Type: Mixed Power/Signal per Branch
Application: ROV Multi-Tool Arrays, AUV Sensor Clusters, Subsea Parallel Distribution, Deepsea Lighting
Certification: ISO9001-2015
Customization: Branch count/length, pin mapping, main termination, labeling/tethers
Features: Color-Coded Branches, Strain Relief, Quick-Disconnect Options
Place of Origin: Guangdong, China
