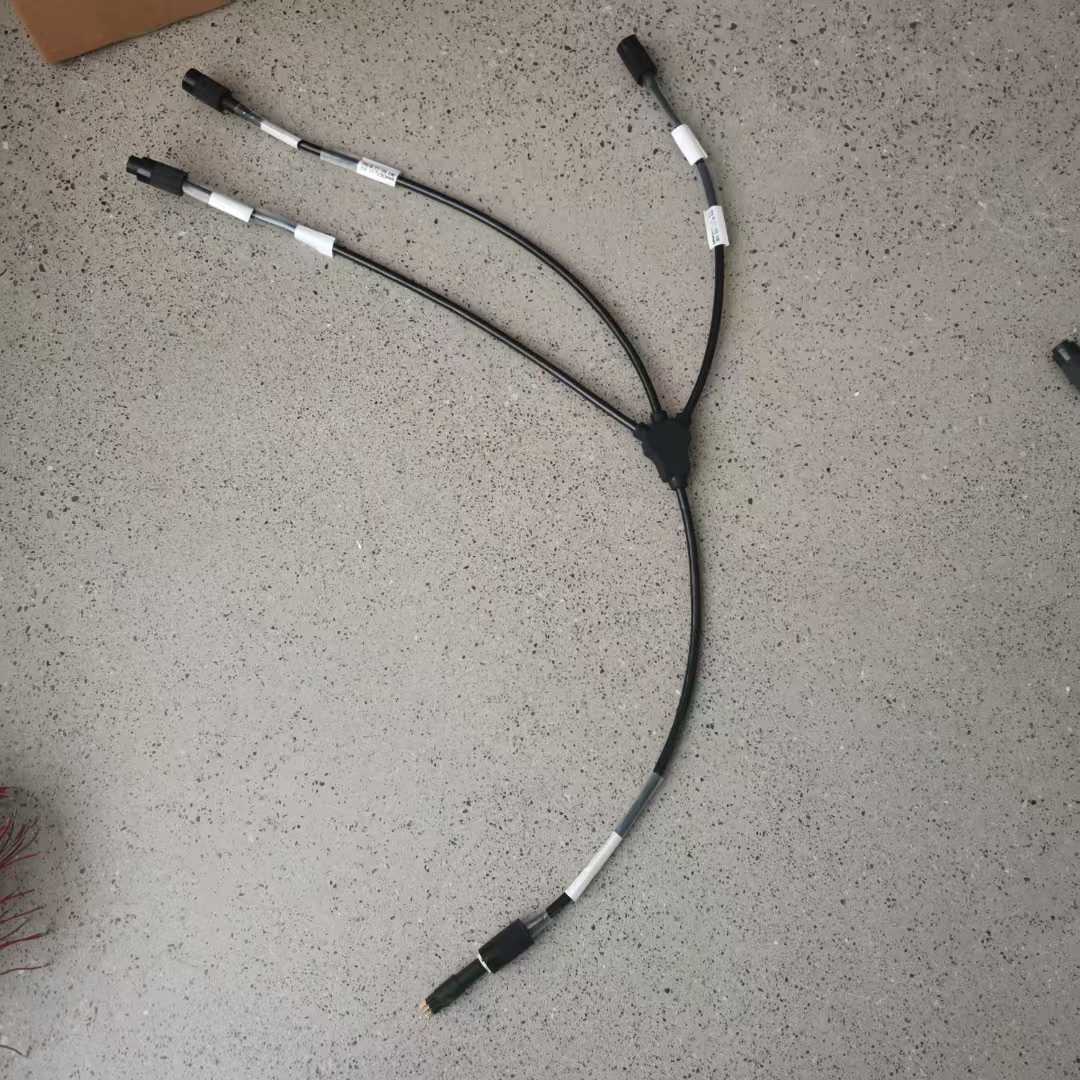

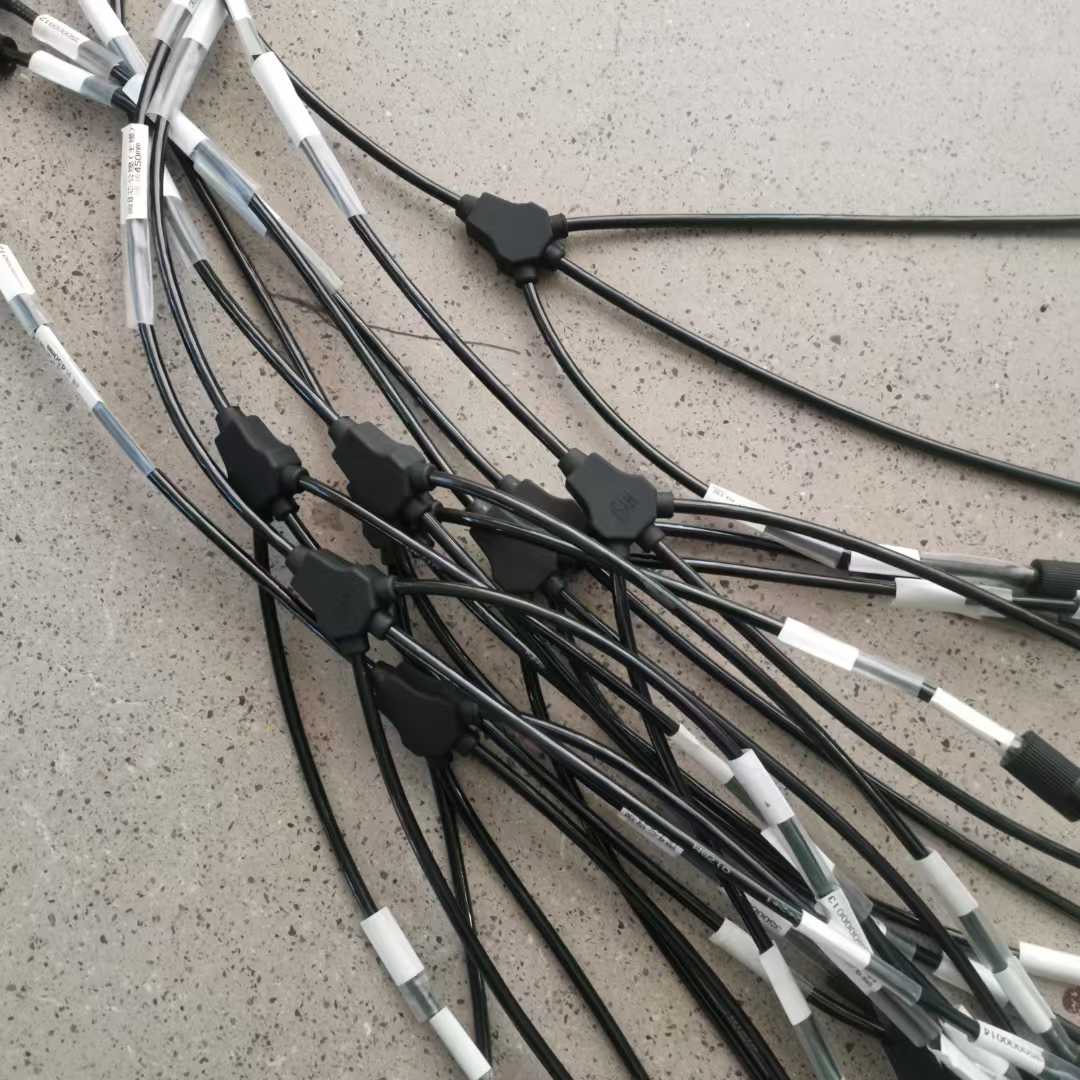

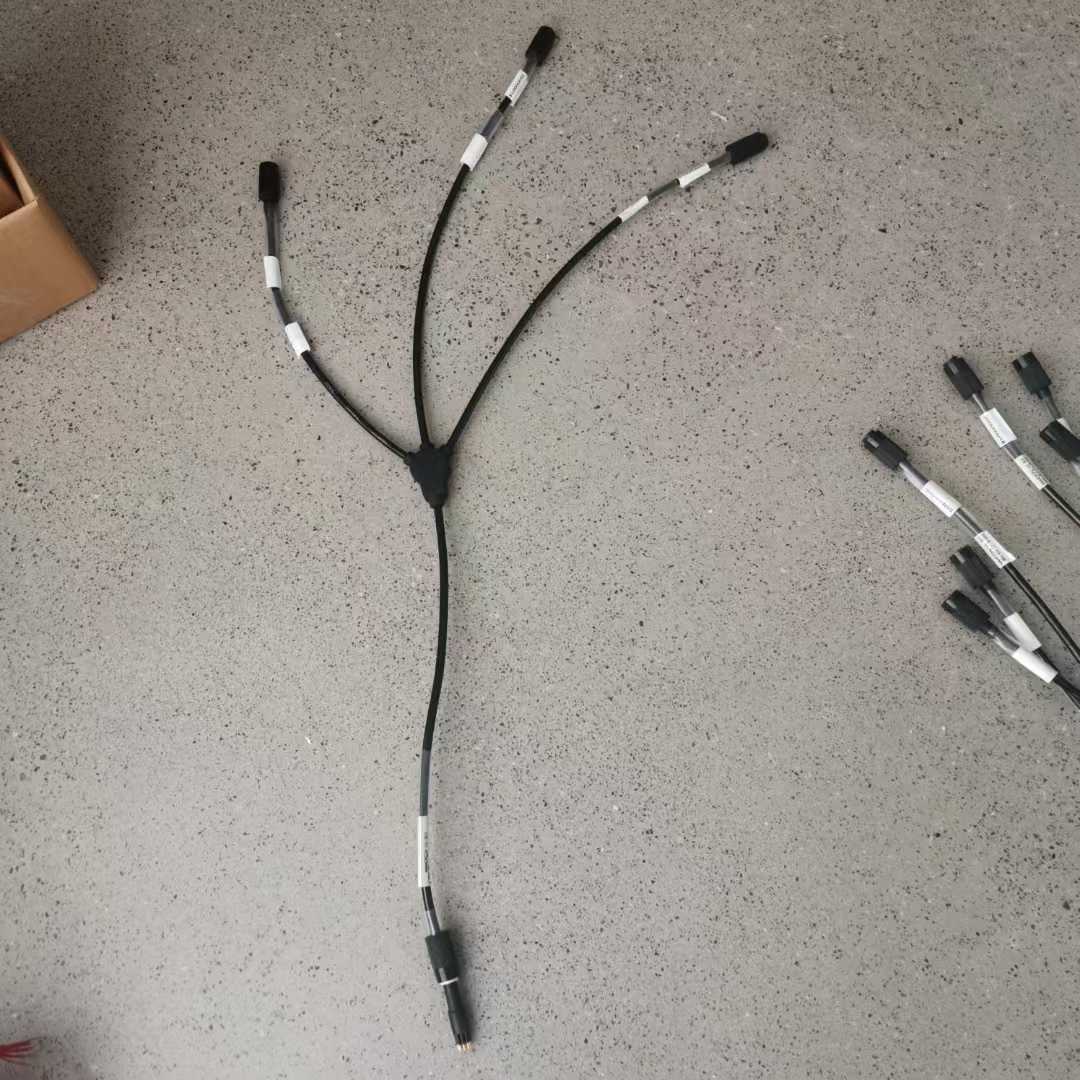

HYSF BRANCH-1TO3 Custom 1-to-3 Split Watertight Cable Assembly (PU Y-Split)

Product Description

The HYSF BRANCH-1TO3 is a **successfully customized 1-to-3 split watertight cable assembly** featuring a seamless **PU Y-junction overmold** that branches a single main cable into three independent outputs. Each leg terminates in a standard micro waterproof connector (e.g., 3-pin female), enabling clean signal/power distribution to multiple sensors, lights, or actuators—perfect for ROV tool skids, AUV payload bays, and subsea control modules.

The **rigid PU Y-split** provides 360° strain relief and full **IP68 sealing** with **epoxy-potted internals**, ensuring zero water ingress even under flexing. Rated to **60 MPa (8702 PSI / ~6000 m depth)**, with color-coded heat-shrink labels and optional serial numbering for field identification. The main cable is heavy-duty PU-jacketed for abrasion resistance.

This Y-split harness was developed to reduce connector count and simplify underwater cabling. HYSF offers full customization in branch count (1-to-2 up to 1-to-6), leg length (0.3–2 m), connector type, and pin mapping. ISO9001-2015 certified and field-proven in commercial ROV operations.

Product Parameter

Model: BRANCH-1TO3

Brand: HYSF

Type: Custom 1-to-3 Split Watertight Cable Assembly

Configuration: 1 Main → 3 Branch Legs

Main Cable: PU-Jacketed, 8–10 mm Ø

Branch Legs: 0.3–2 m Each, PU Overmolded

Connectors: 3x Micro 3-Pin Female (Customizable)

Current Rating: 5A per Pin (15A per Leg)

Voltage Rating: 300V AC/DC

Sealing: Epoxy-Potted + PU Y-Split

Waterproof Rating: IP68

Mated Pressure Rating: 60 MPa (8702 PSI / ~6000 m)

Depth Rating: Up to 6000m+

Operating Temperature: -20°C to 80°C

Application: ROV Sensor Distribution, AUV Multi-Instrument, Subsea Junction Splitting

Certification: ISO9001-2015

Customization: Branch count/length, connector type, pin mapping, labeling, strain relief

Features: 360° Strain Relief, Color-Coded, Serial Numbered

Place of Origin: Guangdong, China
