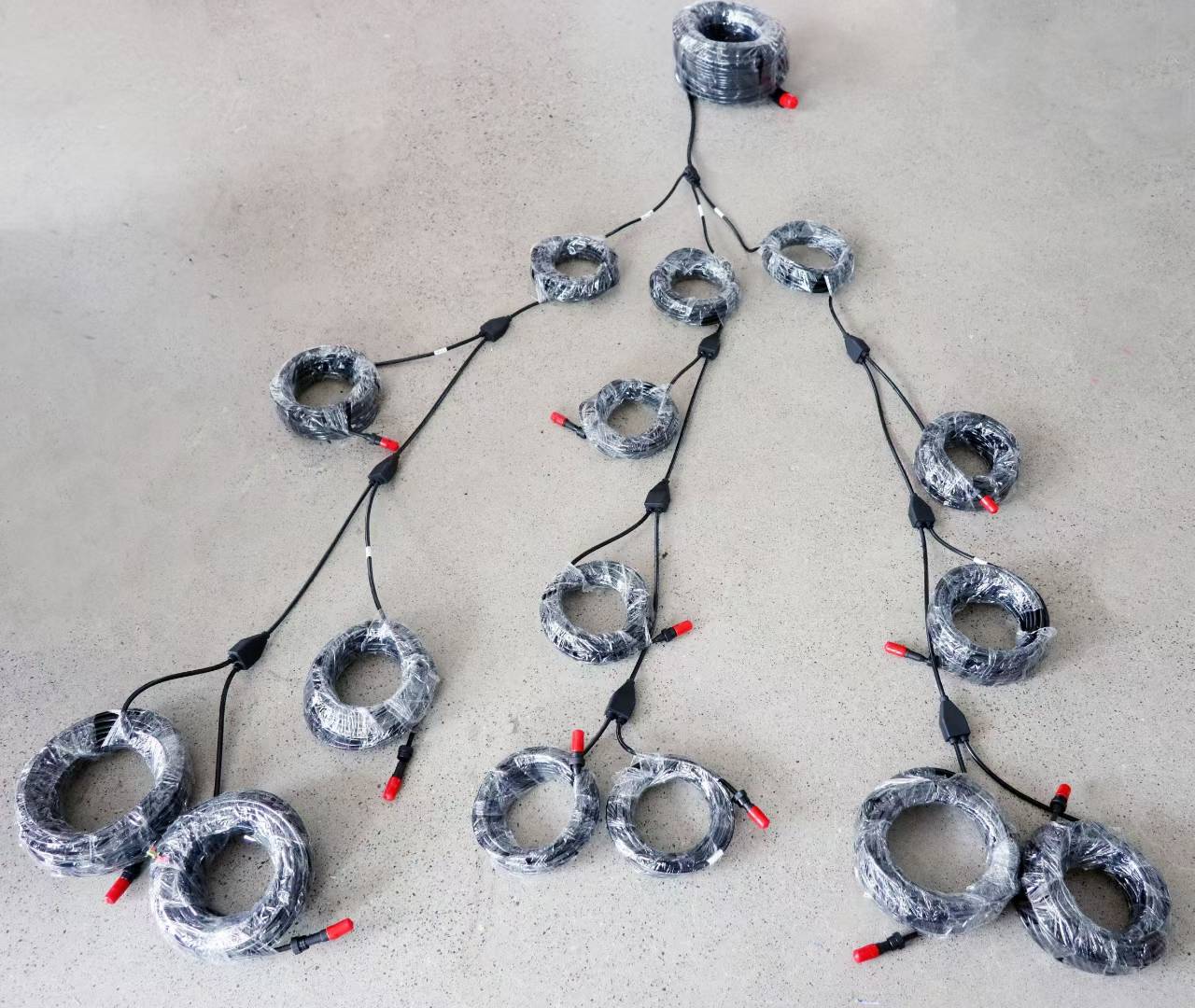

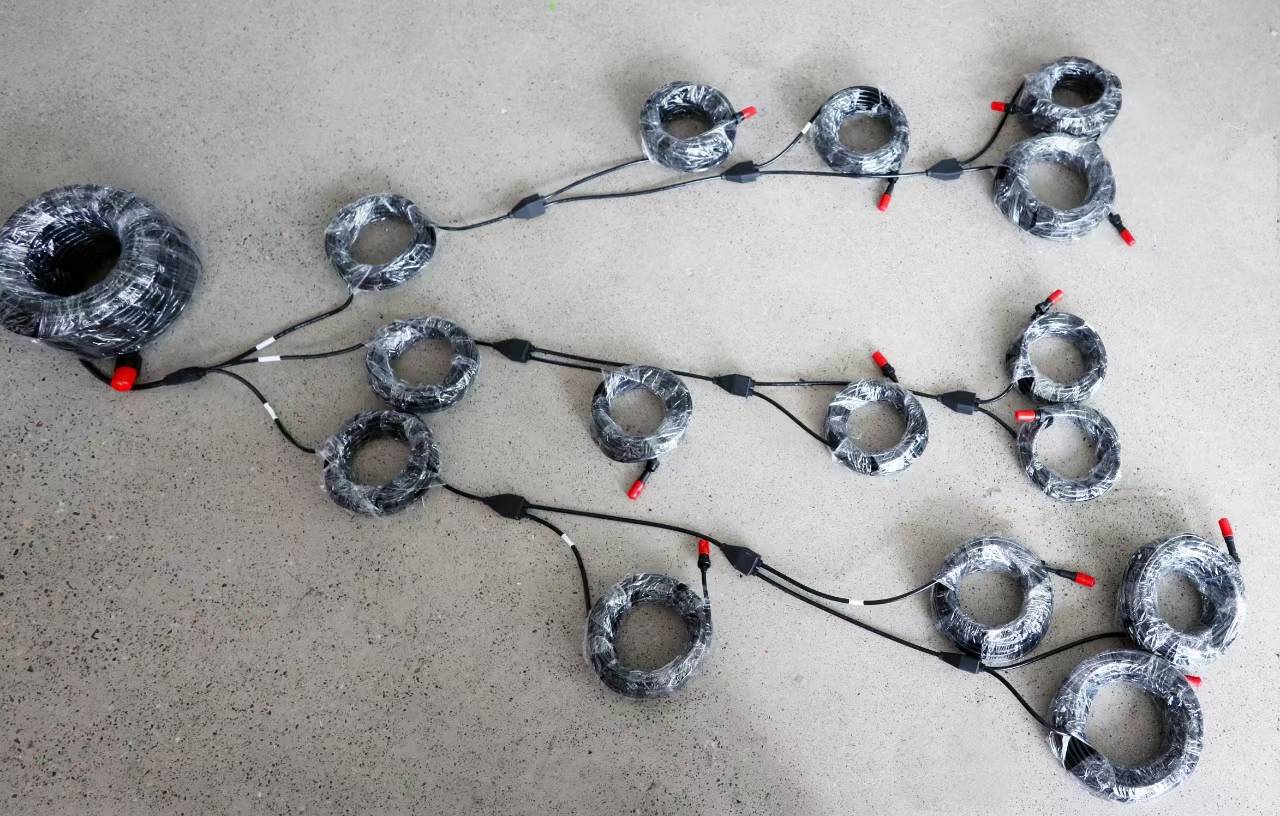

HYSF BRANCH-WCABLE Custom Branched Watertight Cable Assembly (Tree-Network Structure)

Product Description

The HYSF BRANCH-WCABLE is a **fully customized branched watertight cable assembly** engineered for complex subsea electrical distribution. Featuring a **tree or star network topology**, it enables one main trunk to split into multiple branches (1-to-2, 1-to-4, 1-to-8, etc.), each terminated with **MCBH-series waterproof connectors** for plug-and-play integration with sensors, lights, thrusters, and instruments.

Built with **double-jacketed polyurethane cable** (PU outer + inner insulation), each branch is overmolded with **IP68-rated Y/T splitters** for strain relief and full sealing. Gold-plated contacts support mixed power (up to 30A) and signal (RS485/Ethernet) transmission. Pressure-rated to **60 MPa (8702 PSI / ~6000 m depth)**, helium leak-tested, and color-coded with red dummy caps for easy field identification.

This scalable cable network reduces umbilical clutter and simplifies ROV/AUV wiring. HYSF provides **end-to-end customization**: branch count, length, pinout, power/signal mix, and labeling. ISO9001-2015 certified and proven in deepsea multi-node deployments.

Product Parameter

Model: BRANCH-WCABLE

Brand: HYSF

Type: Custom Branched Watertight Cable Harness (Tree/Star Topology)

Structure: 1-to-N Branching (2/4/6/8+ Branches)

Connectors: MCBH/MCIL Series (2–8 Pin per Branch)

Cable: Double-Jacketed Polyurethane (Black PU Outer)

Splitter: Overmolded PU Y/T Junction (IP68)

Pressure Rating: 60 MPa (8702 PSI / ~6000 m)

Waterproof Rating: IP68 (Mated & Unmated with Dummy Caps)

Current: Up to 30A per Branch (Power), 1A (Signal)

Voltage: 600V AC/DC

Interface: Power, RS485, Ethernet, CAN (Mixed Configurable)

Length: Custom per Branch (0.5m–50m)

Operating Temperature: -20°C to 80°C

Application: ROV Sensor Networks, AUV Distributed Power, Subsea Junction Trees, Deepsea Instrument Arrays

Certification: ISO9001-2015

Customization: Branch count, length, pin mapping, labeling, strain relief, dummy caps

Features: Color-Coded, Serial Numbered, Helium Leak-Tested

Place of Origin: Guangdong, China
