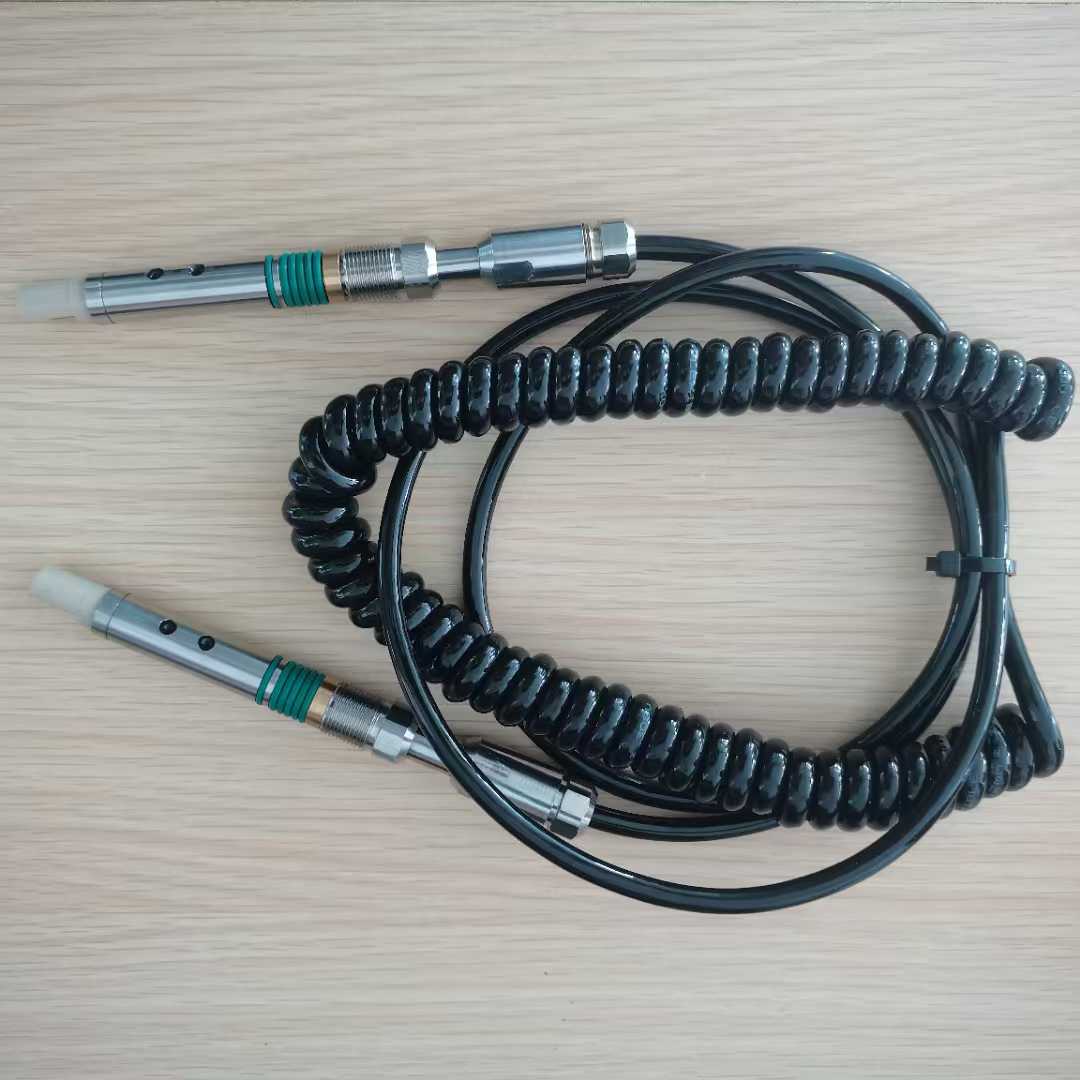

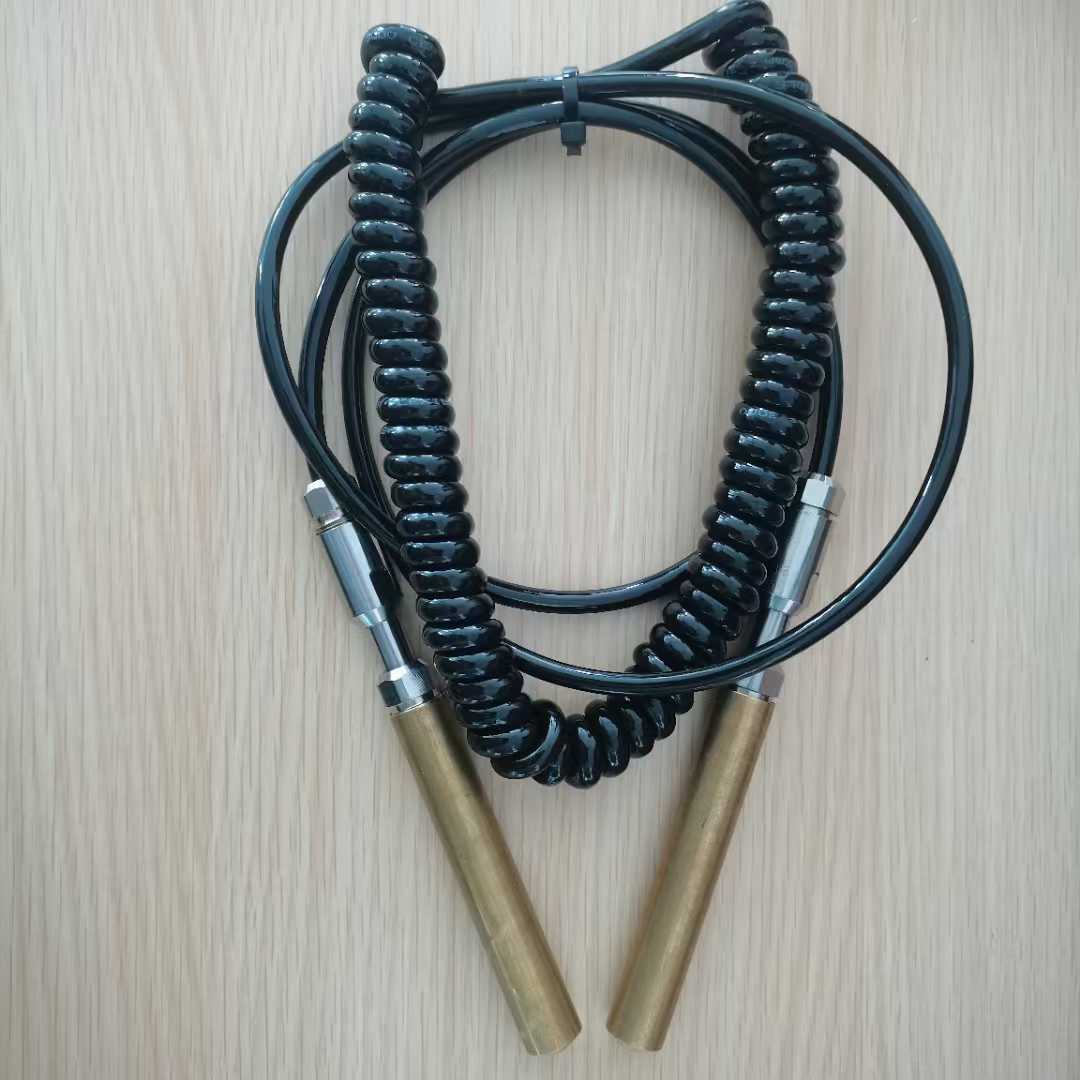

HYSF COIL-WP Custom Coiled Waterproof Plug Assembly (Brass Pins, PU Spiral Cable)

Product Description

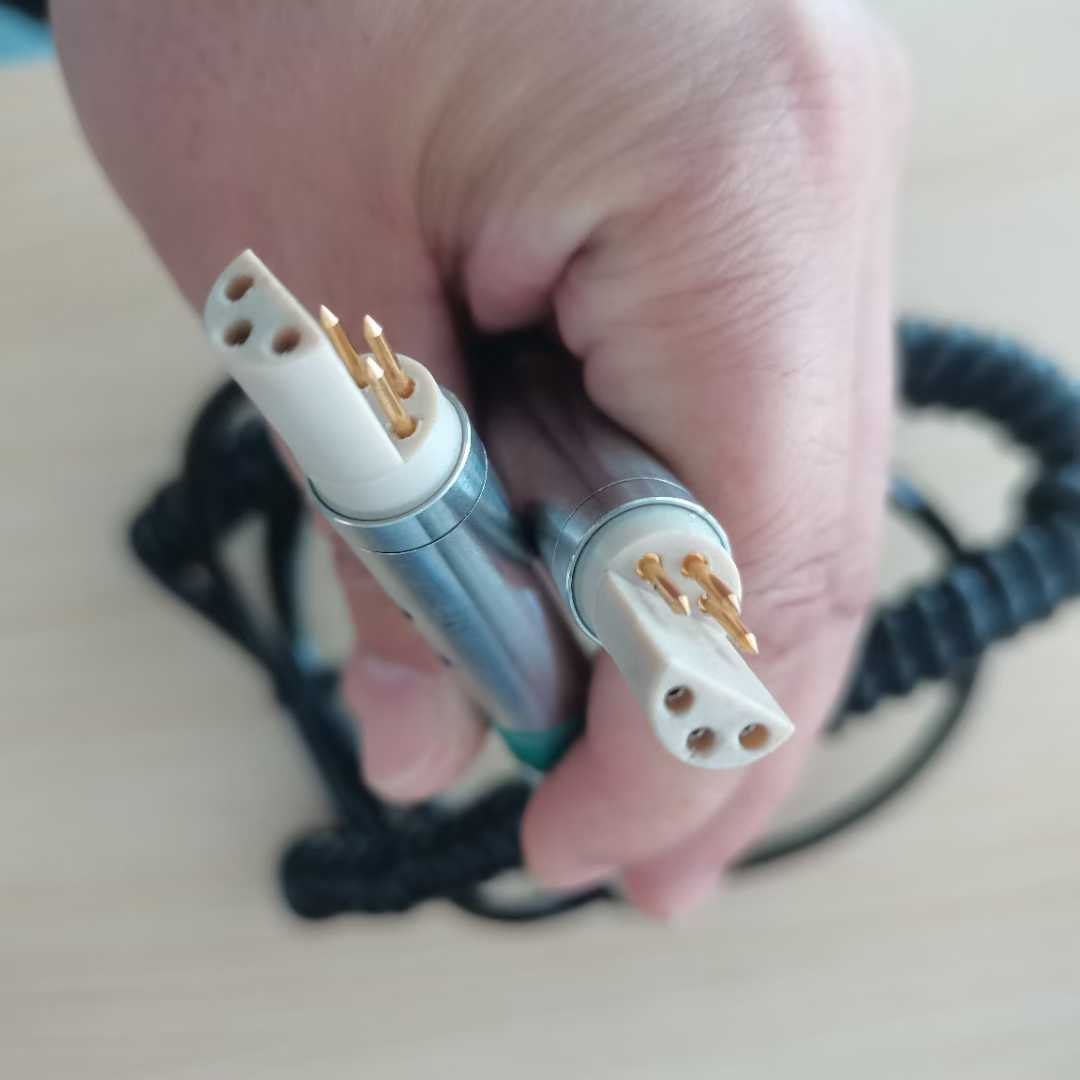

The HYSF COIL-WP is a **successfully customized coiled waterproof plug assembly** engineered for dynamic underwater applications requiring compact storage and extended reach. Featuring **dual brass pin connectors** (gold-plated for low resistance) overmolded in **black polyurethane (PU)**, it connects via a **high-elastic spiral cable** that extends 3–5 times its coiled length without kinking or fatigue.

The robust **PU spiral jacket** provides excellent abrasion, oil, and UV resistance while maintaining flexibility from -20°C to 80°C. Each end includes a **stainless steel coupling nut** and **double O-ring seal** for IP68 waterproofing under mated conditions. Pressure-rated to **30 MPa (4351 PSI / ~3000 m depth)**, with optional 60 MPa variants. The coiled design reduces snag risk and enables tidy ROV tool storage.

This retractable waterproof plug was developed for manipulator tools, portable sensors, and diver-held devices. HYSF offers full customization in pin count (1–8), coil length (0.5–5 m relaxed), extension ratio, and connector style. ISO9001-2015 certified and field-proven in commercial diving operations.

Product Parameter

Model: COIL-WP

Brand: HYSF

Type: Custom Coiled Waterproof Plug Assembly

Connectors: Dual Brass Pin Plugs (Gold-Plated)

Cable: High-Elastic PU Spiral Jacket (Black)

Pin Count: 2 Standard (1–8 Custom)

Current Rating: 15A per Pin

Voltage Rating: 600V AC/DC

Sealing: Double O-Ring + PU Overmold

Coupling: Stainless Steel Threaded Nut

Coiled Length: 0.5–2 m (Relaxed)

Extended Length: 3–5x Coiled (1.5–10 m)

Pressure Rating: 30 MPa (4351 PSI / ~3000 m)

Waterproof Rating: IP68 (Mated)

Operating Temperature: -20°C to 80°C

Application: ROV Manipulator Tools, Diver Instruments, Retractable Sensors, Subsea Tooling

Certification: ISO9001-2015

Customization: Pin count, coil/extension length, connector type, strain relief, labeling

Features: 3–5x Elastic Extension, Anti-Kink Spiral, Compact Storage

Place of Origin: Guangdong, China
