HYSF CR-PENETRATOR Series is a custom range of neoprene bulkhead penetrators in various models (2–12 pins). Chloroprene rubber (CR) construction for corrosion resistance, rated to 70 MPa (10,152 PSI), ideal for ROV housings, AUV sensors, and deepsea custom structures up to 7000m.
The HYSF CR-PENETRATOR Series offers a versatile lineup of **custom neoprene bulkhead penetrators** designed for demanding subsea environments. Available in multiple models (e.g., 2-pin power, 4-pin signal, 8-pin mixed, 12-pin high-density), each features **chloroprene rubber (CR) overmolding** for exceptional corrosion resistance, flexibility, and chemical durability in saltwater and oil-contaminated waters.
Precision-machined from **316L stainless steel** with **gold-plated contacts** and **triple O-ring sealing**, these penetrators withstand **70 MPa (10,152 PSI / ~7000 m depth)** while enabling reliable electrical feed-through. Color-coded flying leads (red/blue/yellow/white) are pre-stripped for easy integration. The CR material provides superior abrasion resistance and low-temperature performance compared to standard PU.
This series was developed to support **structural customization** for unique housing geometries and pin requirements. HYSF engineers each model to exact specs, including flange shape, thread type, and current ratings. ISO9001-2015 certified and hyperbaric-tested for extreme deepsea use.
Model: CR-PENETRATOR Series
Brand: HYSF
Type: Custom Neoprene Bulkhead Penetrators (Multi-Model)

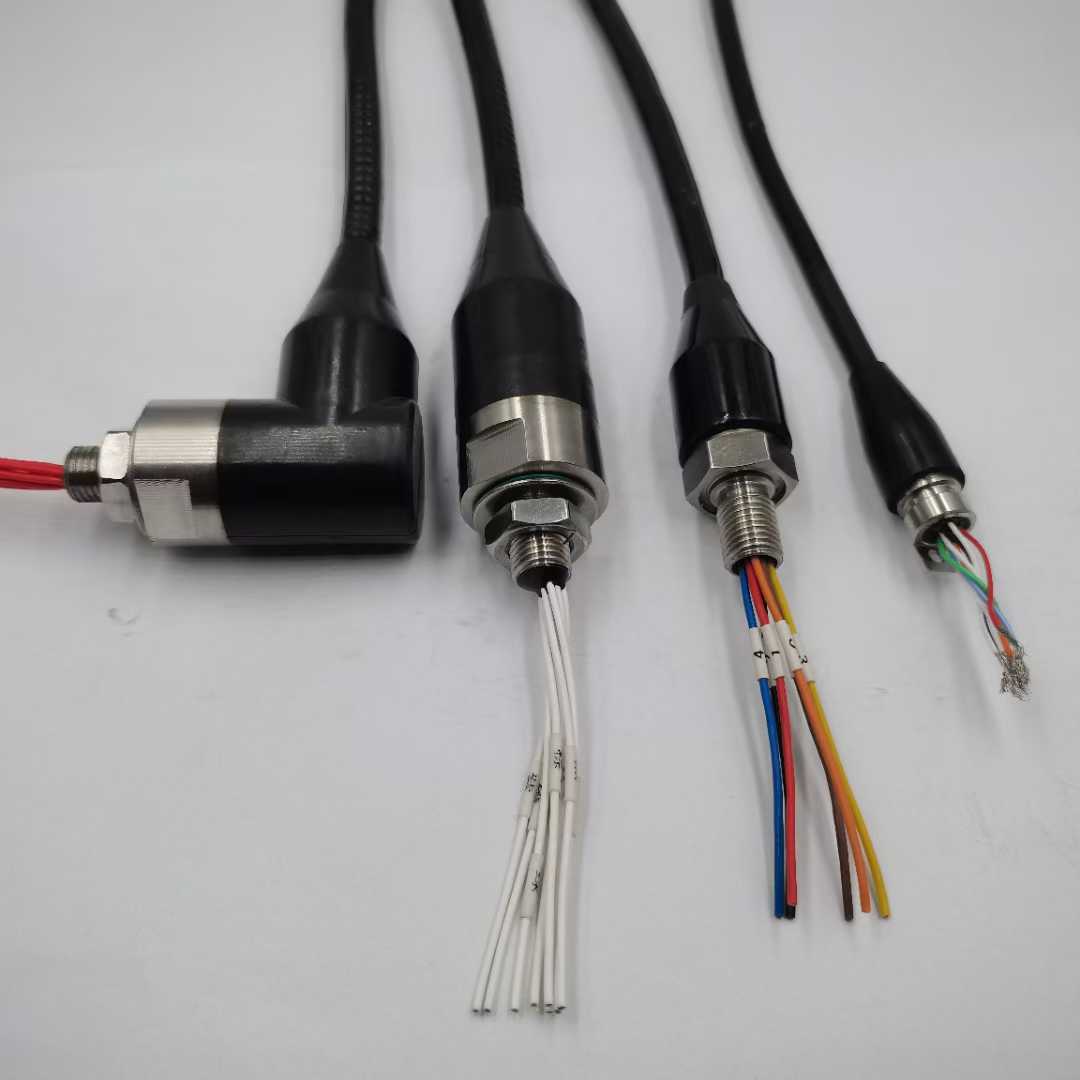

Models: 2-Pin (Power), 4-Pin (Signal), 8-Pin (Mixed), 12-Pin (High-Density)
Material: Chloroprene Rubber (CR) Overmold + 316L SS Body
Pins: 2–12 (Gold-plated Brass)
Current Rating: 5–20A per Pin (Model-Specific)
Voltage Rating: 600V AC/DC
Sealing: Triple O-Ring + Epoxy Potting
Mounting: Custom Flange/Thread (M10–M20)
Leads: Color-Coded PTFE, Pre-Stripped & Labeled
Pressure Rating: 70 MPa (10,152 PSI / ~7000 m)
Waterproof Rating: IP68
Corrosion Resistance: Excellent (CR Material)
Operating Temperature: -30°C to 90°C
Application: ROV Pressure Housings, AUV Sensor Pods, Deepsea Custom Structures, Subsea Junctions
Certification: ISO9001-2015
Customization: Model/pin count, structure/flange, current, lead length, corrosion coatings
Features: Abrasion-Resistant CR, Hyperbaric Tested, Structural Adaptability
Place of Origin: Guangdong, China
