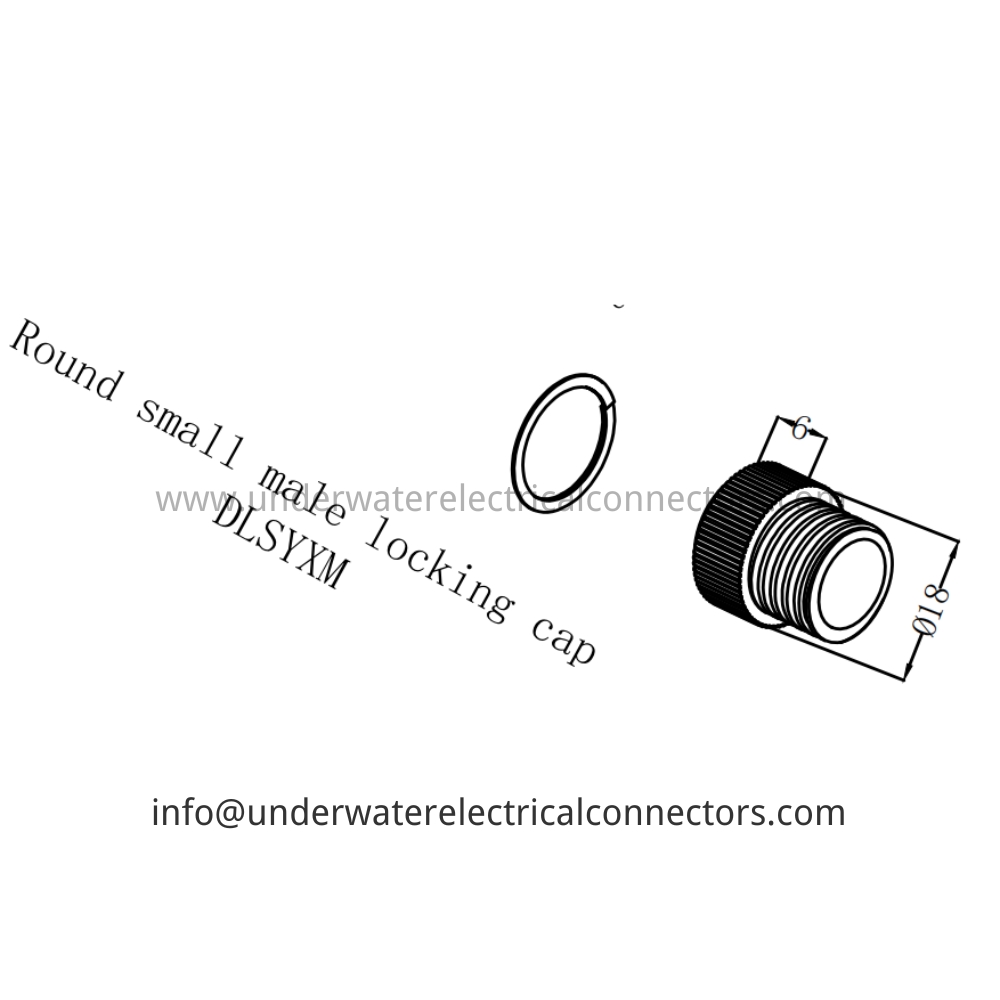

HYSF DLSYXM is a compact round male locking dummy cap with delrin body. IP68 rated, 60 MPa tested, dedicated for protecting unused female round ports on ultra-small series connectors in micro-ROVs, miniature AUVs and compact deepsea systems up to 6000 m.
The HYSF DLSYXM is a dedicated male locking dummy cap that fully seals and protects open female round ultra-small receptacles from seawater intrusion, biofouling and mechanical damage. Its black delrin body with protruding dummy pins and threaded locking sleeve creates a complete pressure-tight mechanical barrier with no electrical connection.
Precision-molded from high-strength, UV-resistant delrin (POM) with integrated O-ring seal and captive threaded locking ring. The knurled grip enables easy hand-installation even with thick gloves.
Critical for safeguarding ultra-small round connector ports when temporarily unmated, preventing contamination in harsh subsea environments. ISO9001-2015 certified with 100 MPa burst rating.
Model: DLSYXM
Brand: HYSF
Type: Round Small Male Locking Dummy Cap
Gender: Male (Non-Electrical)
Contact: Dummy Pins (Sealing Only)
Housing Material: Delrin (POM) + Stainless Thread
Sealing: Single O-Ring + Face Seal
Body Diameter: 18 mm
Total Length: 18 mm (approx)
Locking: Threaded Sleeve
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Ultra-Small Round Female Port Protection, Dummy Cap for SFCX Series, Micro-ROV Port Sealing
Certification: ISO9001-2015
Compatibility: SFCXILxF Female Ports
Place of Origin: Guangdong, China
