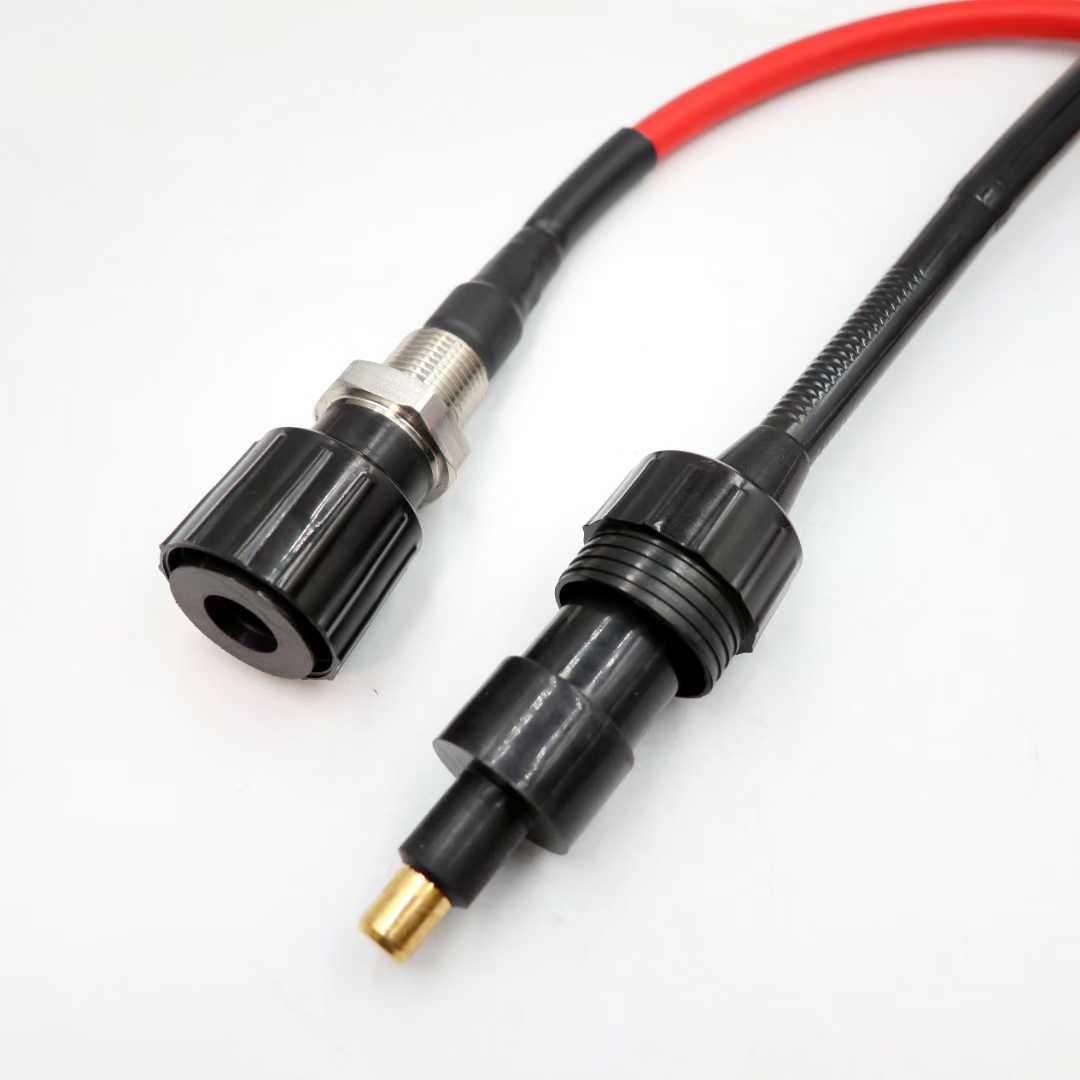

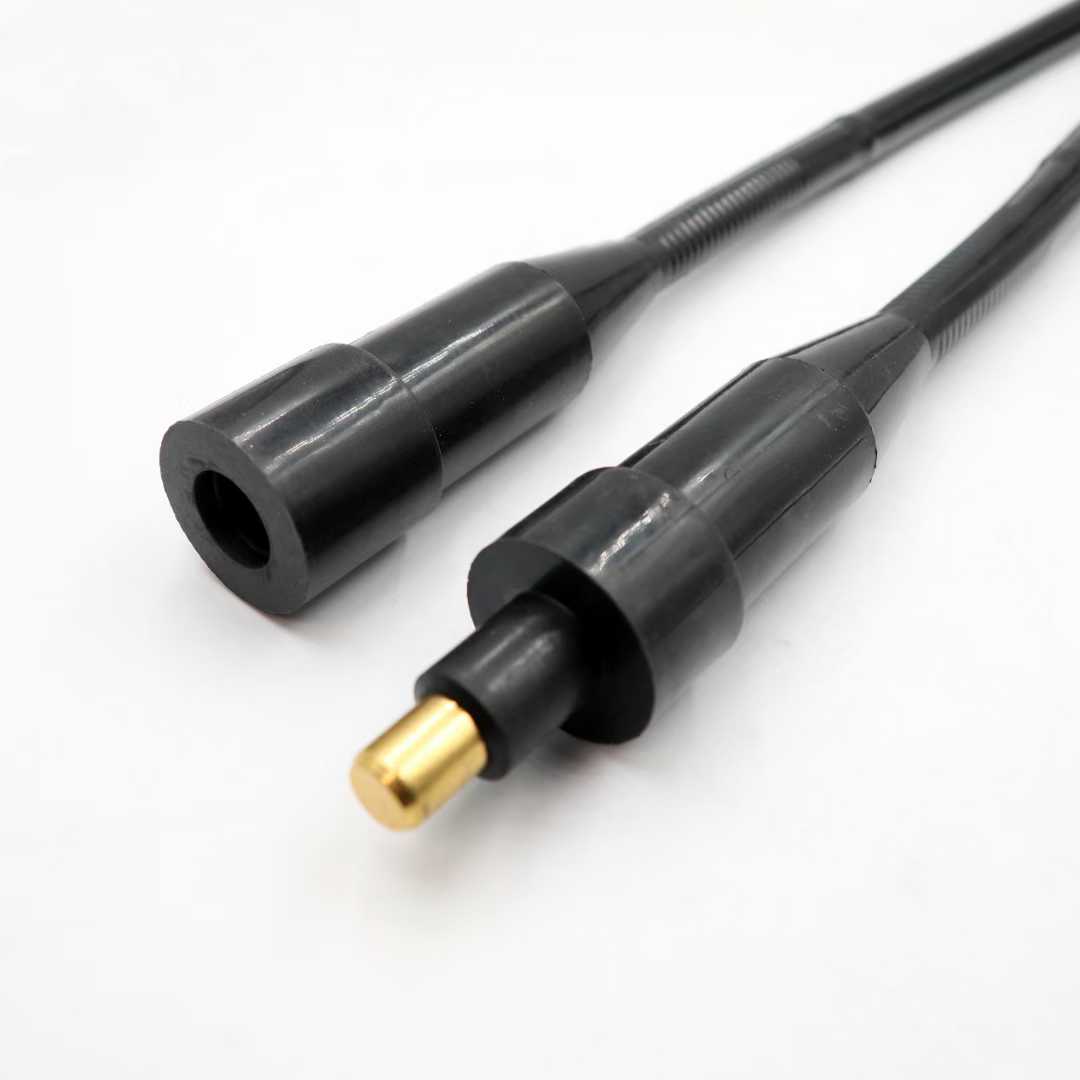

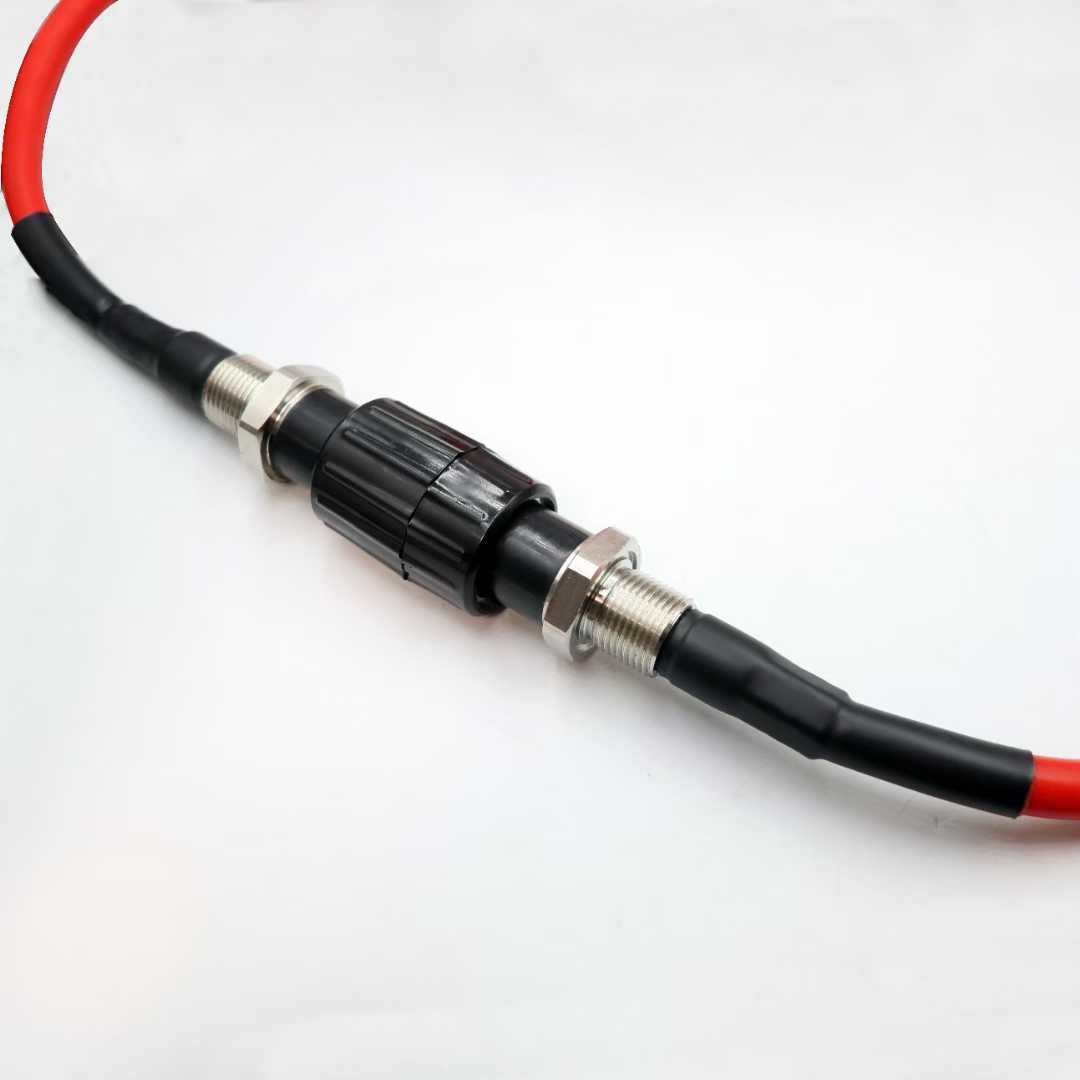

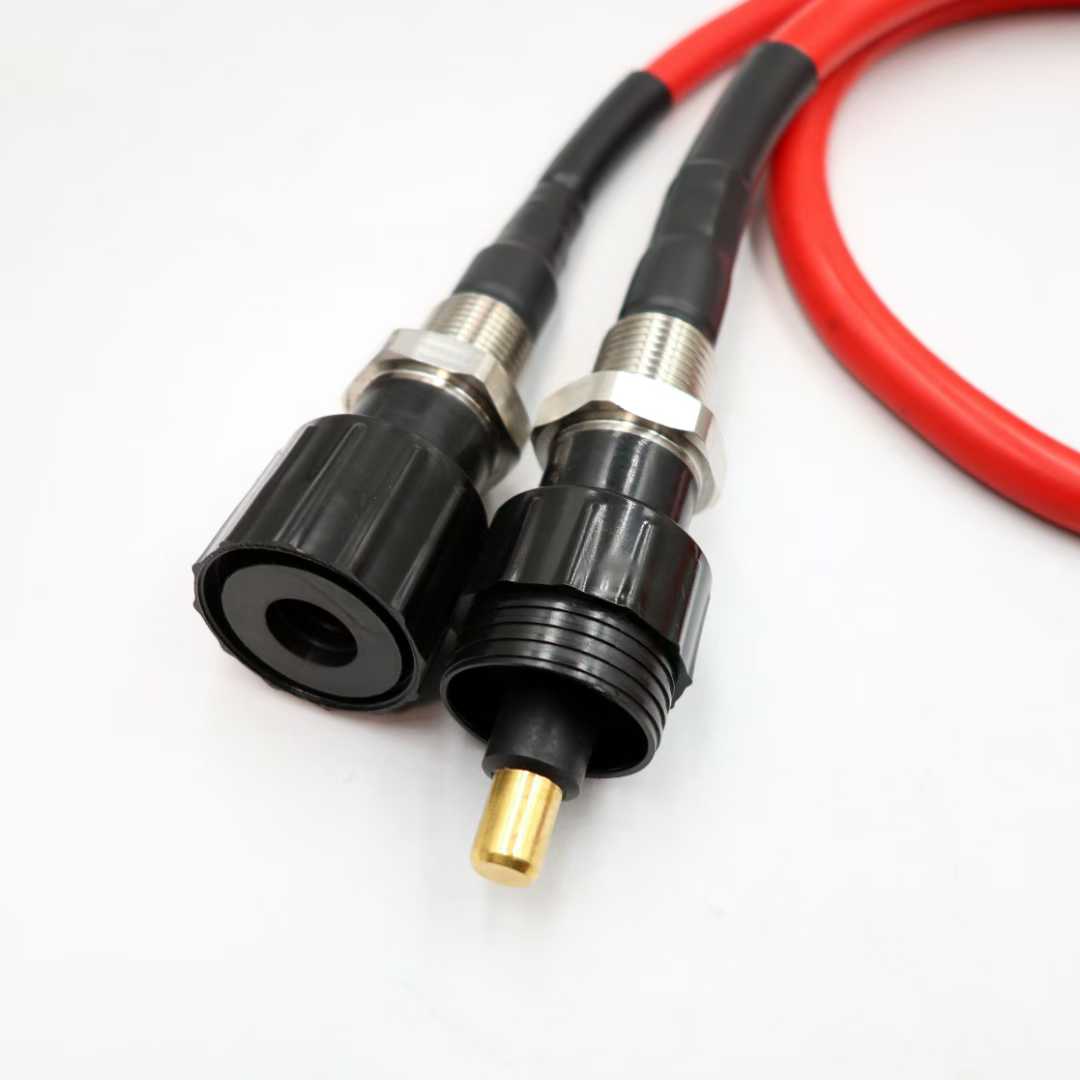

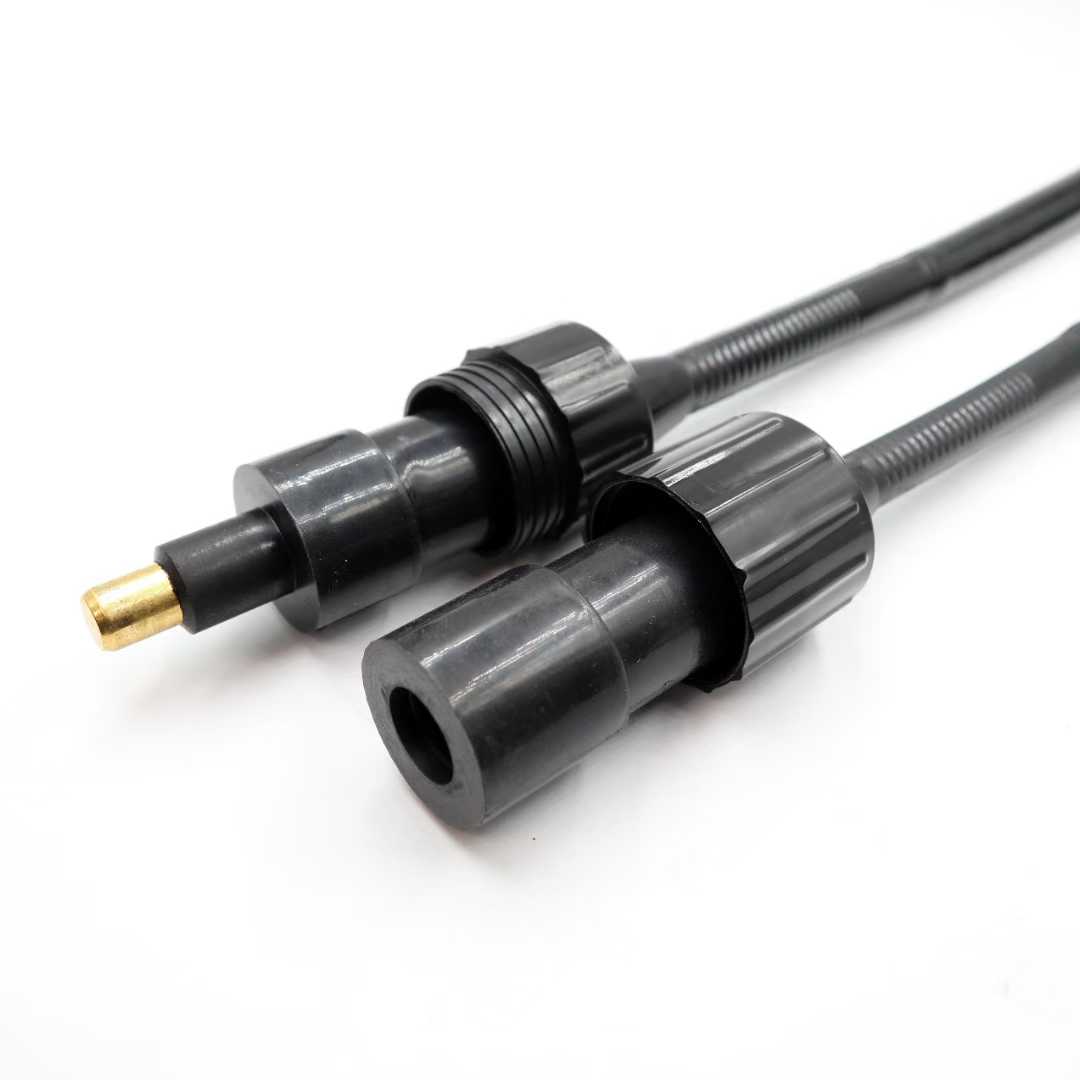

HYSF HCP-1P-150A Single-Pin High-Current Underwater Connector (150A Rating)

Product Description

The HYSF HCP-1P-150A is a successfully customized **single-pin high-current underwater connector** engineered for extreme power demands in subsea environments. Featuring a **massive gold-plated copper contact** capable of 150A continuous current, it's optimized for applications requiring massive power delivery like underwater arc welding, high-torque ROV thrusters, and industrial subsea actuators.

Built with **thick-walled stainless steel housing** and **heavy-duty PU overmolding** for superior mechanical strength, it includes **quadruple O-ring sealing** for IP68 waterproofing and pressure resistance to **60 MPa (8702 PSI / ~6000 m depth)**. The inline male design mates securely with HCP female receptacles, with integrated strain relief for 10 mm²+ engineering cables. Red heat-shrink tubing identifies high-current lines.

This 150A single-pin solution was tailored for clients in heavy offshore engineering. HYSF supports full customization in voltage rating, cable termination, overmold length, and locking mechanisms. ISO9001-2015 certified and arc-tested for safe high-power subsea operation.

Product Parameter

Model: HCP-1P-150A

Brand: HYSF

Type: Single-Pin High-Current Underwater Connector

Gender: Male Inline

Pins: 1 Pin

Current Rating: 150A Continuous

Voltage Rating: 1000V AC/DC

Housing Material: Stainless Steel + Heavy-Duty PU Overmold

Contact Material: Gold-plated Copper (High-Current)

Sealing: Quadruple O-Ring

Cable Termination: For 10–25 mm² Engineering Cable

Waterproof Rating: IP68

Mated Pressure Rating: 60 MPa (8702 PSI / ~6000 m)

Depth Rating: Up to 6000m+

Operating Temperature: -20°C to 100°C

Interface Type: High-Power AC/DC Compatible

Application: Subsea Welding, ROV High-Torque Thrusters, AUV Heavy Actuators, Offshore Power Leads

Certification: ISO9001-2015

Customization: Voltage rating, cable size, overmold length, locking sleeve, heat-shrink ID

Compatibility: HCP Female Receptacles

Place of Origin: Guangdong, China
