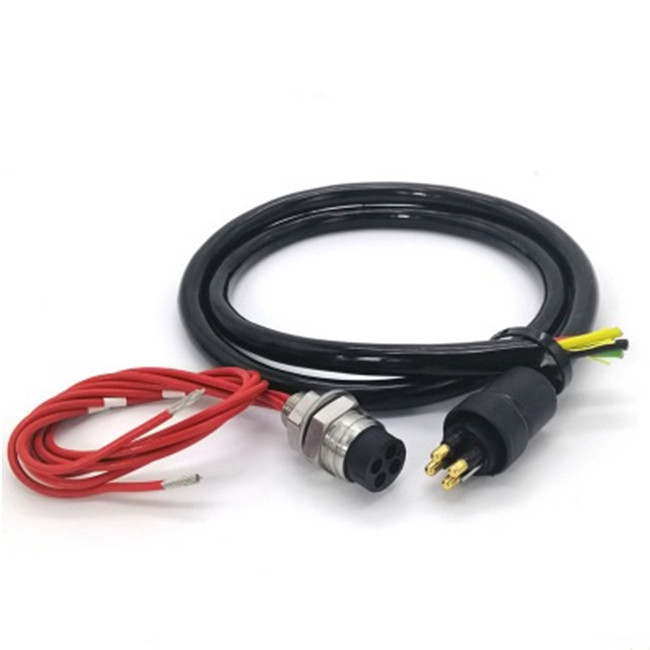

High current 2-pin/4-pin Subconn underwater connector made of 316L stainless steel and rubber-molded neoprene. Wet pluggable with 25A/30A rated current, ideal for deep-sea power applications to 7000m.
The High Current-A underwater connector is built for deep-sea power requirements, supporting high amperage applications with 25A and 30A rated configurations in 2-pin or 4-pin layouts. Constructed with 316L stainless steel and chloroprene rubber, this rugged connector supports use in marine power systems, subsea vehicles, and offshore installations. It features a wet pluggable Subconn-style interface and waterproof sealing up to IP68 standards, with a depth capability reaching 7000 meters. With durable Neoprene molding and secure screw thread (1/2-20UNF or 5/8-18UNF), it is ideal for long-term subsea connectivity with over 500 mating cycles.
Brand: HYSF
Model Number: High current-A
Type: Subconn-Style High-Current Circular Underwater Connector
Application: High-power underwater equipment, ROVs, offshore platforms, heavy-duty marine power lines
Pins: 2P or 4P (configurable)

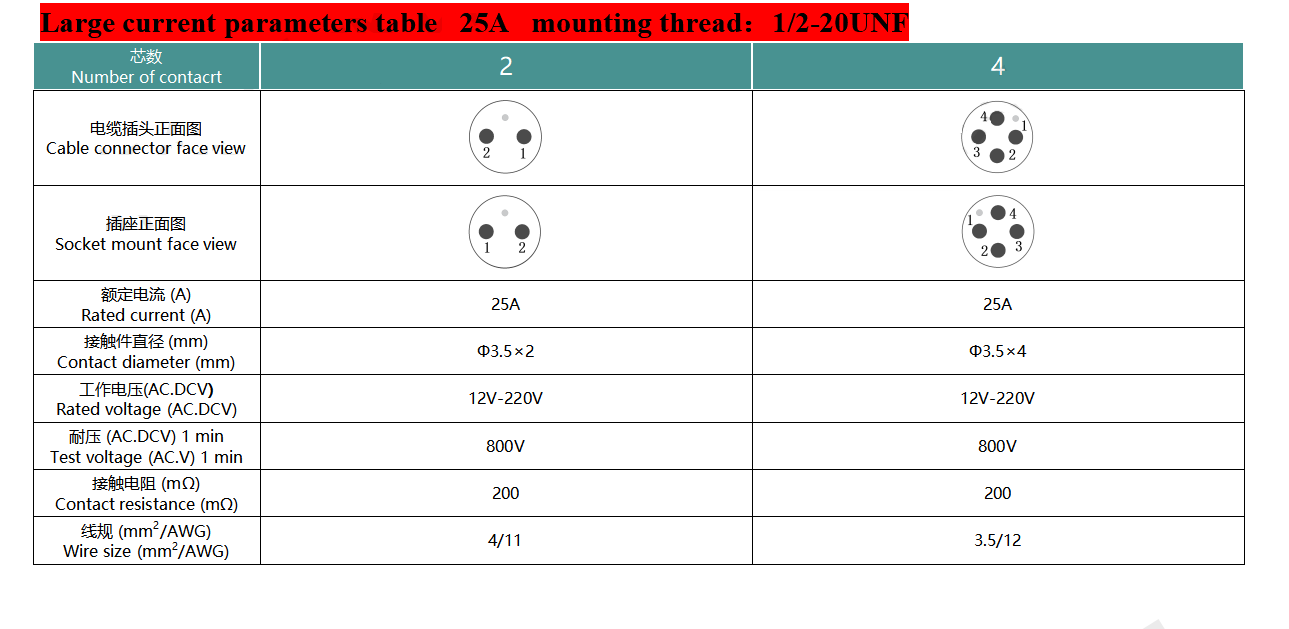

Rated Current: 25A / 30A per pin
Contact Material: Copper alloy (gold plated)
Housing Material: 316L Stainless Steel
Sealing Material: Chloroprene rubber (neoprene)
IP Rating: IP68
Water Depth Capability: up to 7000 meters

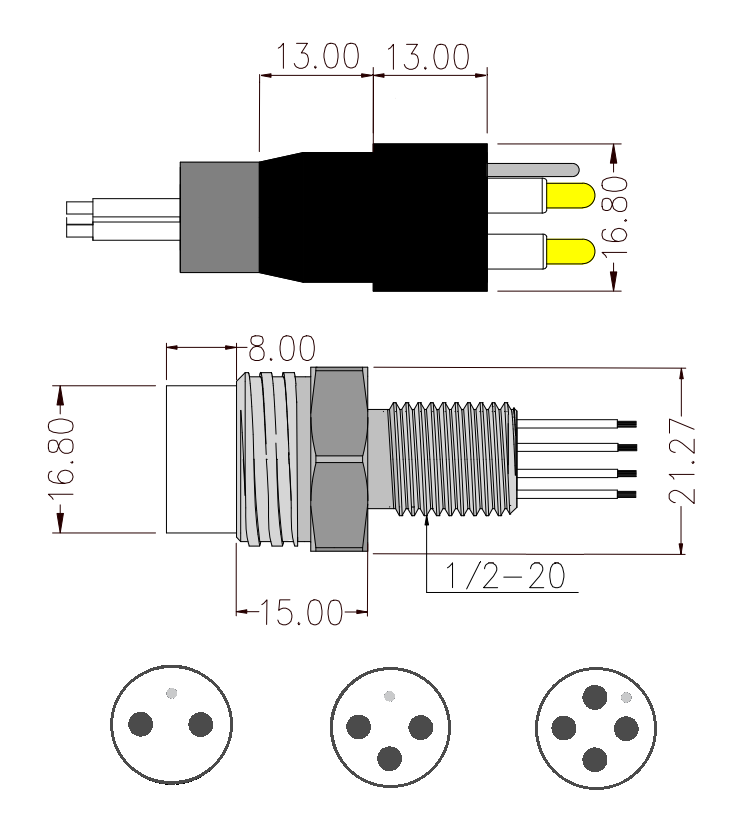

Installation Thread: 1/2-20UNF, 5/8-18UNF
Resistance: 200MΩ–199.9Ω
Withstand Voltage: 800V AC
Temperature Range: -50℃ ~ 100℃
Insertion/Extraction Cycles: >500 times
Gender: Female / Male
Place of Origin: Shandong, China
Certification: TUV, CE, CCC
