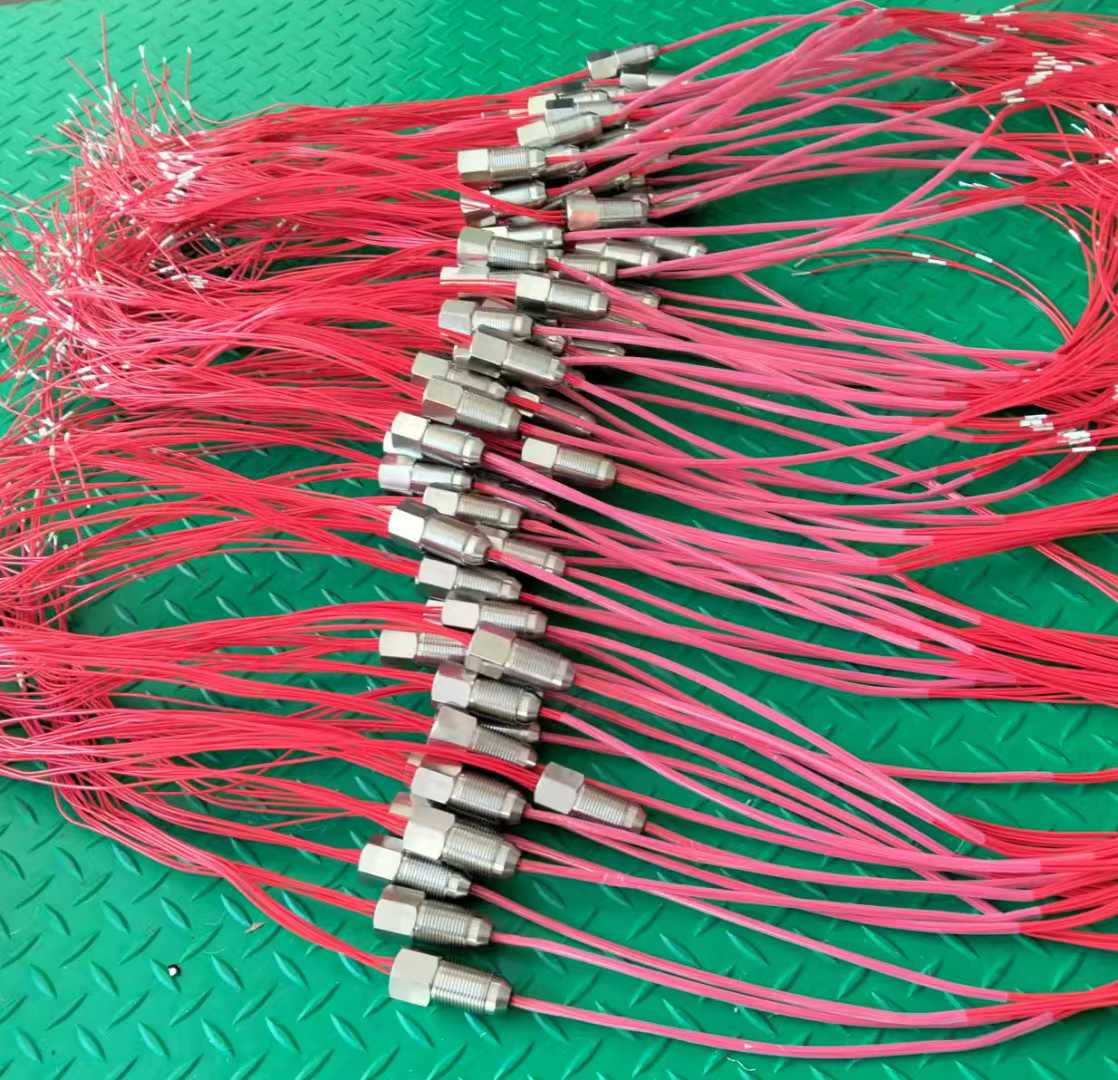

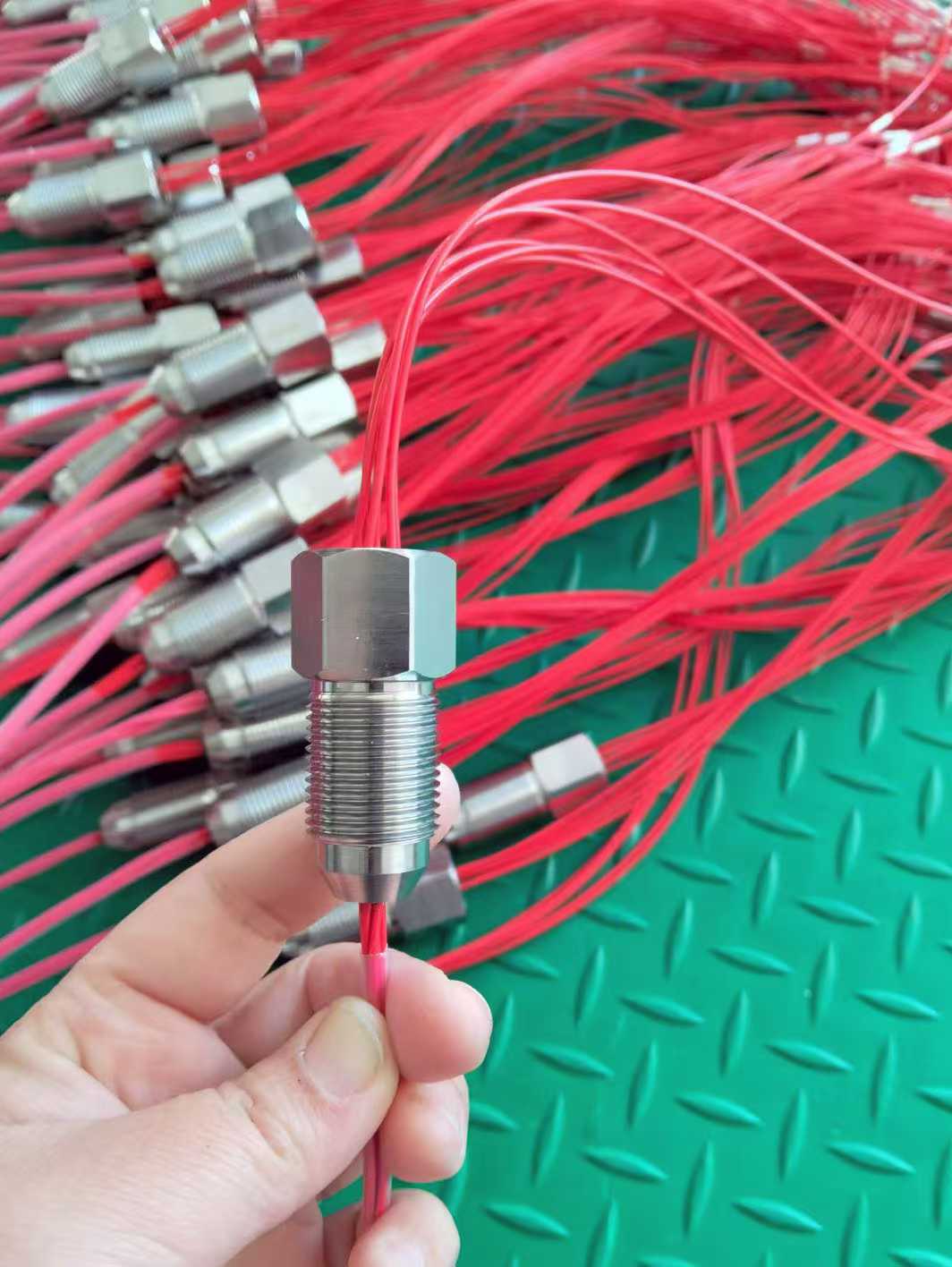

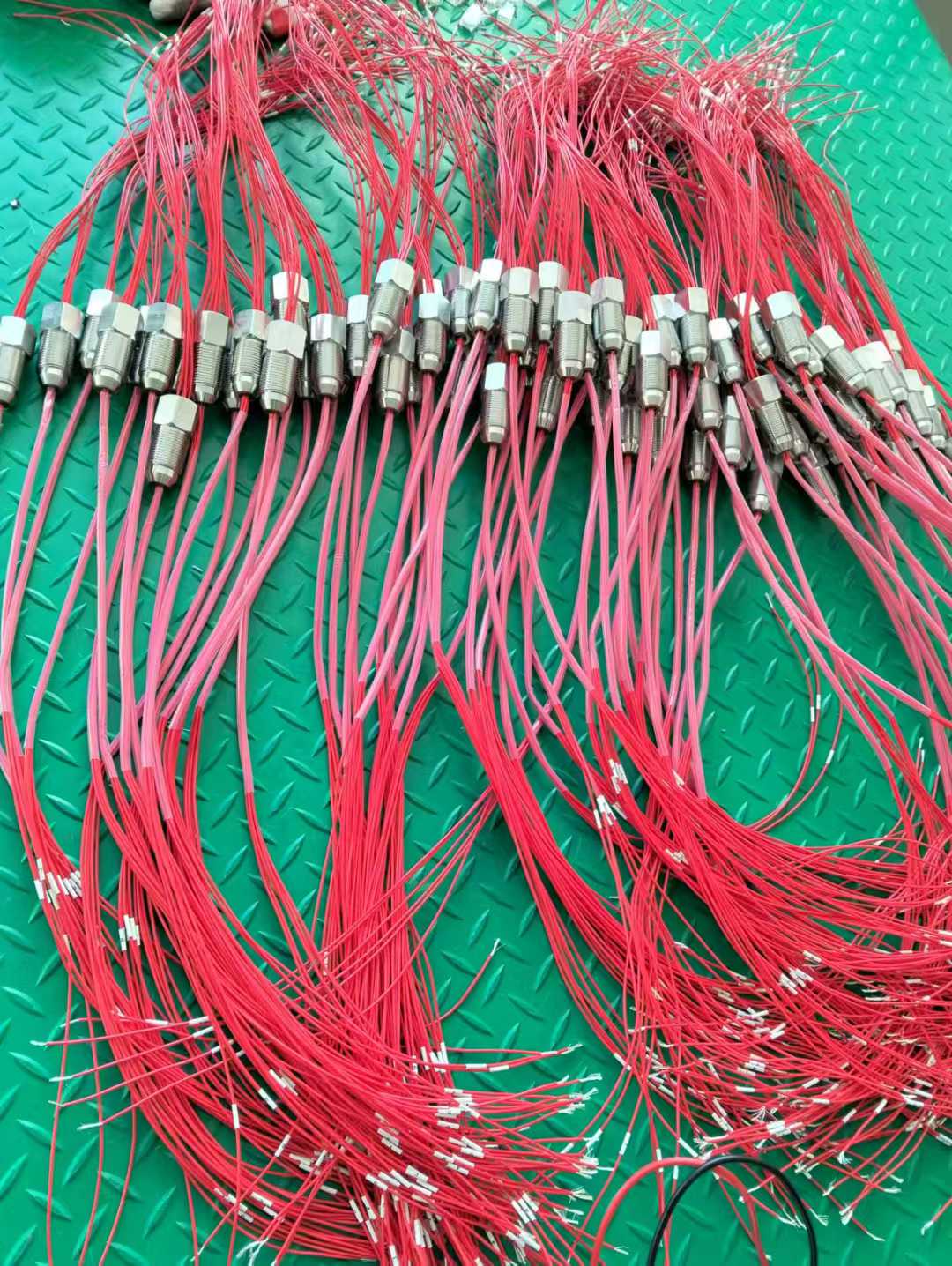

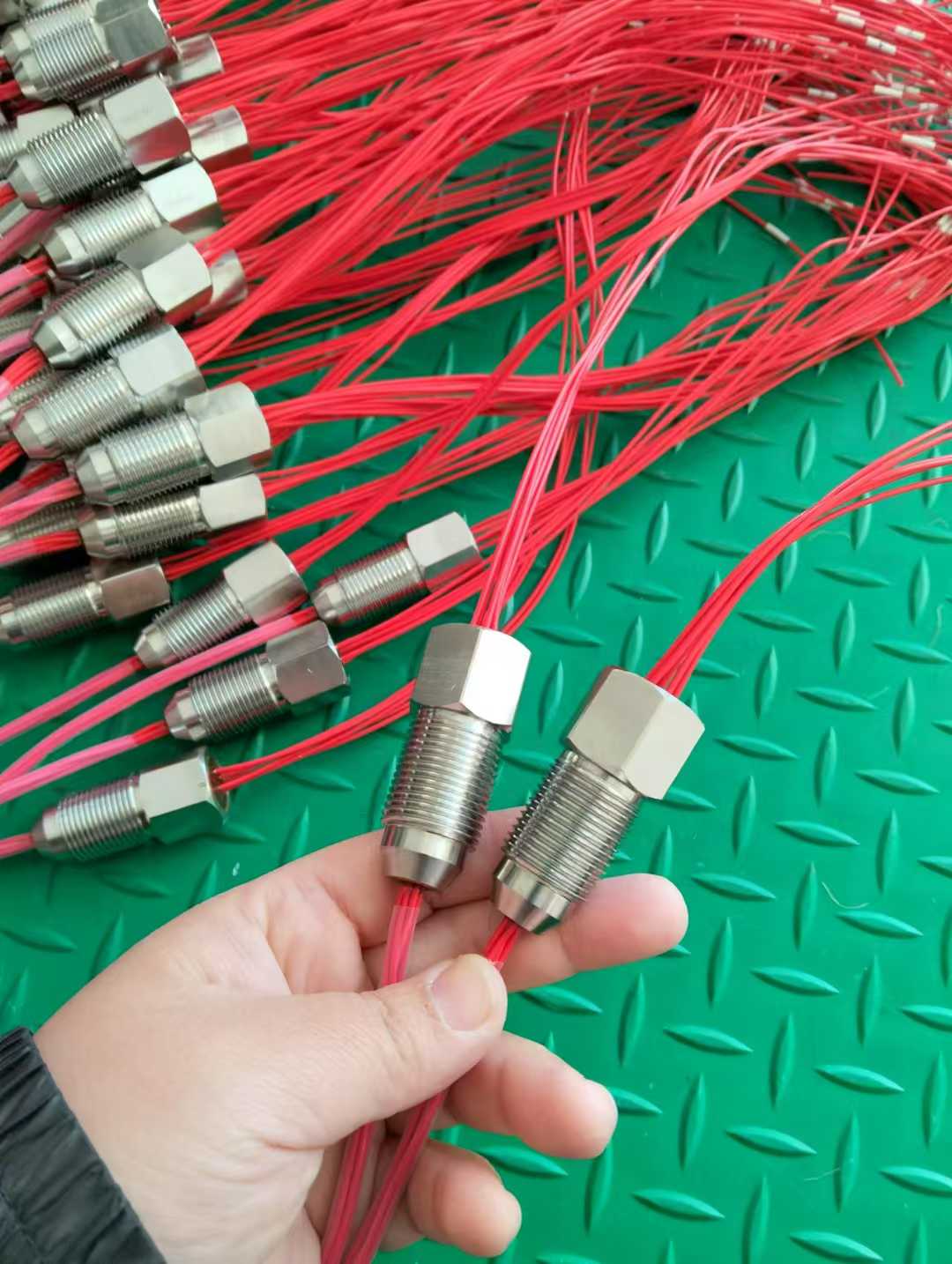

HYSF HP-PENETRATOR-120MPa is a custom high-pressure bulkhead penetrator rated to 120 MPa (17,405 PSI) and 150°C temperature. Titanium construction with ceramic insulation, IP68 sealed, ideal for hadal zone ROVs, geothermal subsea probes, and extreme-depth instruments up to 12,000m.
The HYSF HP-PENETRATOR-120MPa is a **successfully customized high-pressure bulkhead penetrator** engineered for the most extreme subsea conditions. Rated for **120 MPa (17,405 PSI / ~12,000 m depth)** and **150°C continuous temperature**, it features **ceramic-to-metal sealing** with **Grade 5 titanium body** for unparalleled strength, thermal stability, and corrosion resistance—perfect for hadal exploration ROVs, hydrothermal vent sensors, and geothermal subsea drilling tools.
Precision-machined with **gold-plated high-temp contacts** and **quadruple dynamic O-ring sealing** in Kalrez material for zero-leakage performance under combined pressure/heat loads. The square flange mount includes 4x M6 holes for secure integration into thick-walled pressure vessels. Pre-terminated with **PTFE-insulated flying leads** rated to 200°C for direct connection to high-temp electronics.
This extreme-rated penetrator was developed for clients pushing the limits of deep ocean and high-temperature exploration. HYSF offers full customization in pin count (1–8), thermal insulation, flange geometry, and lead configuration. ISO9001-2015 certified and tested in simulated hadal/geothermal environments.
Model: HP-PENETRATOR-120MPa
Brand: HYSF
Type: Custom High-Pressure/Temperature Bulkhead Penetrator
Pressure Rating: 120 MPa (17,405 PSI / ~12,000 m)
Temperature Rating: 150°C Continuous
Housing Material: Grade 5 Titanium
Sealing: Ceramic-to-Metal + Quadruple Kalrez O-Ring
Pins: 2–8 (Gold-plated High-Temp Alloy)
Current Rating: 10A per Pin
Voltage Rating: 1000V AC/DC
Flange: Square, 4x M6 Mounting Holes
Leads: PTFE-Insulated (200°C Rated), Pre-Stripped
Waterproof Rating: IP68
Leak Rate: < 1×10⁻¹⁰ atm·cc/s He
Operating Environment: Hadal Depth + High-Temp Fluids
Application: Hadal ROV Probes, Hydrothermal Sensors, Geothermal Subsea Tools, Extreme-Depth Instruments
Certification: ISO9001-2015
Customization: Pin count, thermal coating, flange size, lead length, ceramic variant
Features: Pressure-Compensated Design, Thermal Shock Resistant
Place of Origin: Guangdong, China
