IL10F BH10M 10-pin IP68 subconn-style circular underwater connector for ROV, AUV and subsea power use. Wet pluggable with 5A rated copper pins and 7000m depth resistance.

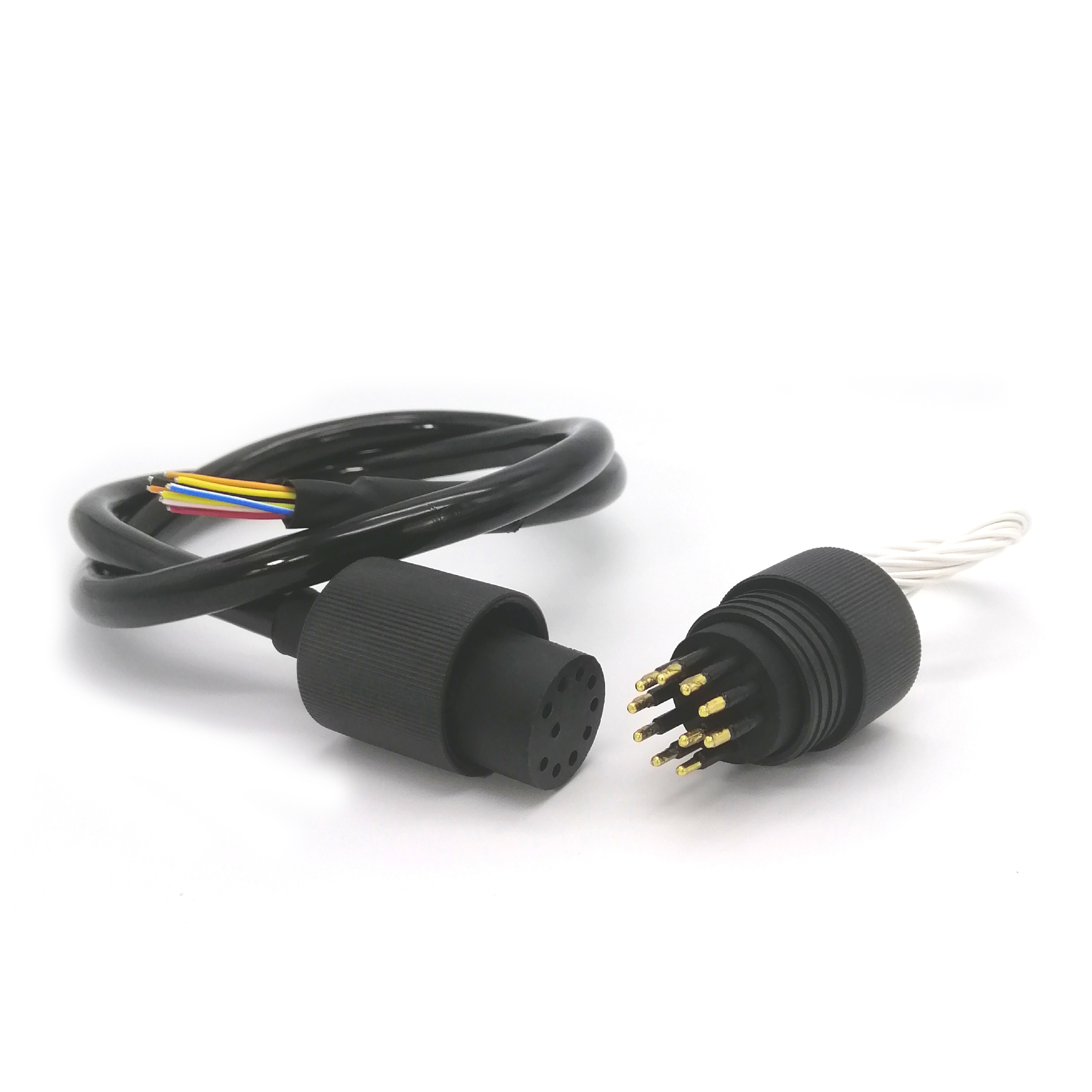

The IL10F BH10M 10Pin Underwater Connector is a Subconn-style circular connector engineered for subsea applications such as ROVs, AUVs, and marine power systems. Featuring a female inline plug (IL10F) and a male bulkhead connector (BH10M), it is IP68 rated to ensure excellent waterproof sealing at depths of up to 7000 meters. Its round configuration is ideal for compact underwater layouts, while each pin supports a 5A single-core current. Designed for over 500 insertion cycles and equipped with reliable copper alloy contacts and a secure 1/2-20UNF thread, this pluggable wet-mate connector offers dependable performance for long-term marine operations.
Brand: HYSF
Model Number: IL10F BH10M
Type: Subconn-Style Circular Bulkhead Underwater Connector
Application: ROV, AUV, underwater power systems, marine equipment
Pins: 10P
Rated Current: 5A per pin (single-core)
Contact Material: Copper alloy (gold plated)
Shape: Round
Gender: Female (IL10F), Male (BH10M)
IP Rating: IP68
Water Depth Capability: up to 7000 meters
Installation Thread: 1/2-20UNF
Withstand Voltage: 800V AC
Resistance: 200MΩ–199.9Ω
Temperature Range: -50℃ ~ 100℃
Insertion/Extraction Cycles: >500 times
Place of Origin: Shandong, China
Certification: TUV, CE, CCC
