IL12M BH12F 12-pin Subconn-style circular underwater connector for ROV, AUV, and marine cable power systems. IP68 rated, 5A per pin, and threaded 5/8-18UNF design for secure deep-sea connectivity.

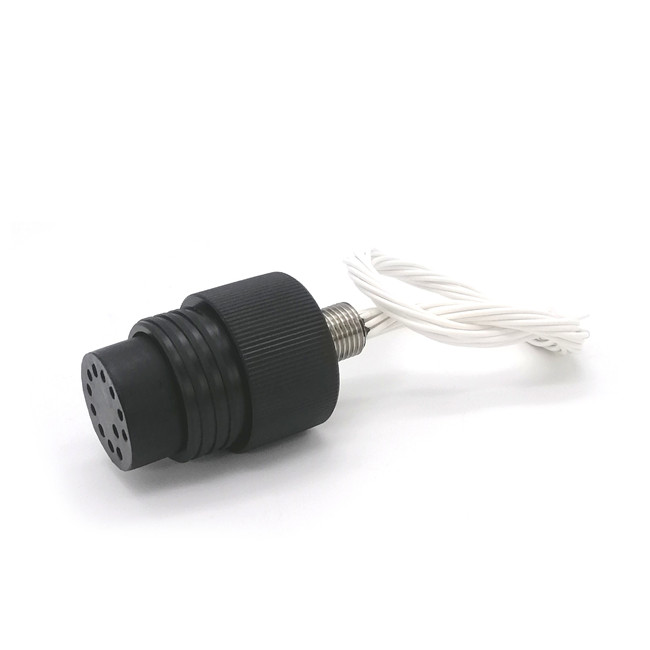

The IL12M BH12F 12Pin Underwater Connector is a Subconn-style high-density circular connector designed for power and signal applications in ROVs, AUVs, UUVs, and other marine cable systems. Constructed with a sturdy stainless steel housing and sealed neoprene components, this connector is IP68 rated and capable of operating at depths of up to 7000 meters. Each of the 12 pins is rated for 5A single-core current, and the robust 5/8-18UNF threaded connection ensures secure and repeatable underwater mating. Ideal for deep-sea exploration, marine instrumentation, and subsea robotics.
Brand: HYSF
Model Number: IL12M BH12F
Type: Subconn-Style Circular Underwater Connector
Application: ROV, AUV, UUV, marine cable systems, subsea instrumentation
Pins: 12P
Rated Current: 5A per pin (single-core)
Contact Material: Copper alloy (gold plated)
Housing Material: Stainless steel
Sealing Material: Neoprene rubber
IP Rating: IP68
Water Depth Capability: up to 7000 meters
Withstand Voltage: 800V AC
Resistance: 200MΩ–199.9Ω
Installation Thread: 5/8-18UNF
Temperature Range: -50℃ ~ 100℃
Insertion/Extraction Cycles: >500 times

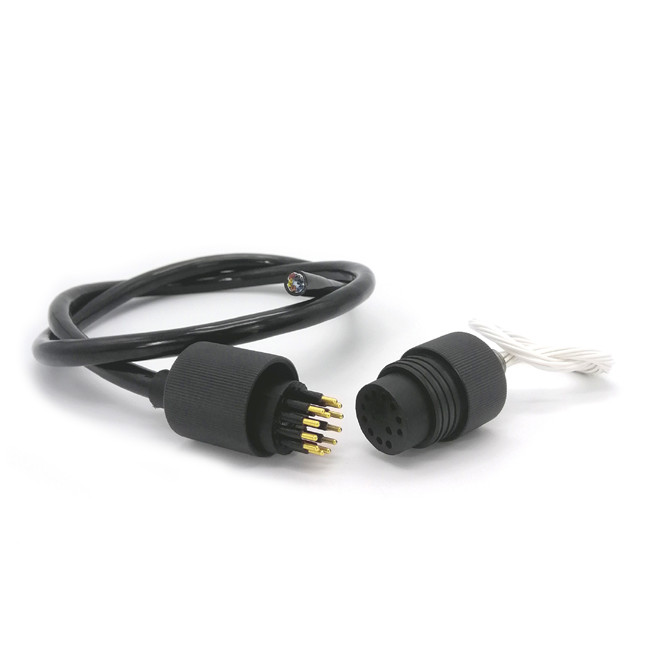

Gender: Male (IL12M), Female (BH12F)
Place of Origin: Shandong, China
Certification: TUV, CE, CCC
