HYSF IL2F 2-Pin Female Inline Cable Underwater Connector

Product Description

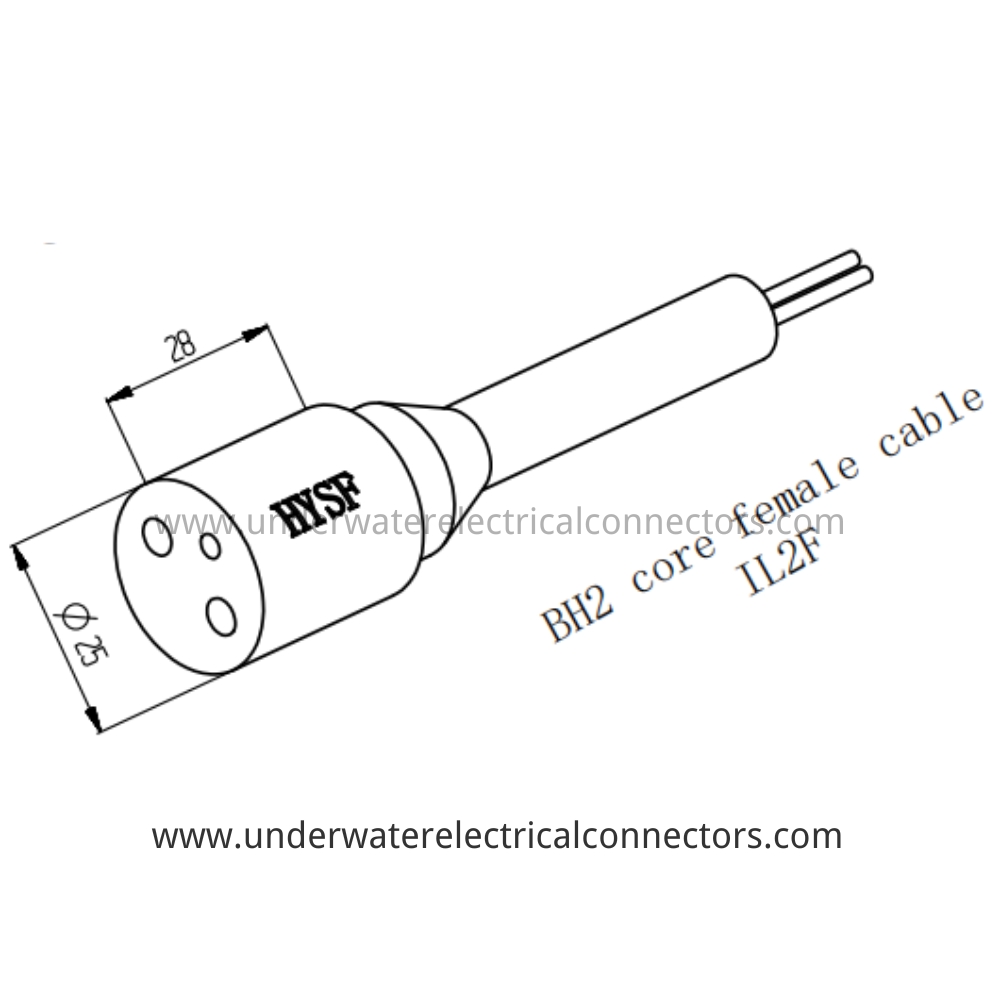

The HYSF IL2F is a highly compact **2-pin female inline cable underwater connector** engineered for seamless integration into tight spaces on subsea cable assemblies. With an ultra-short **28 mm** overmolded body and lightweight polyurethane construction, it minimizes bulk and drag while maintaining exceptional reliability in extreme deep-ocean environments.

Fully molded in black polyurethane with gold-plated contacts and double O-ring sealing at the mating face, the IL2F delivers **70 MPa (7000 m)** pressure resistance and outstanding flexibility for dynamic cable applications. Pre-terminated with color-coded leads for quick field installation and low contact resistance.

Complete drop-in compatibility with Subconn® Standard IL2F / MCBF2F series ensures hassle-free replacement or system expansion. Widely used in scientific moorings, remotely operated vehicles, and deep-sea observatories where size, weight, and durability are critical.

Product Parameter

Model: IL2F

Brand: HYSF

Type: 2-Pin Female Inline Cable Connector

Gender: Female (Socket)

Pin Count: 2 Pins

Contact Material: Gold-plated Copper Alloy

Current Rating: 16A per Pin

Voltage Rating: 600V AC/DC

Body Material: Black Polyurethane (PU) Overmolded

Body Length: 28 mm (excluding cable)

Body Diameter: Ø18 mm

Sealing: Double O-Ring at Mating Face

Waterproof Rating: IP68 / Open Face Pressure Tolerant

Pressure Rating: 70 MPa (~7000 m depth)

Operating Temperature: -20°C to 80°C

Cable Termination: Pre-soldered Color-coded Leads

Application: ROV Tethers, Subsea Sensor Cables, Underwater Lighting, Deepwater Moorings

Certification: ISO9001-2015

Compatibility: Subconn® Standard Circular IL2F / MCBF2F

Place of Origin: Guangdong, China
