HYSF IL2M 2-Pin Male Inline Cable Underwater Connector

Product Description

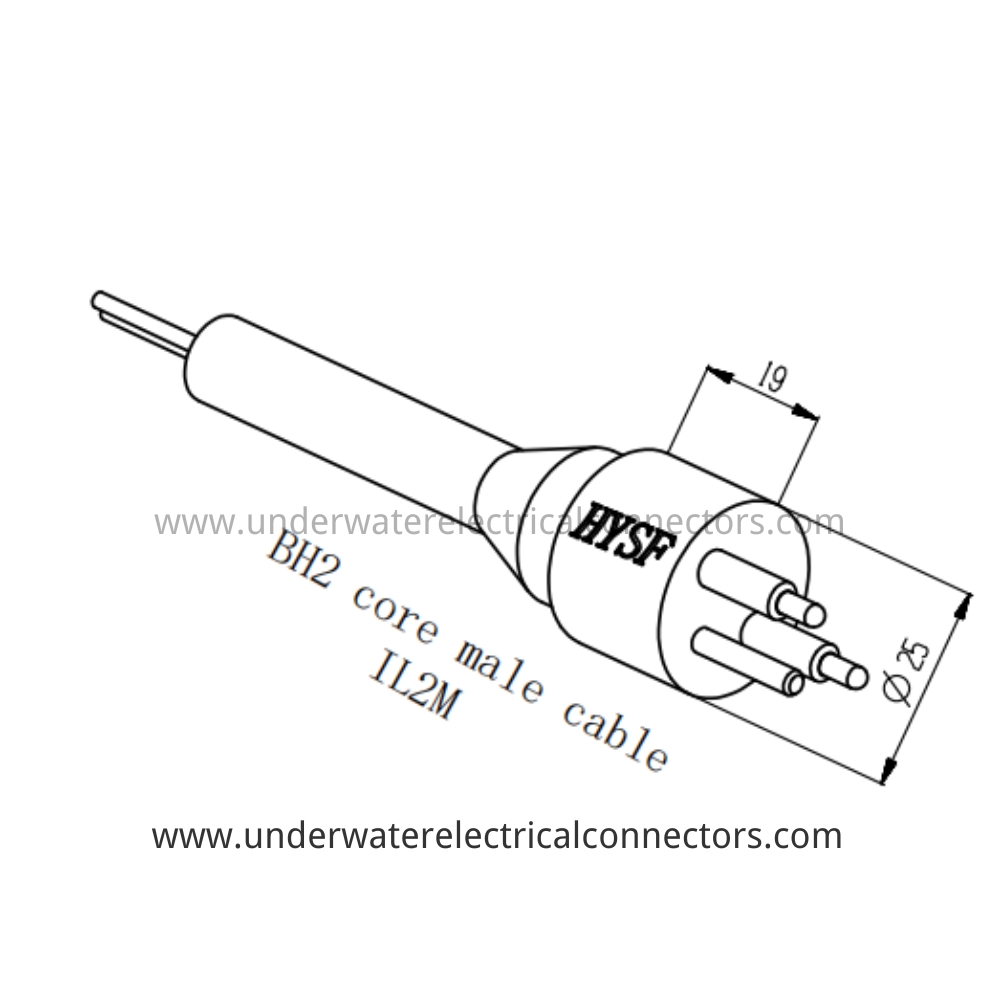

The HYSF IL2M is a **2-pin male inline cable underwater connector** featuring an extremely short **19 mm** overmolded body—one of the most compact designs available in the Standard Circular series. Its lightweight, flexible black polyurethane construction reduces weight and hydrodynamic drag while providing exceptional durability in full ocean depth applications.

Equipped with gold-plated pins and dual O-ring face sealing, the IL2M guarantees reliable electrical performance and pressure resistance up to **70 MPa (7000 m)**. Factory pre-terminated with color-coded leads and robust strain relief, it enables fast, error-free integration into dynamic or static subsea cable systems.

Fully interchangeable with Subconn® IL2M and MCBH2M series, this connector is the preferred choice for space-critical installations such as AUV/ROV tethers, deepwater observatories, and subsea instrumentation networks where every millimeter counts.

Product Parameter

Model: IL2M

Brand: HYSF

Type: 2-Pin Male Inline Cable Connector

Gender: Male (Pin)

Pin Count: 2 Pins

Contact Material: Gold-plated Copper Alloy

Current Rating: 16A per Pin

Voltage Rating: 600V AC/DC

Body Material: Black Polyurethane (PU) Overmolded

Body Length: 19 mm (excluding cable)

Body Diameter: Ø18 mm

Sealing: Double O-Ring at Mating Face

Waterproof Rating: IP68 / Open Face Pressure Tolerant

Pressure Rating: 70 MPa (~7000 m depth)

Operating Temperature: -20°C to 80°C

Cable Termination: Pre-soldered Color-coded Leads

Application: ROV/AUV Tethers, Subsea Cameras, Deep-Sea Sensor Arrays, Compact Cable Harnesses

Certification: ISO9001-2015

Compatibility: Subconn® Standard Circular IL2M / MCBH2M

Place of Origin: Guangdong, China
