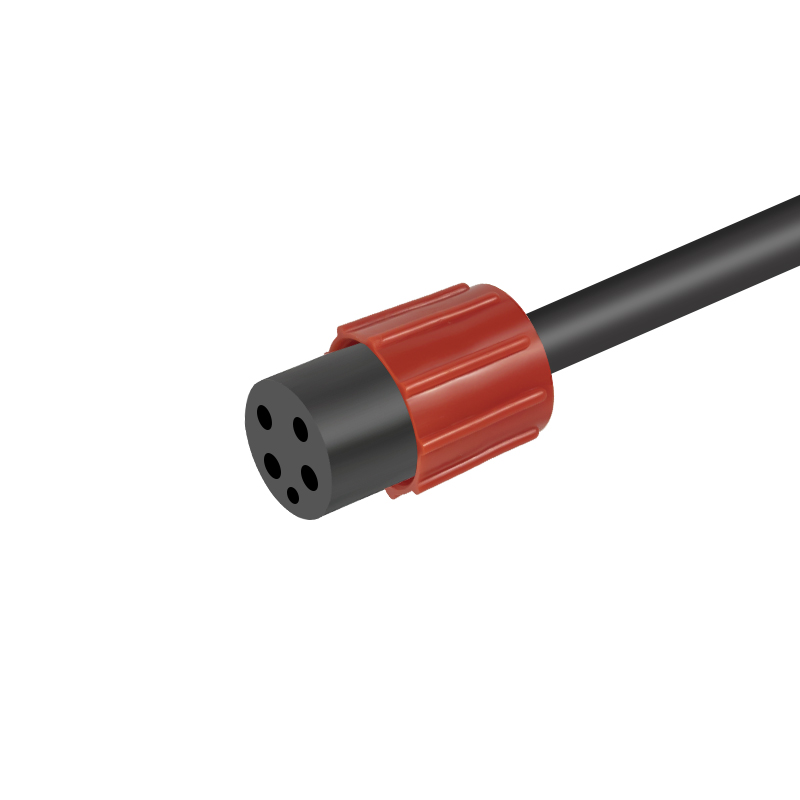

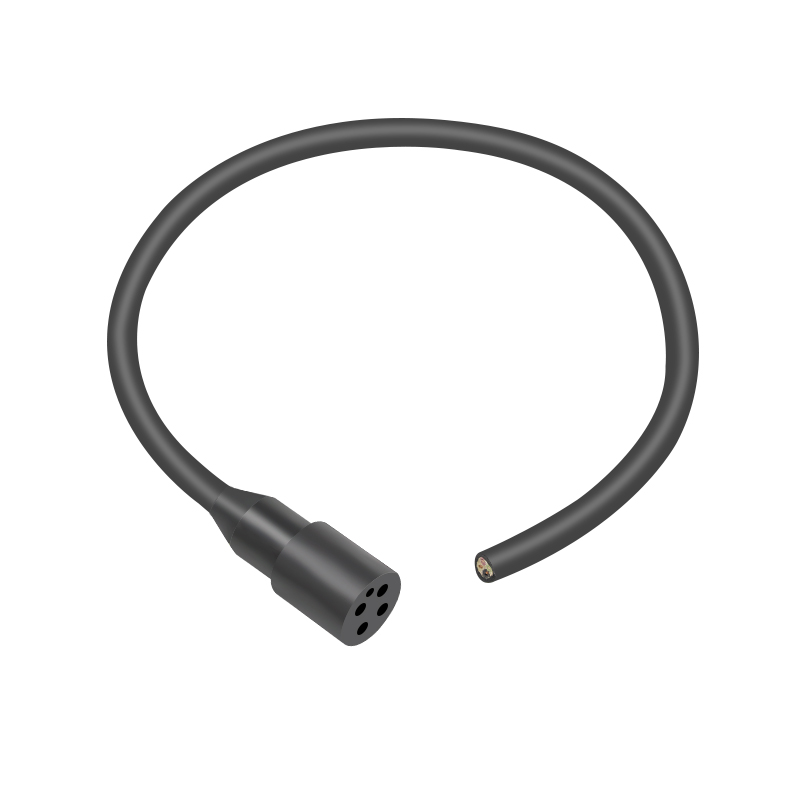

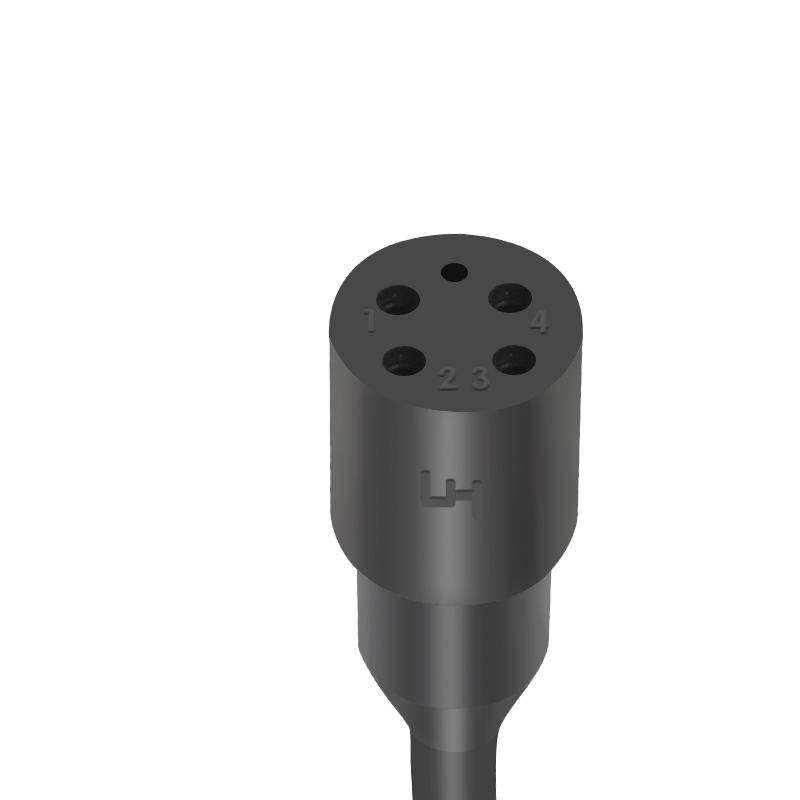

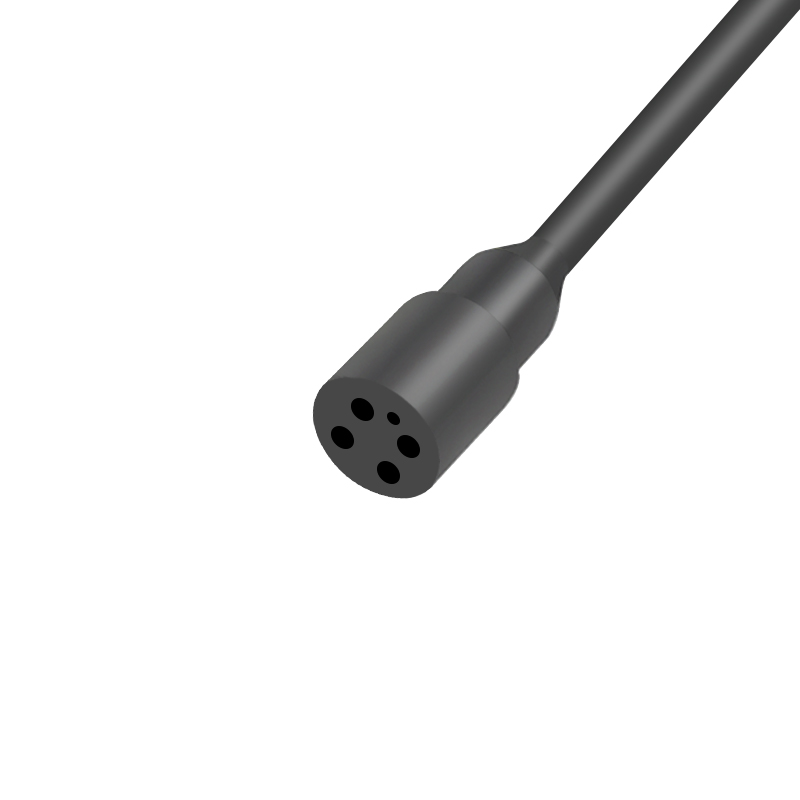

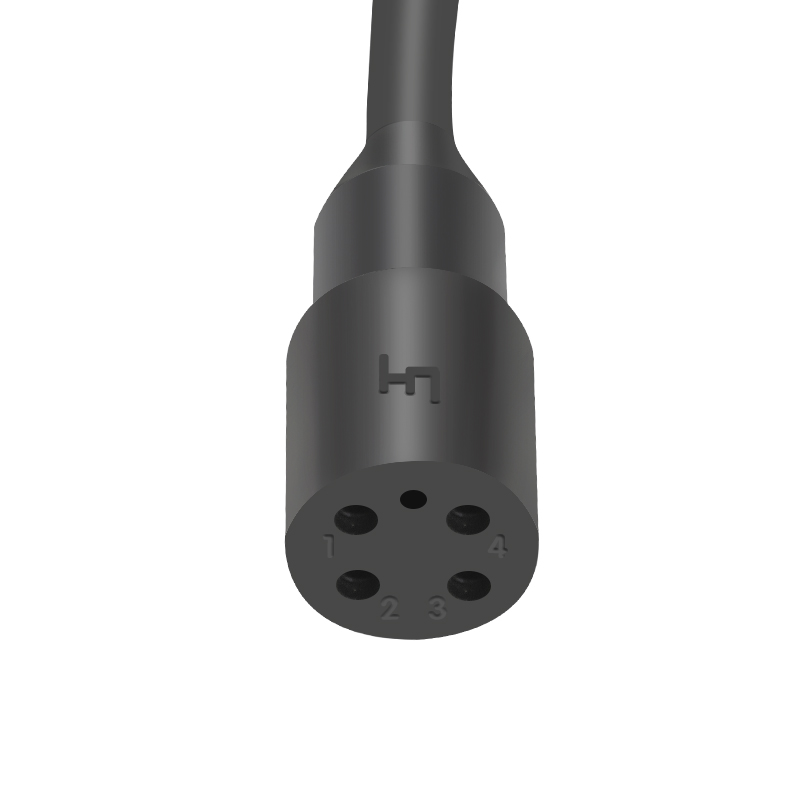

IL4F 4-Pin Inline Female High Pressure Subsea Connector

Product Description

The IL4F 4-Pin Inline Female High Pressure Subsea Connector is a specialized connector engineered for deep-sea environments up to 6000 meters. Designed for ROVs, AUVs, UUVs, and subsea sensor systems, this connector delivers exceptional durability and electrical reliability under extreme pressure and saltwater exposure.

Built using corrosion-resistant stainless steel and titanium housing with gold-plated brass contacts, the IL4F guarantees high conductivity and long service life. It supports both AC and DC interfaces, and ensures sealed performance at pressures up to 10,000 PSI (approx. 689 Bar), verified through IP68 certification for underwater sealing.

Its compact, inline shape is optimized for cable-to-cable connections in subsea robotics, marine vehicles, and ocean observation platforms. Fully compliant with ISO9001-2015 standards, the IL4F is also customizable to meet specific client needs in pin configuration, size, and materials, making it dependable for mission-critical underwater applications.

Product Parameter

Model: IL4F

Brand: HYSF

Type: Inline Underwater Connector

Gender: Female

Pins: 4-Pin

Shape: Standard Round

Housing Material: Stainless Steel, Titanium

Contact Material: Gold-plated Brass

Waterproof Rating: IP68

Mated Pressure Rating: Up to 10,000 PSI (Approx. 689 Bar)

Depth Rating: Up to 6000m

Interface Type: AC/DC Compatible

Application: ROVs, AUVs, UUVs, Underwater Sensors, Subsea Instruments

Certification: ISO9001-2015

Customization: Supports customized processing size and pin layout

Place of Origin: Guangdong, China
