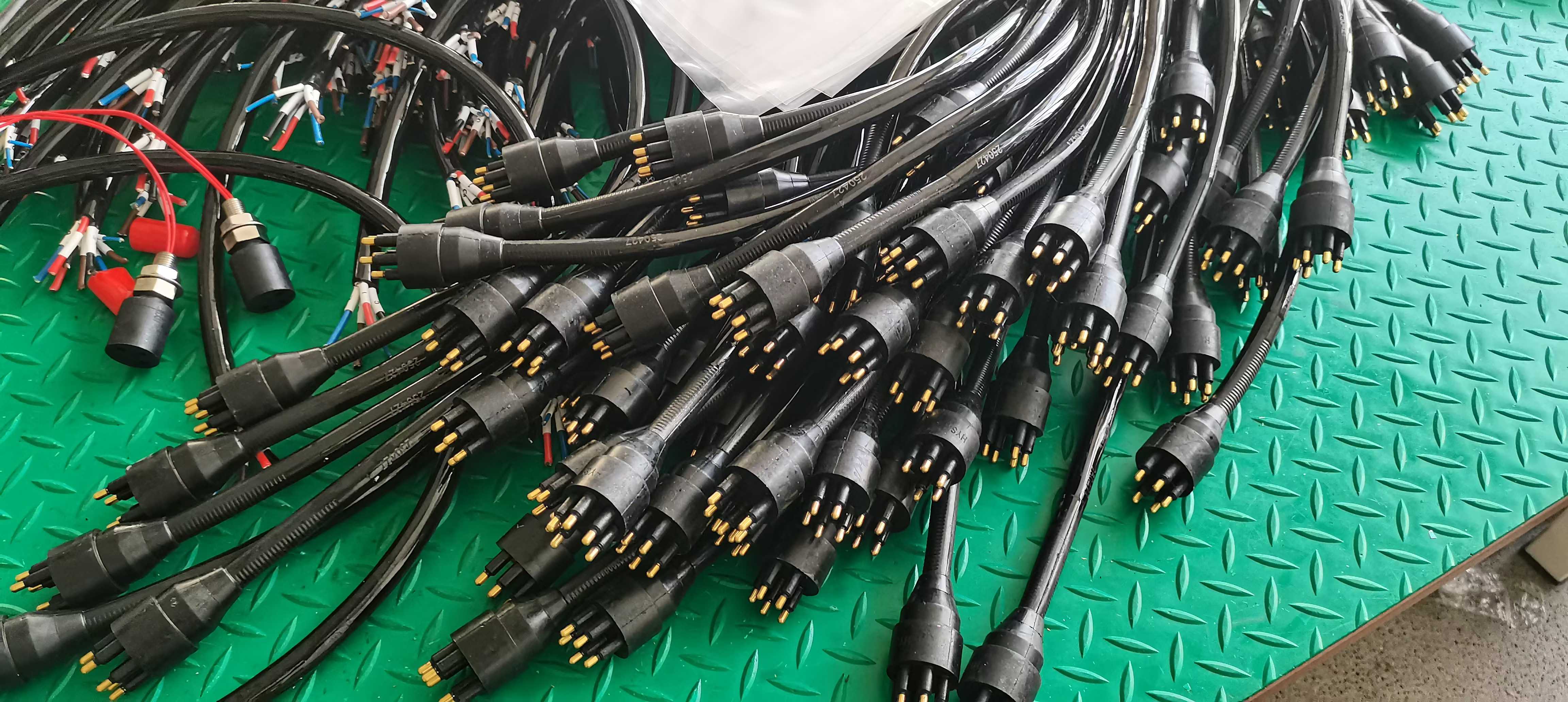

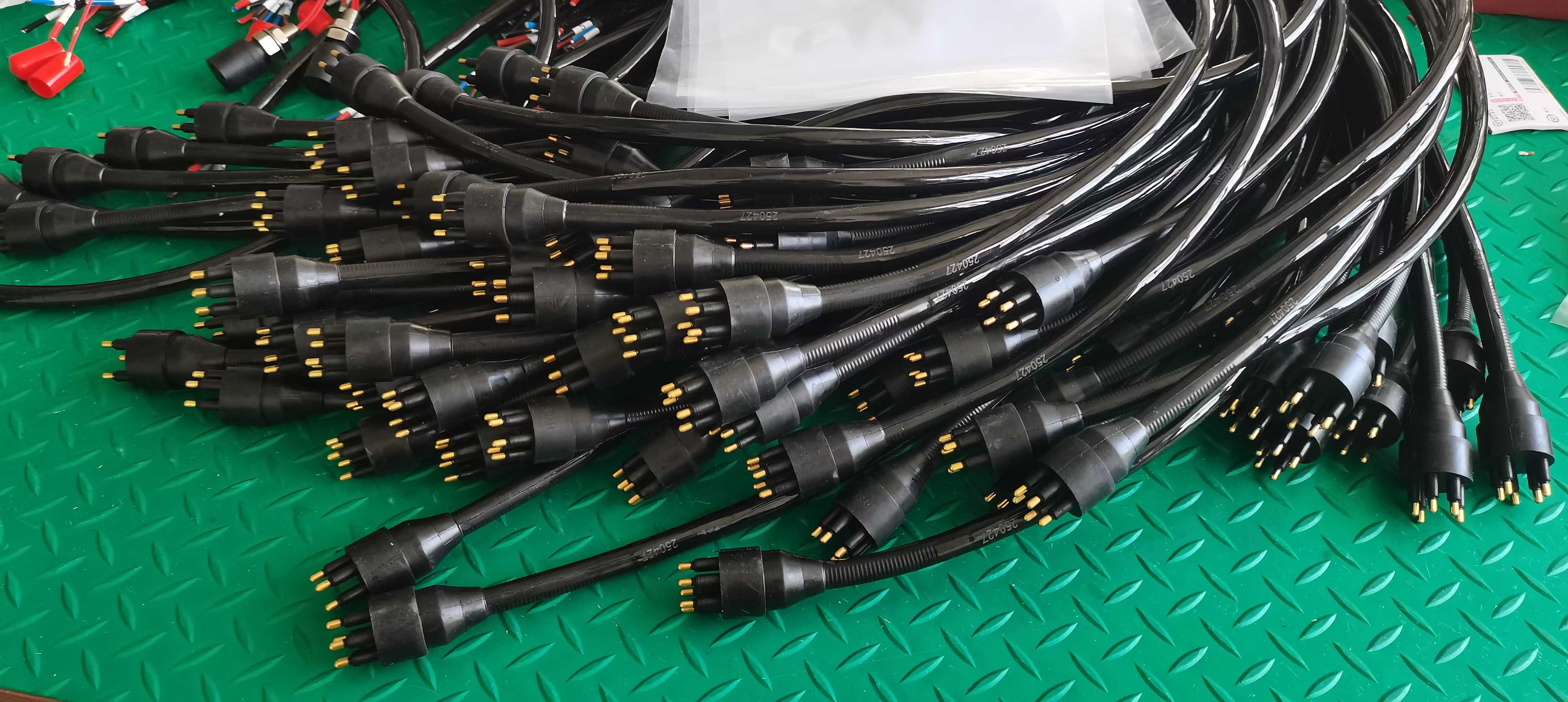

HYSF ILB5M/F Custom 5-Pin Inline Underwater Connector (30A per Pin, High-Current)

Product Description

The HYSF ILB5M/F is a successfully customized **high-current inline underwater connector** featuring **5 robust gold-plated pins** each rated for 30A continuous duty. Designed for demanding subsea power delivery, it excels in ROV propulsion systems, underwater welding rigs, and multi-motor AUV configurations where reliable high-amperage transmission is critical.

Machined from **marine-grade stainless steel** with **thick-walled PU overmolding** and **triple O-ring sealing**, it ensures IP68 waterproofing and exceptional pressure resistance to **60 MPa (8702 PSI / ~6000 m depth)**. The inline male design mates seamlessly with standard bulkhead females, with optional locking sleeve for vibration-proof connections. Pre-assembled with color-coded flying leads for quick integration.

This 5-pin 30A solution was tailored for clients needing compact, high-power connectivity in harsh saltwater environments. HYSF supports full customization in pin configuration, cable length, overmold material, and current derating. ISO9001-2015 certified and rigorously tested for industrial subsea deployments.

Product Parameter

Model: ILB5M/F

Brand: HYSF

Type: Custom Inline High-Current Underwater Connector

Gender: Male Inline

Pins: 5 Pin

Current Rating: 30A per Pin

Voltage Rating: 600V AC/DC

Housing Material: Stainless Steel + PU Overmold

Contact Material: Gold-plated Brass (High-Current)

Sealing: Triple O-Ring

Cable: Pre-Assembled with Color-Coded Flying Leads

Waterproof Rating: IP68

Mated Pressure Rating: 60 MPa (8702 PSI / ~6000 m)

Depth Rating: Up to 6000m+

Interface Type: High-Power AC/DC Compatible

Application: ROV Thrusters, Subsea Welding, AUV Multi-Motor Power, Heavy-Duty Instruments

Certification: ISO9001-2015

Customization: Pin mapping, cable length, overmold color, locking sleeve, strain relief

Compatibility: Standard Bulkhead Female Connectors

Place of Origin: Guangdong, China
