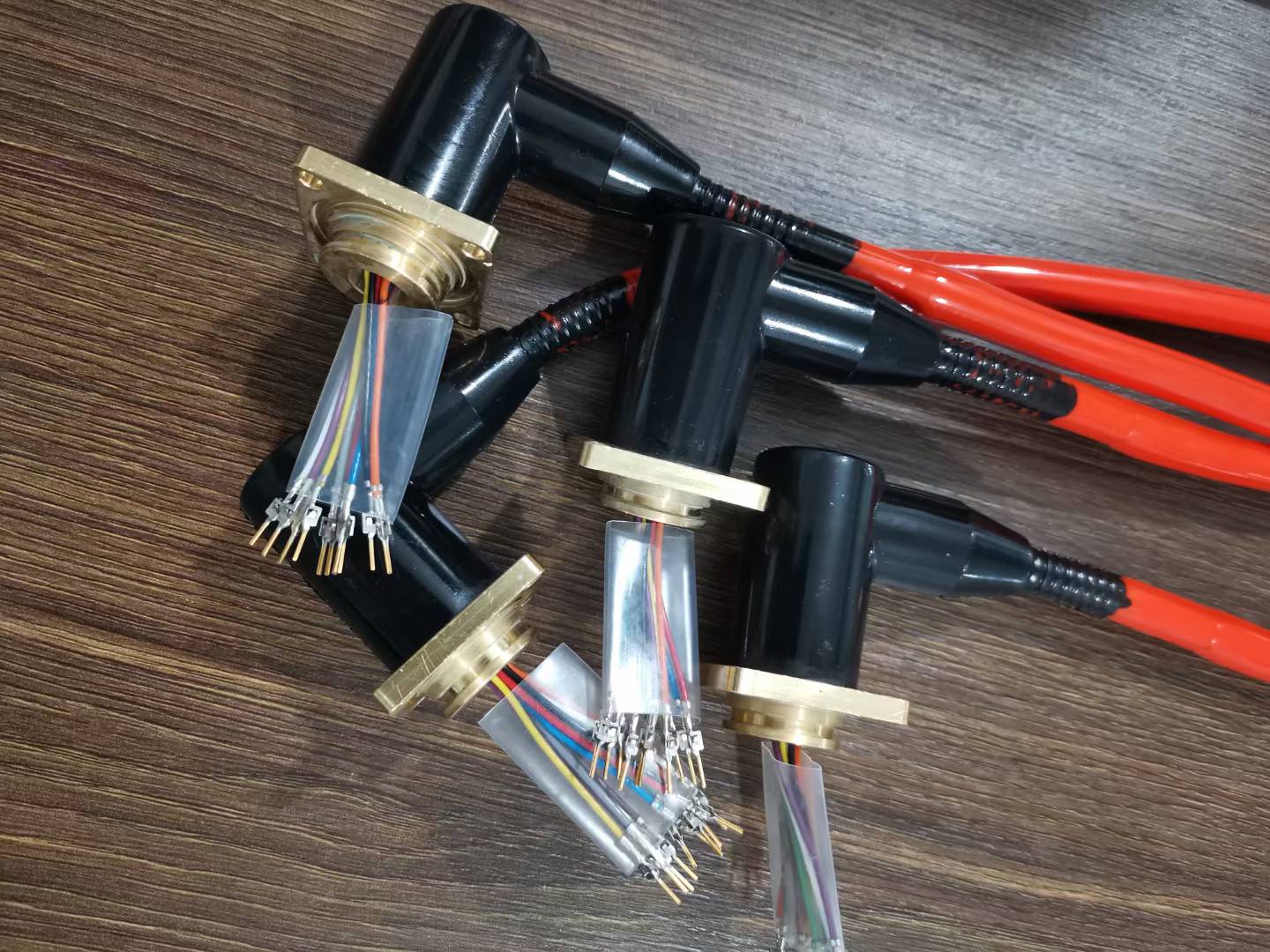

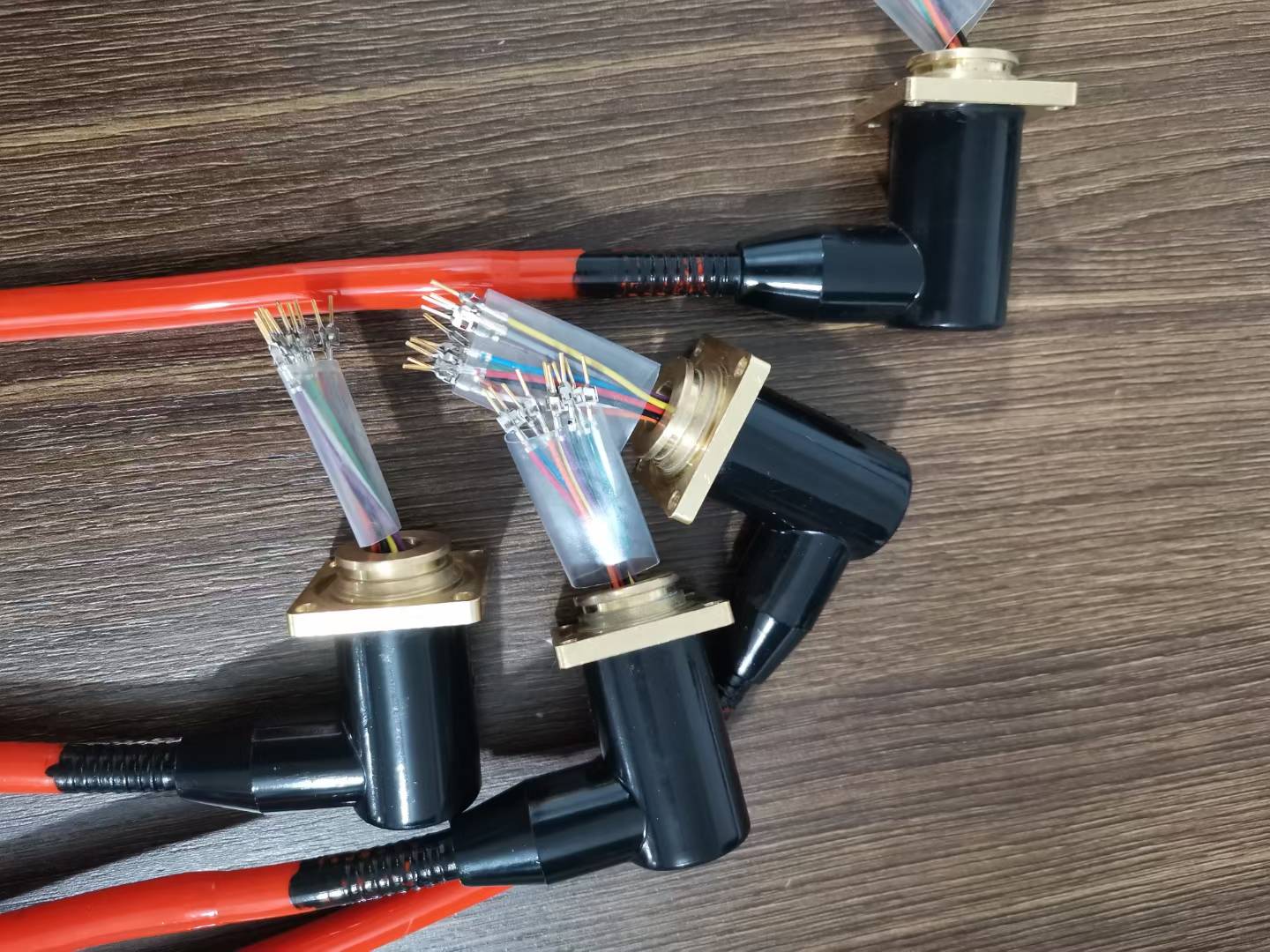

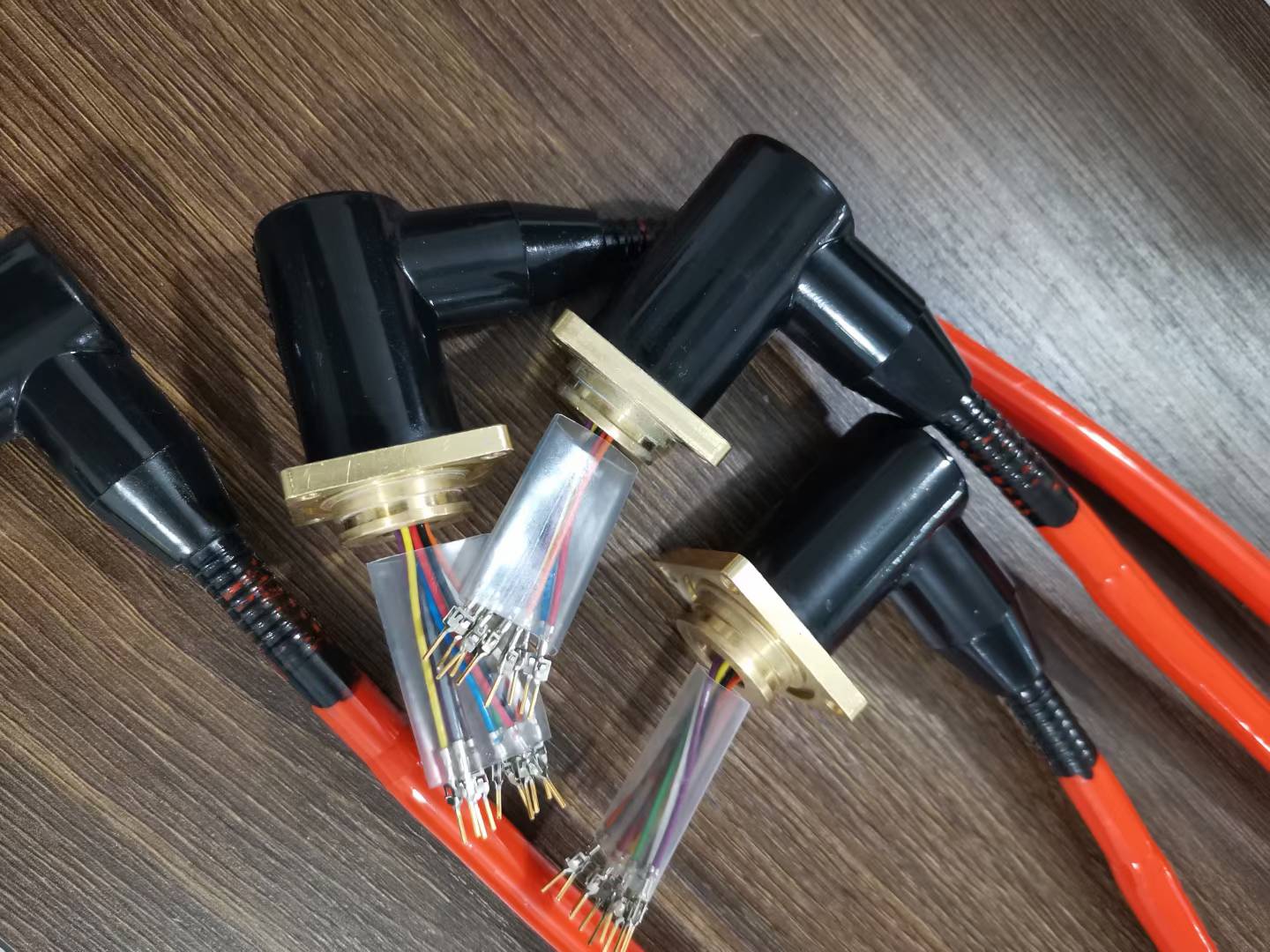

HYSF LPMBH/IL12-16M/F Right-Angle Inline 12-16 Pin Underwater Connector with Molded Cable

Product Description

The HYSF LPMBH/IL12-16M/F is a high-density right-angle inline underwater connector from the LPM Series, featuring 12 to 16 gold-plated pins and integrated overmolded polyurethane cable. Engineered for low-profile, panel-mounted subsea systems, it excels in space-constrained environments such as ROV control modules, AUV sensor arrays, and deepsea instrument housings.

Constructed with marine-grade stainless steel or titanium bulkhead and robust molded cable termination, it ensures superior corrosion resistance and mechanical durability. Supports AC/DC signals, IP68 sealing, and mated pressure up to 10,000 PSI (689 Bar), enabling reliable performance at depths exceeding 6000 meters.

This successfully customized version includes pre-terminated, color-coded flying leads with protective sleeving for easy integration. HYSF offers full customization in pin count, cable length, overmolding, and strain relief. ISO9001-2015 certified and field-proven for critical underwater connectivity.

Product Parameter

Model: LPMBH/IL12-16M/F

Brand: HYSF

Type: Right-Angle Inline Underwater Connector with Molded Cable

Gender: Female Bulkhead (Male Inline Compatible)

Pins: 12–16 Pin

Shape: Right-Angle / Flat Panel Mount

Cable: Overmolded Polyurethane, Flying Leads with Color-Coded Wires

Housing Material: Stainless Steel, Titanium

Contact Material: Gold-plated Brass

Waterproof Rating: IP68

Mated Pressure Rating: Up to 10,000 PSI (689 Bar)

Depth Rating: Up to 6000m+

Interface Type: AC/DC Compatible

Application: LPM Instrument Panels, ROV/AUV Control, Subsea Sensors, Offshore Monitoring

Certification: ISO9001-2015

Customization: Pin count, cable length, overmolding, strain relief, wire labeling

Place of Origin: Guangdong, China
