LPMBH/IL6-8M/F LPM Series Inline Right Angle Underwater Connector with Dummy Plug

Product Description

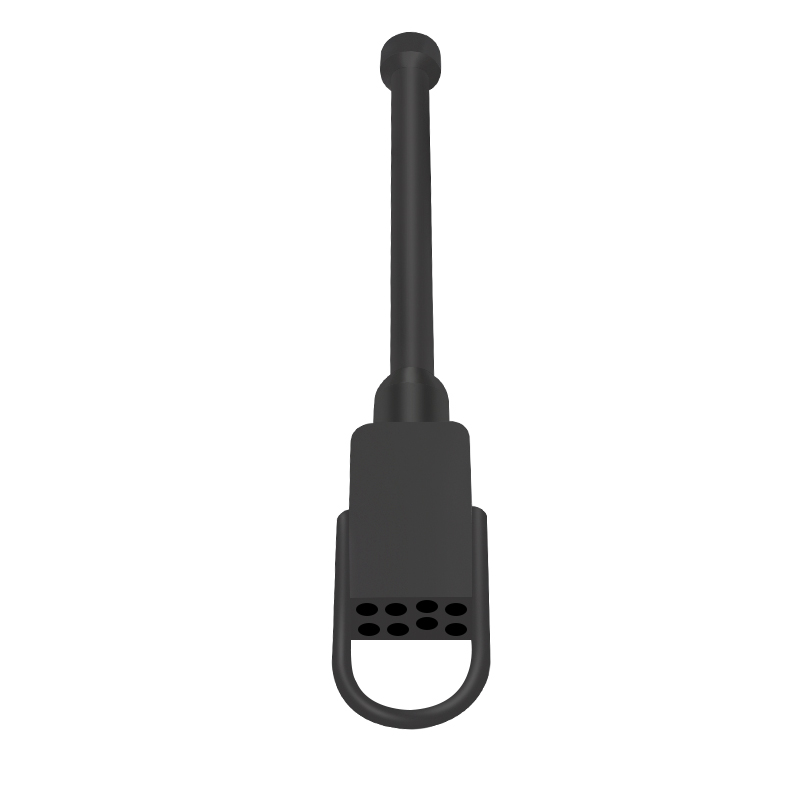

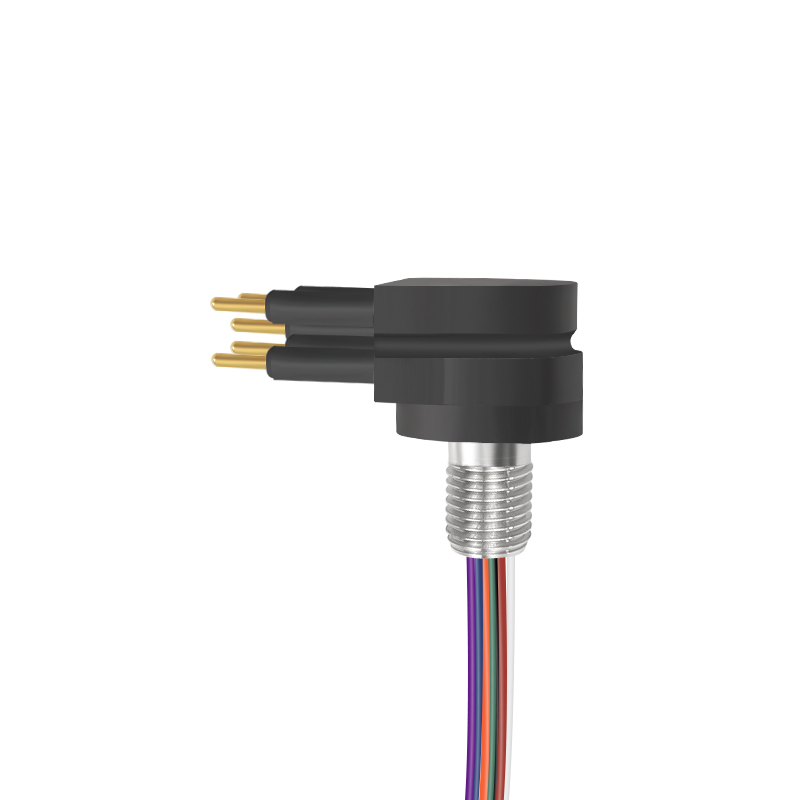

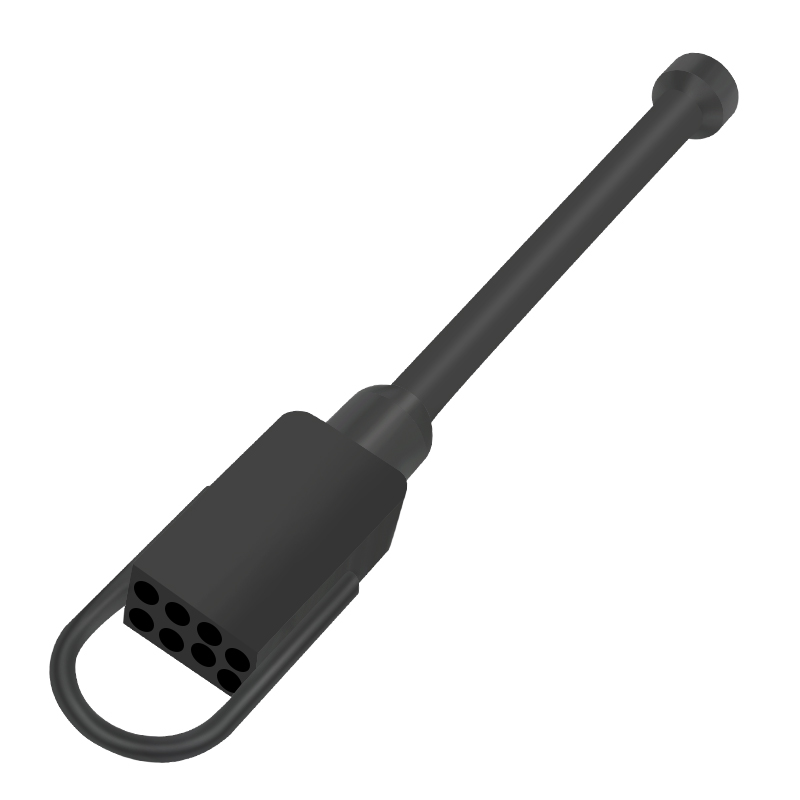

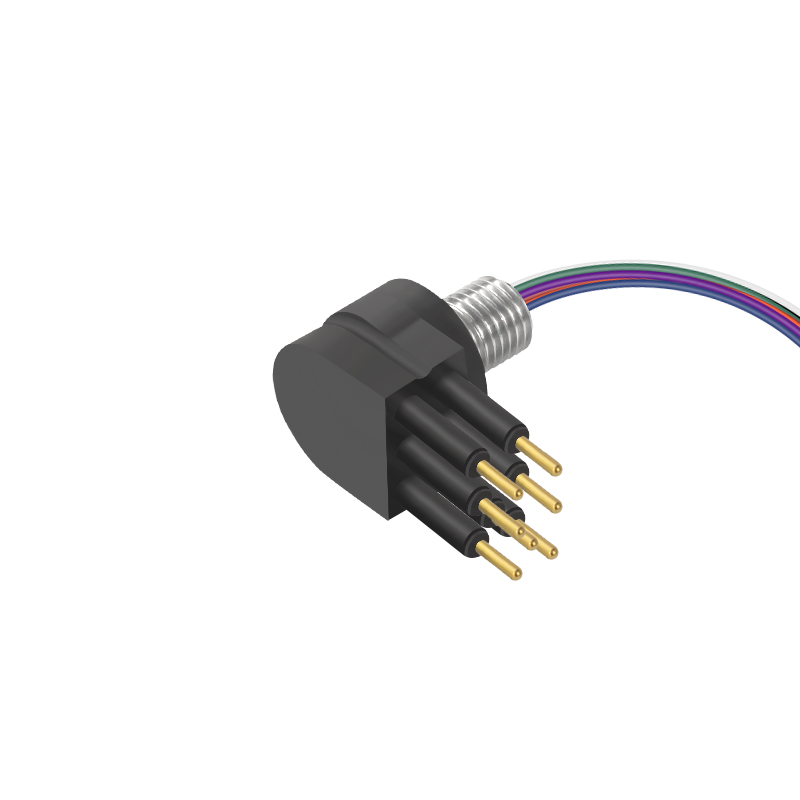

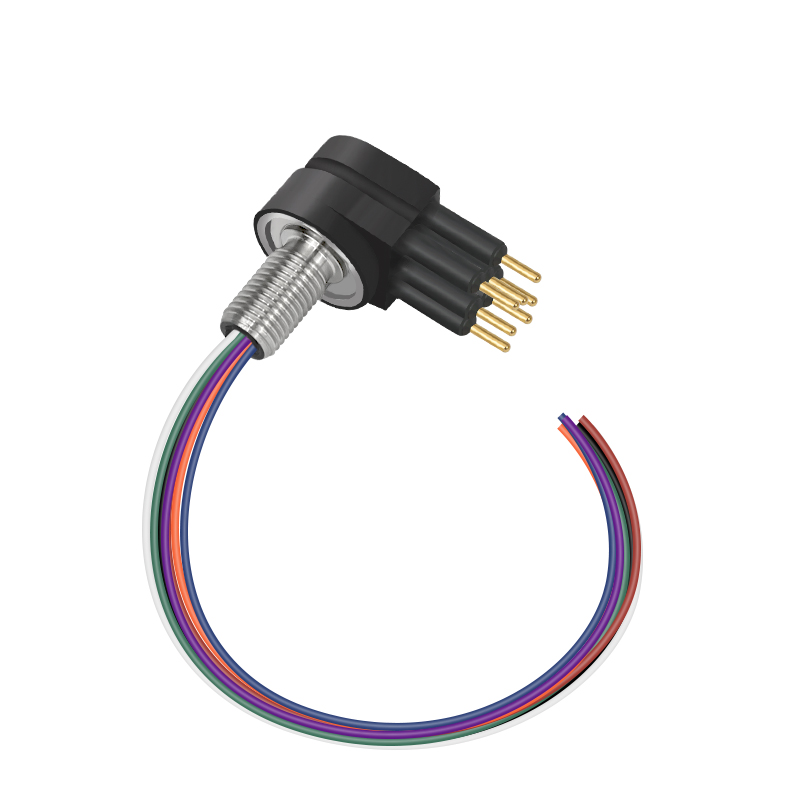

The LPMBH/IL6-8M/F is part of the advanced LPM Series, featuring a right-angle inline underwater connector combined with a protective dummy plug. Designed specifically for compact, flat-form subsea devices and instrument panels, it's highly suitable for challenging marine conditions such as deepsea ROVs, AUVs, and subsea research arrays.

Manufactured using corrosion-resistant stainless steel or titanium and gold-plated brass contacts, this connector ensures long-term electrical stability and corrosion resistance even in saltwater. It supports both AC and DC signals and meets IP68 standards, with pressure resistance up to 10,000 PSI (approx. 689 Bar), guaranteeing safe operation in depths up to 6000 meters.

HYSF provides full customization capability for pin layout, connector orientation, housing material, and cable termination to support the growing demand for high-performance, space-efficient subsea connectivity systems. ISO9001-2015 certified and built for marine-grade durability, the LPMBH/IL6-8M/F ensures dependable performance for critical underwater networks.

Product Parameter

Model: LPMBH/IL6-8M/F

Brand: HYSF

Type: Right Angle Inline Underwater Connector with Dummy Connector

Gender: Female (with Male/Female contact compatibility)

Pins: 6–8 Pin

Shape: Flat / Right-Angle

Housing Material: Stainless Steel, Titanium

Contact Material: Gold-plated Brass

Waterproof Rating: IP68

Mated Pressure Rating: Up to 10,000 PSI (Approx. 689 Bar)

Depth Rating: Up to 6000m

Interface Type: AC/DC Compatible

Application: LPM Instrument Housings, Subsea Sensors, ROV/AUV Connections, Offshore Monitoring Panels

Certification: ISO9001-2015

Customization: Supports custom housing geometry, pin configuration, and interface solutions

Place of Origin: Guangdong, China
