HYSF LPMBH/IL8M/F Custom Flat Bulkhead Right-Angle 8-Pin Underwater Penetrator

Product Description

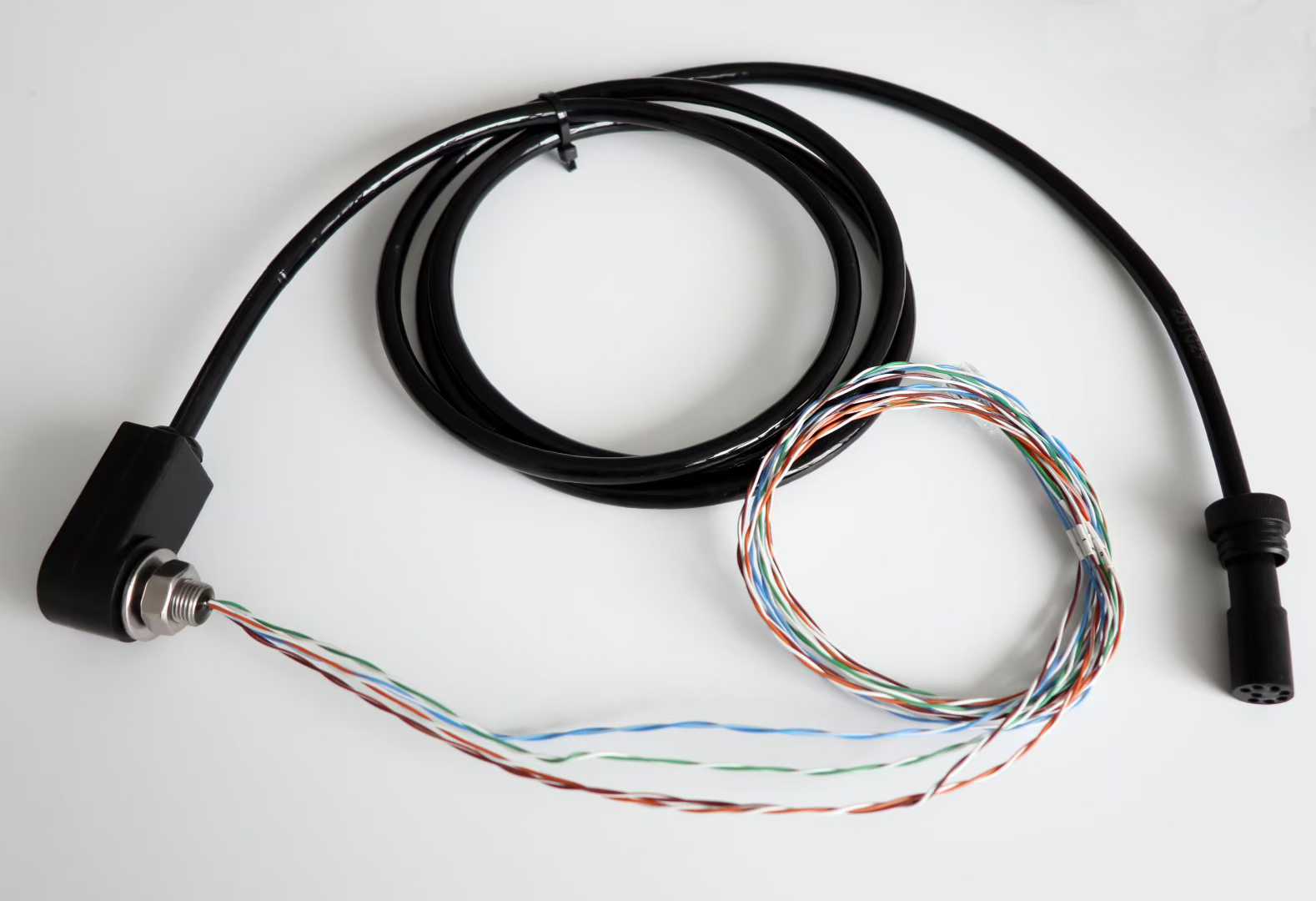

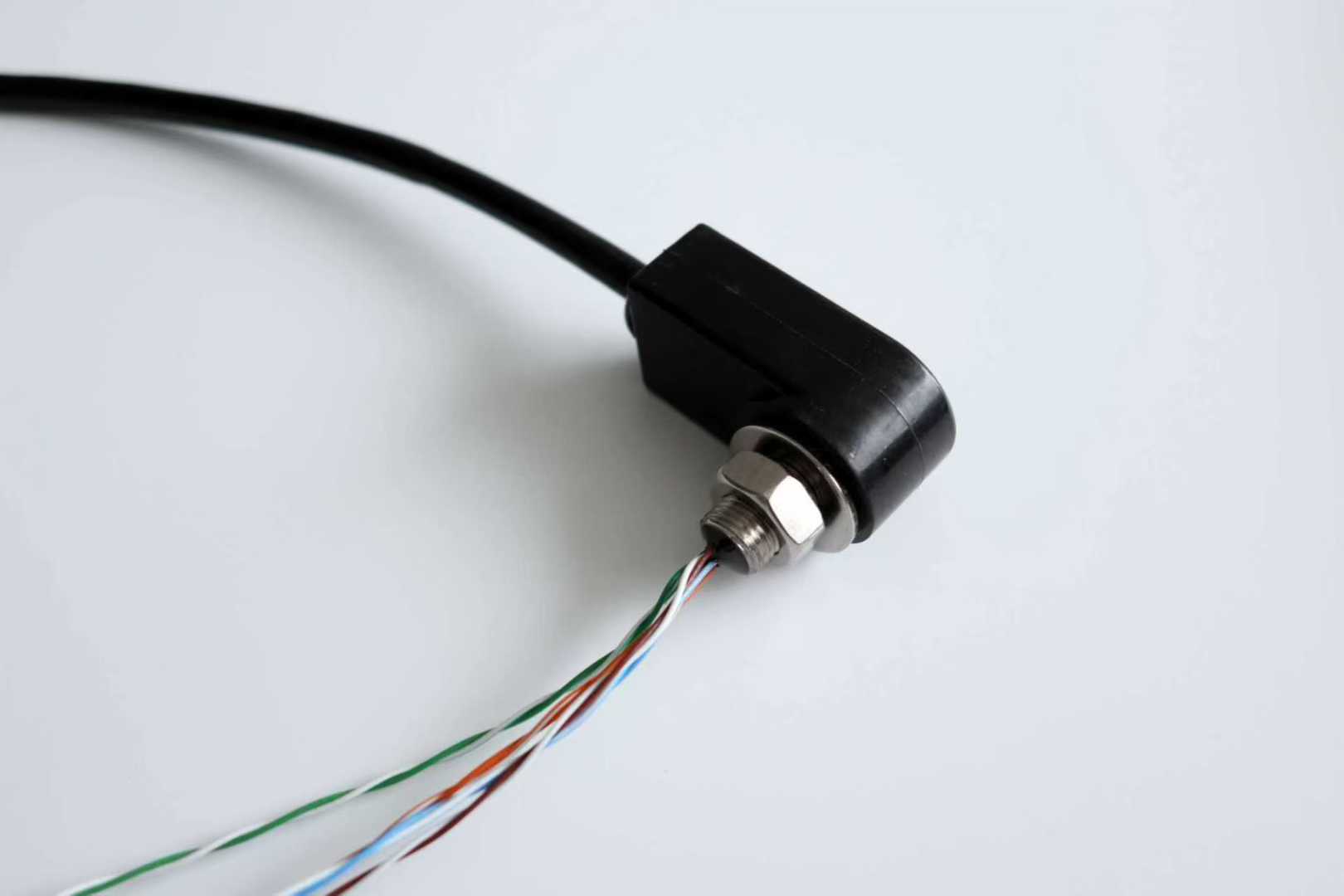

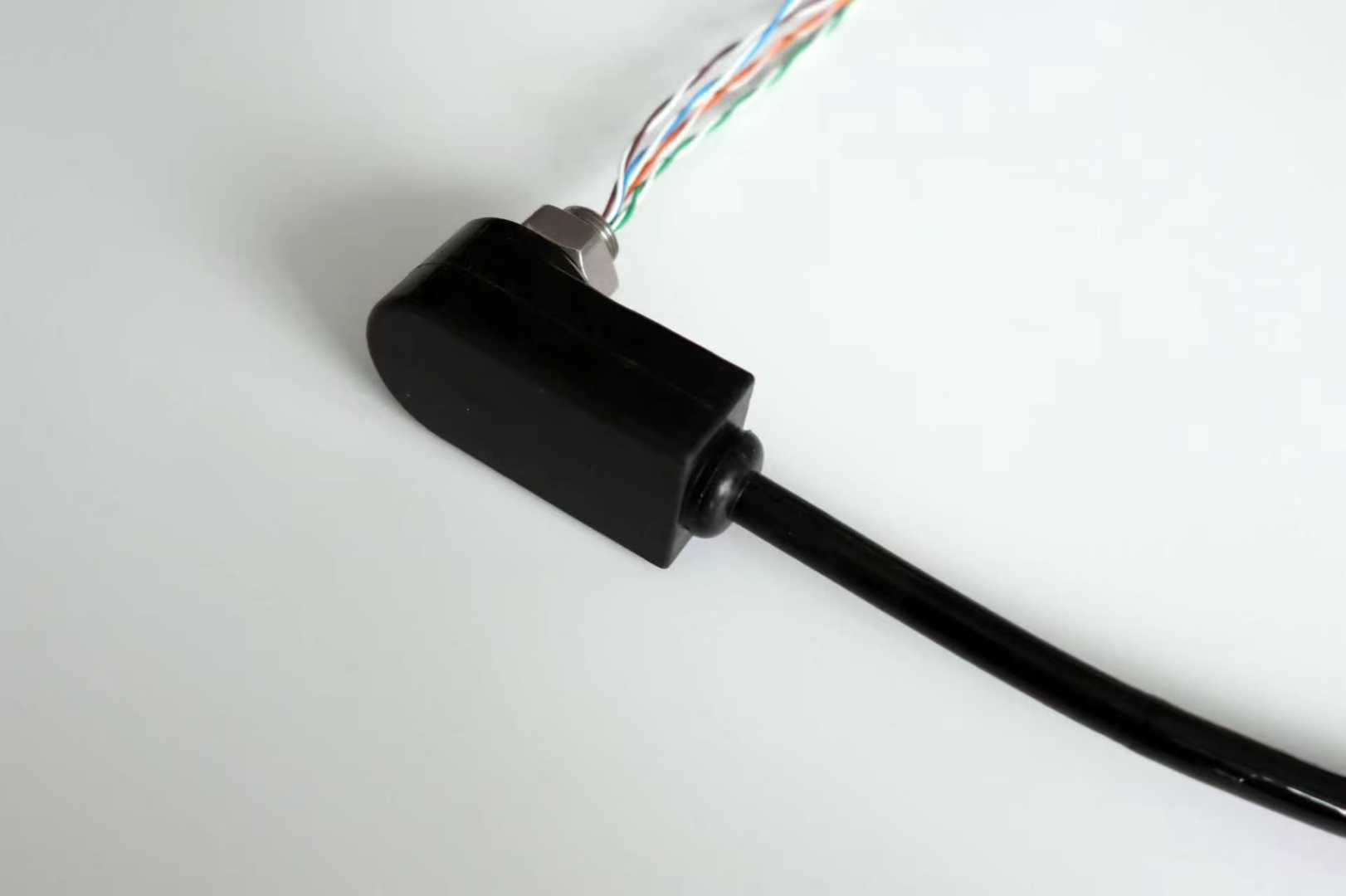

The HYSF LPMBH/IL8M/F is a successfully customized low-profile flat bulkhead penetrator featuring an 8-pin right-angle inline connector. One side terminates in color-coded flying leads with protective sleeving; the opposite side connects via a robust overmolded polyurethane cable—ideal for seamless integration into LPM instrument panels, ROV control enclosures, and space-critical subsea electronics.

Precision-machined from marine-grade stainless steel or titanium with gold-plated brass contacts, it ensures superior corrosion resistance and signal integrity in aggressive saltwater environments. Supports AC/DC transmission, IP68 sealing, and mated pressure ratings up to 10,000 PSI (689 Bar), guaranteeing reliable performance at depths beyond 6000 meters.

This custom flat penetrator was developed to minimize housing protrusion while enabling direct panel mounting and flexible cable routing. HYSF provides full customization in pin count, cable length, overmolding, and wire labeling. ISO9001-2015 certified and field-proven for mission-critical underwater connectivity.

Product Parameter

Model: LPMBH/IL8M/F

Brand: HYSF

Type: Custom Flat Bulkhead Right-Angle Penetrator

Gender: Female Bulkhead → Male Inline Compatible

Pins: 8 Pin

Shape: Flat / Right-Angle Low-Profile

Termination: Side A: Color-Coded Flying Leads; Side B: Overmolded PU Cable

Housing Material: Stainless Steel, Titanium

Contact Material: Gold-plated Brass

Waterproof Rating: IP68

Mated Pressure Rating: Up to 10,000 PSI (689 Bar)

Depth Rating: Up to 6000m+

Interface Type: AC/DC Compatible

Application: LPM Instrument Panels, ROV/AUV Enclosures, Subsea Sensors, Compact Control Modules

Certification: ISO9001-2015

Customization: Pin count, cable length, overmolding, wire sleeving, panel cutout

Place of Origin: Guangdong, China
