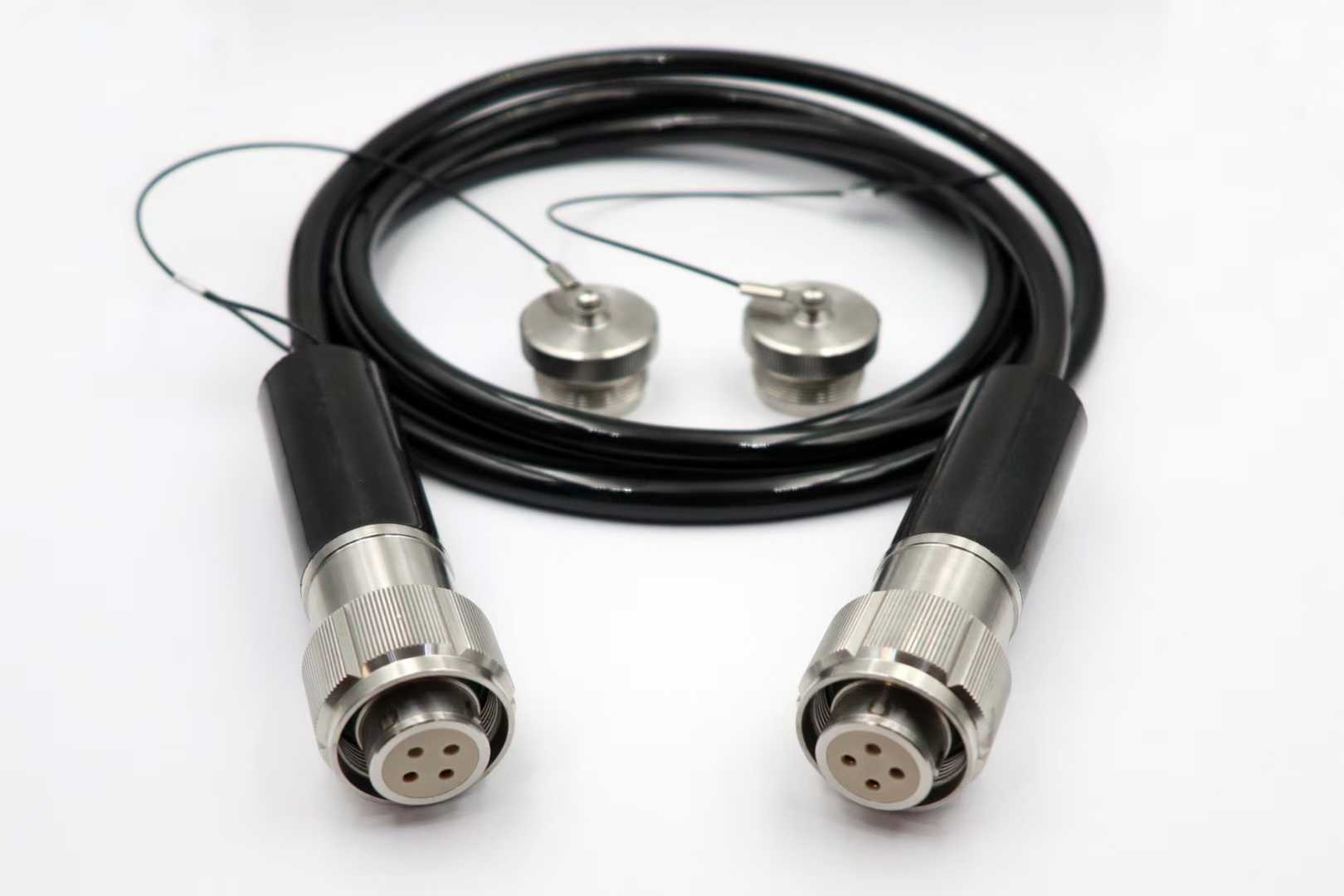

HYSF MCBH-HYBRID-4/2 Photoelectric Waterproof Connector (4 Electrical + 2 Fiber Optic Pins)

Product Description

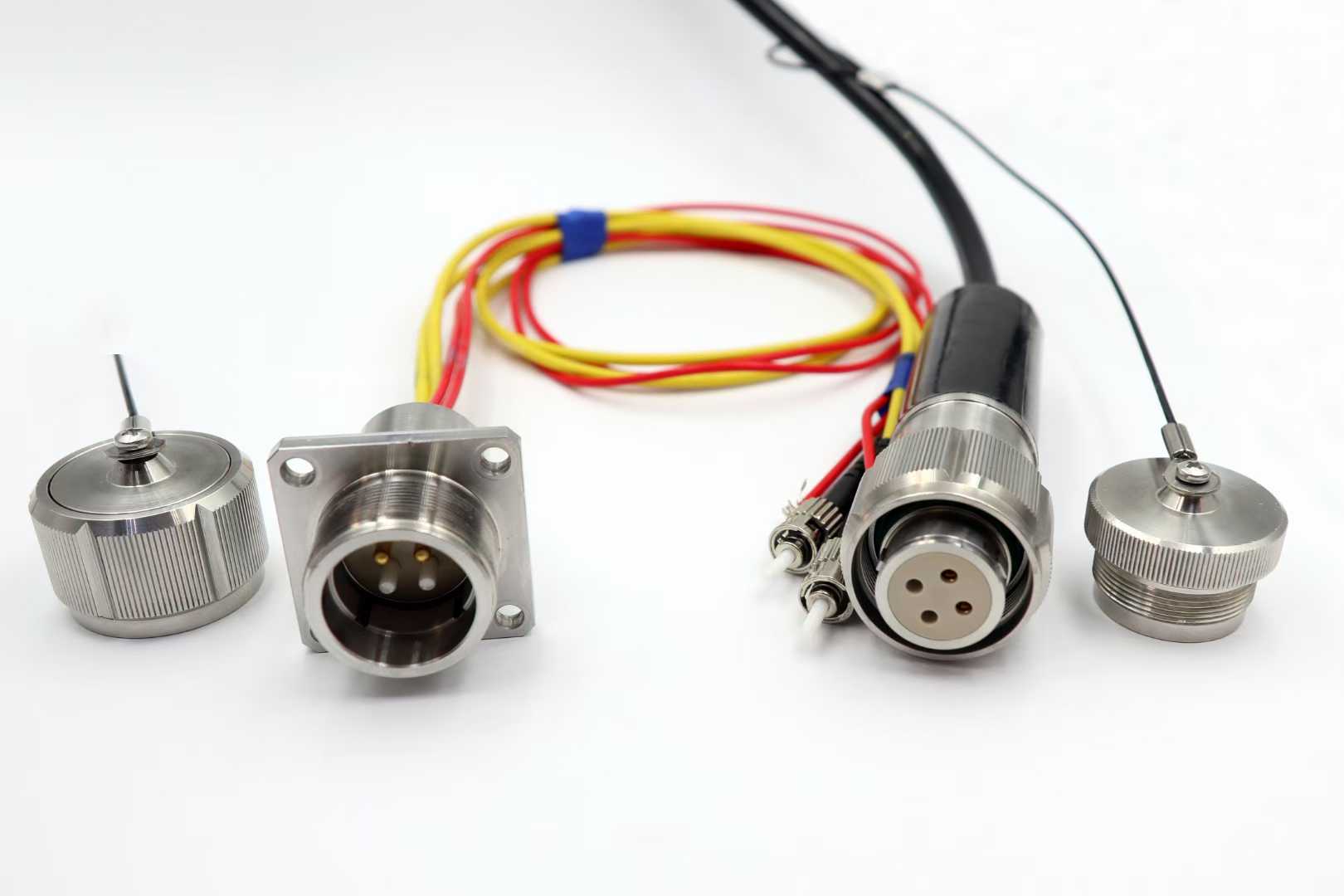

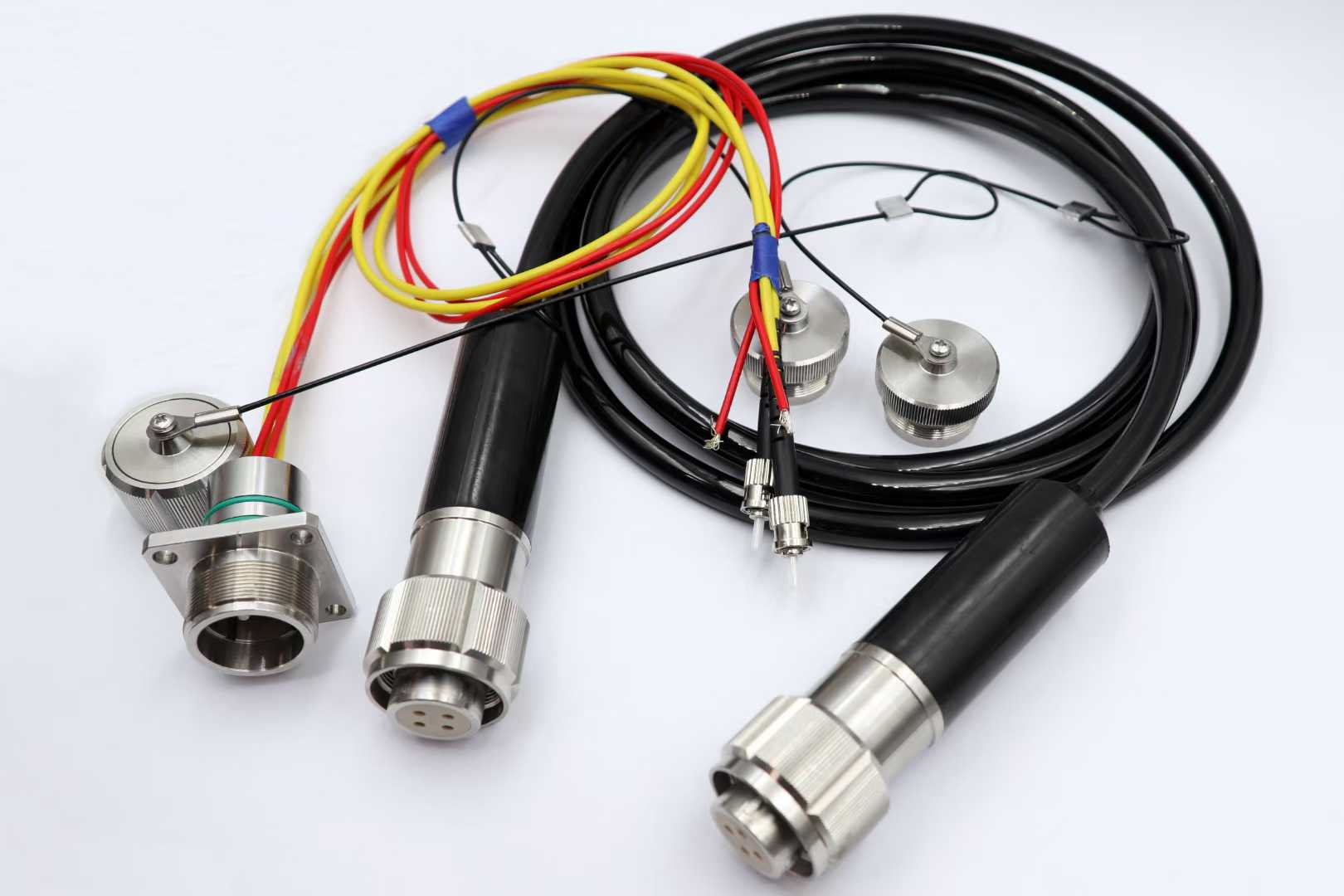

The HYSF MCBH-HYBRID-4/2 is a successfully customized **hybrid photoelectric waterproof connector** integrating **4 high-current electrical pins** (up to 10A each) with **2 multimode fiber optic channels** for simultaneous power, signal, and high-bandwidth data transmission. Featuring a **316L stainless steel bulkhead** with **color-coded flying leads** (red/yellow/blue for electrical, black/white for fiber), it's optimized for subsea imaging systems, fiber-linked sensors, and ROV camera setups.

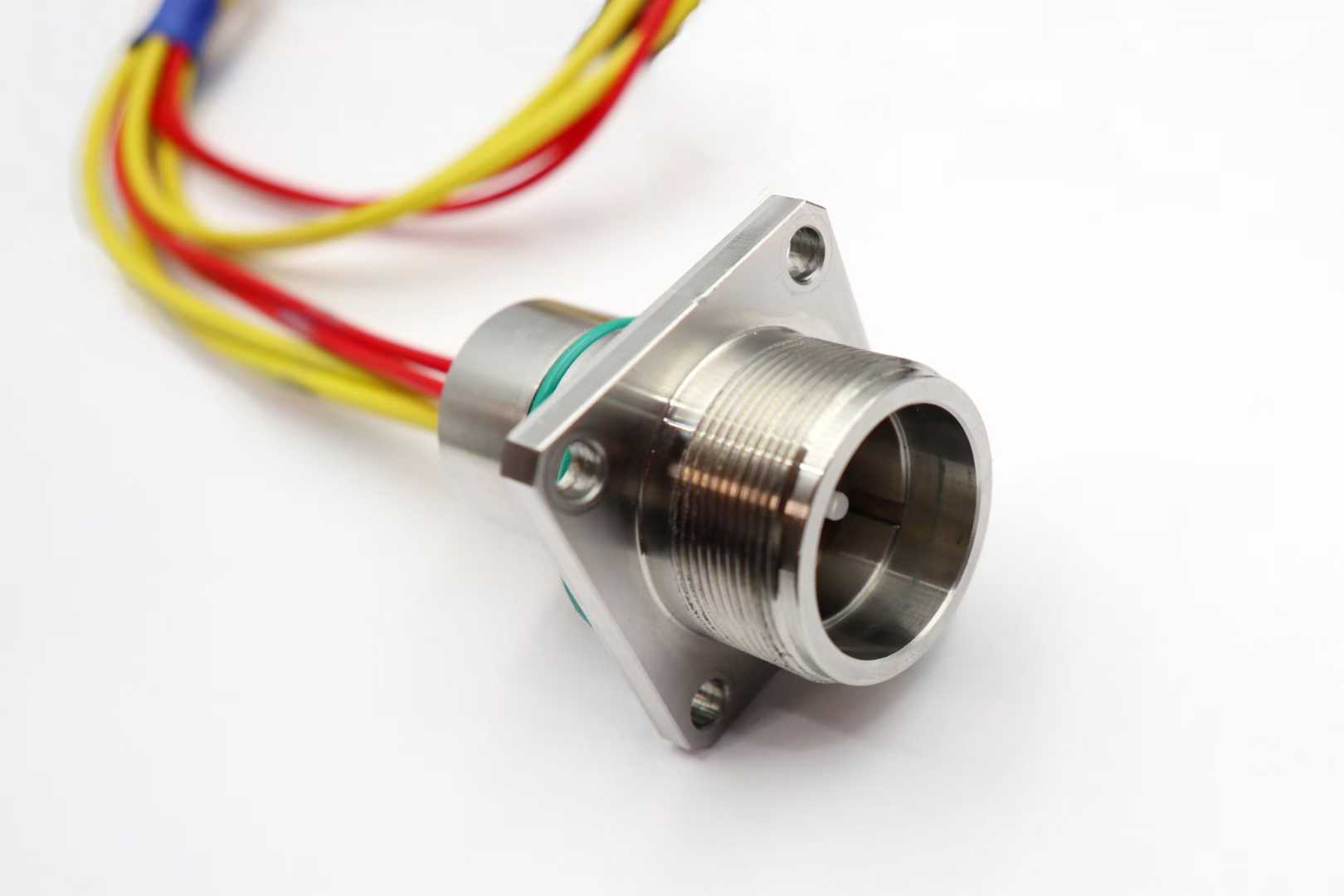

Precision-engineered with **gold-plated brass electrical contacts** and **precision-polished ceramic ferrules** for low-loss optical performance (<0.3 dB insertion). Triple O-ring sealing and epoxy potting ensure **IP68 waterproofing** and **60 MPa (8702 PSI / ~6000 m depth)** pressure resistance. The square flange mount includes 4x M3 holes for secure panel integration, with optional locking sleeve for vibration-prone environments.

This photoelectric hybrid was developed to simplify cabling in mixed-media subsea applications, reducing connector count and improving system efficiency. HYSF offers full customization in electrical/fiber ratio, cable length, optical type (multi/single mode), and pin mapping. ISO9001-2015 certified and field-proven in deepsea video and sensor networks.

Product Parameter

Model: MCBH-HYBRID-4/2

Brand: HYSF

Type: Hybrid Photoelectric Waterproof Connector

Configuration: 4 Electrical Pins + 2 Fiber Optic Channels

Gender: Female Bulkhead (Male Inline Compatible)

Electrical: Gold-plated Brass, 10A per Pin, 600V AC/DC

Optical: Multimode Fiber (50/125 μm), <0.3 dB Loss

Housing Material: 316L Stainless Steel

Flange: Square, 4x M3 Mounting Holes

Sealing: Triple O-Ring + Epoxy Potting

Leads: Color-Coded PTFE (Red/Yellow/Blue Electrical, Black/White Fiber)

Waterproof Rating: IP68

Mated Pressure Rating: 60 MPa (8702 PSI / ~6000 m)

Depth Rating: Up to 6000m+

Interface Type: Power/Signal + Optical Data (HD Video)

Application: Subsea Cameras, Fiber Optic Sensors, ROV Video Feeds, Deepwater Imaging

Certification: ISO9001-2015

Customization: Hybrid ratio, fiber type, pin current, cable assembly, locking sleeve

Compatibility: Subconn® MCBH Hybrid Series

Place of Origin: Guangdong, China
