HYSF MCBH Hybrid Multi-Fiber is a custom photoelectric watertight connector with multiple electrical pins and high-density fiber optic channels. IP68-rated, 10,000 PSI tested, ideal for underwater cameras, LED lights, ROV imaging systems, and high-bandwidth subsea video transmission.

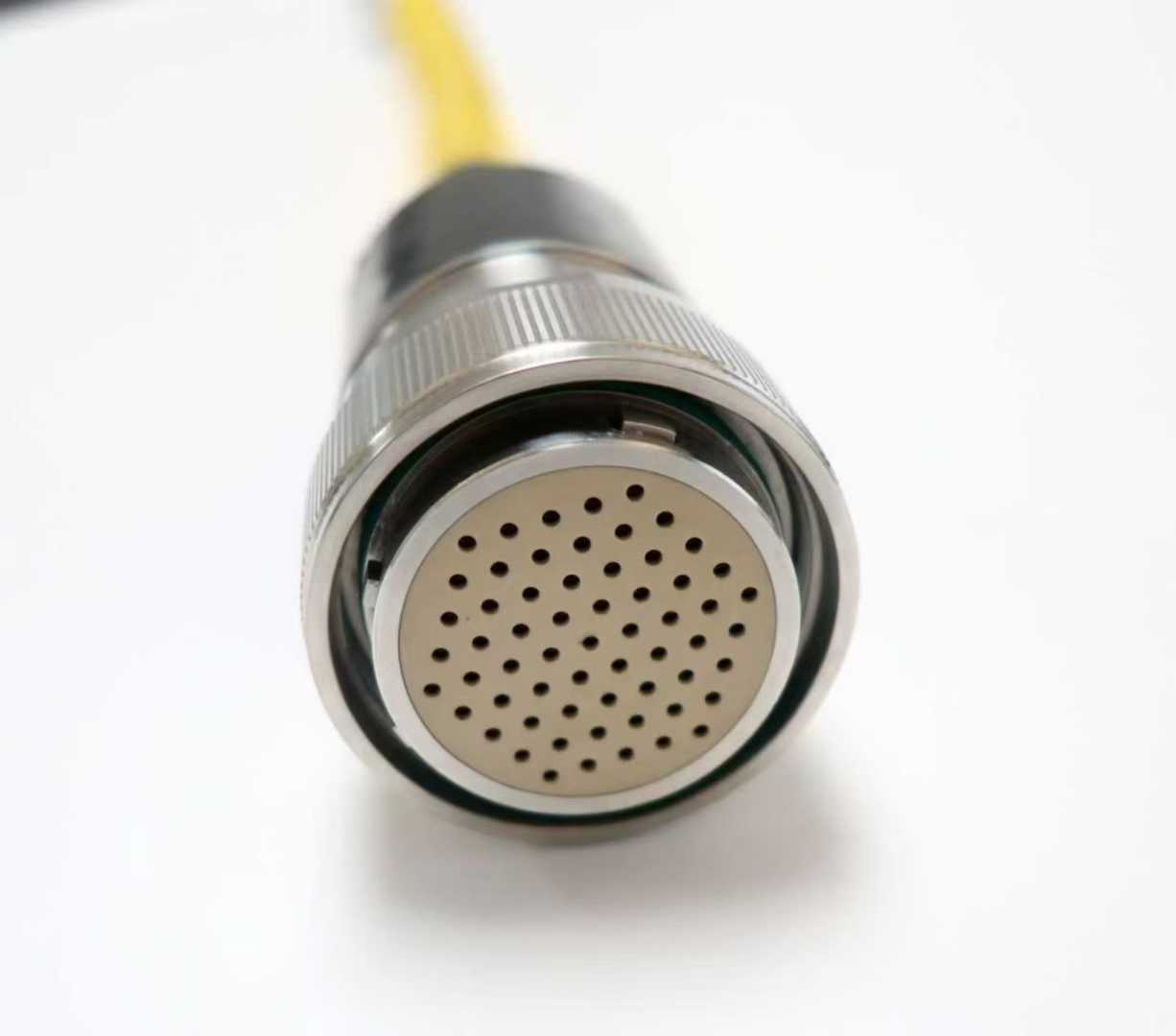

The HYSF MCBH Hybrid Multi-Fiber is a successfully customized hybrid underwater connector integrating electrical power/signal pins with high-density multimode fiber optic channels for advanced photoelectric transmission. Featuring a rugged stainless steel body with a honeycomb-patterned multi-ferrule face for superior sealing, it's paired with a yellow armored cable—optimized for powering and high-bandwidth data-linking underwater cameras, high-intensity LED lights, ROV manipulators, and subsea observation systems.
Engineered with gold-plated brass electrical contacts and precision-polished multi-ferrule array, it ensures ultra-low-loss optical performance and reliable electrical connectivity in corrosive saltwater. Supports AC/DC power up to 10A total and fiber bandwidth for 4K video, IP68 waterproofing, and mated pressure up to 10,000 PSI (689 Bar), enabling high-resolution imaging at depths beyond 6000 meters.
This multi-fiber hybrid was developed to support demanding mixed-media applications, reducing connector complexity and enhancing data throughput. HYSF offers full customization in electrical/fiber count, cable armor, connector gender, and optical specifications. ISO9001-2015 certified and field-proven in professional offshore and deepsea operations.
Model: MCBH Hybrid Multi-Fiber
Brand: HYSF
Type: High-Density Hybrid Photoelectric Watertight Connector
Configuration: 4 Electrical Pins + 12 Fiber Optic Channels
Gender: Male Inline
Thread Standard: 7/16-20 UNF-2A (Subconn® Compatible)
Housing Material: Stainless Steel
Contact Material: Gold-plated Brass (Electrical), Multimode Fiber Array (Optical)
Waterproof Rating: IP68
Mated Pressure Rating: Up to 10,000 PSI (689 Bar)
Depth Rating: Up to 6000m+
Electrical: AC/DC Compatible, 10A Total
Optical: Multimode Fiber Array, Ultra-Low Insertion Loss
Application: Underwater Cameras, Subsea LED Lights, ROV/ROV Video Systems, High-Bandwidth Photoelectric Imaging
Certification: ISO9001-2015
Customization: Hybrid configuration, fiber count/type, cable armor, power rating
Compatibility: Subconn® MCBH hybrid series interchangeability
Place of Origin: Guangdong, China
