HYSF MCBH/IL4M/F Metal-Housed High-Pressure Underwater Connector with Overmolded Cable

Product Description

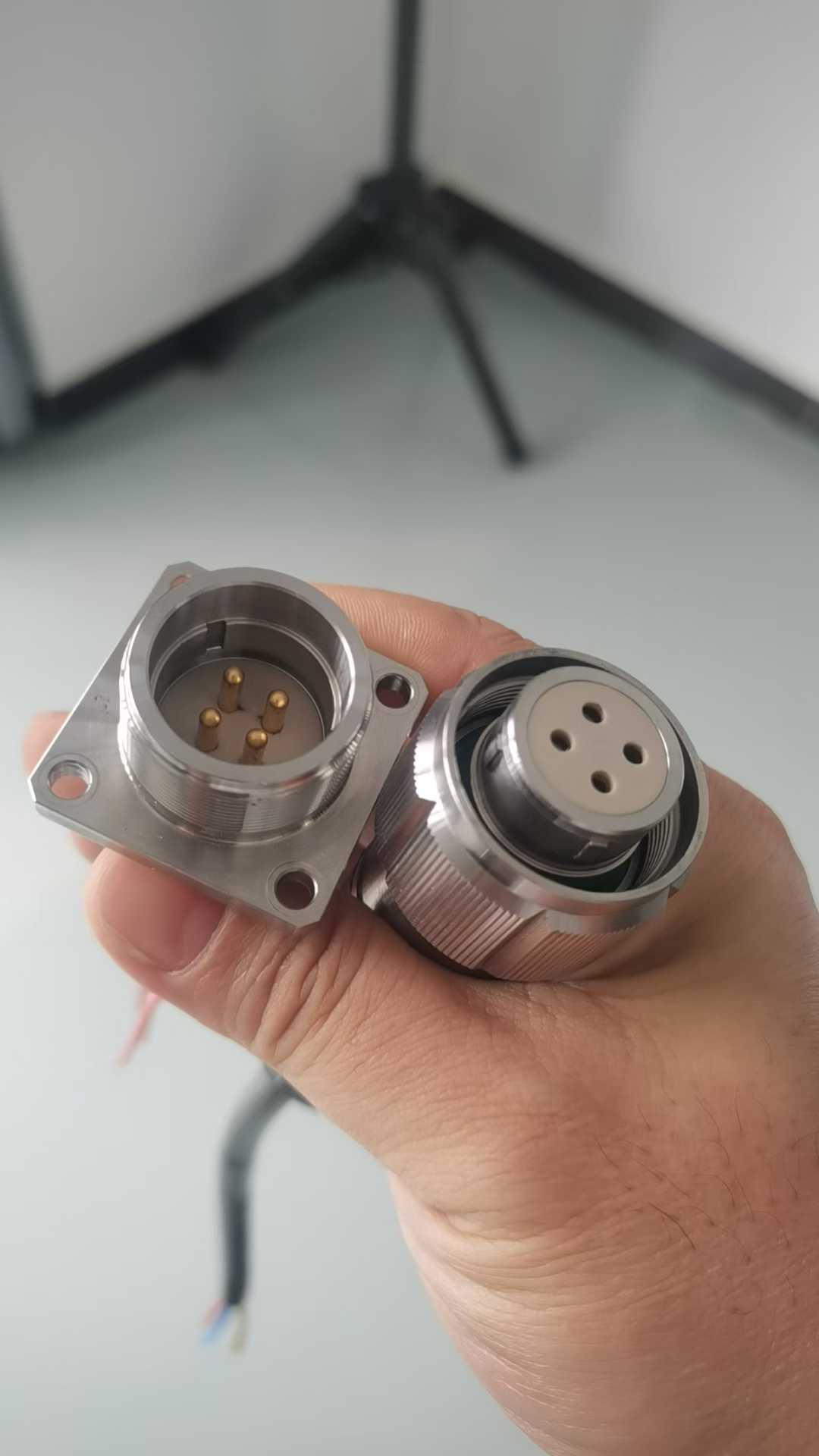

The HYSF MCBH/IL4M/F is a successfully customized **all-metal underwater connector** featuring a stainless steel bulkhead mount and inline overmolded cable assembly. Engineered with **4 high-current gold-plated pins** and a **robust polyurethane overmold**, it delivers reliable power and signal transmission in extreme deepwater environments—perfect for ROV propulsion, AUV battery interfaces, and high-reliability subsea control systems.

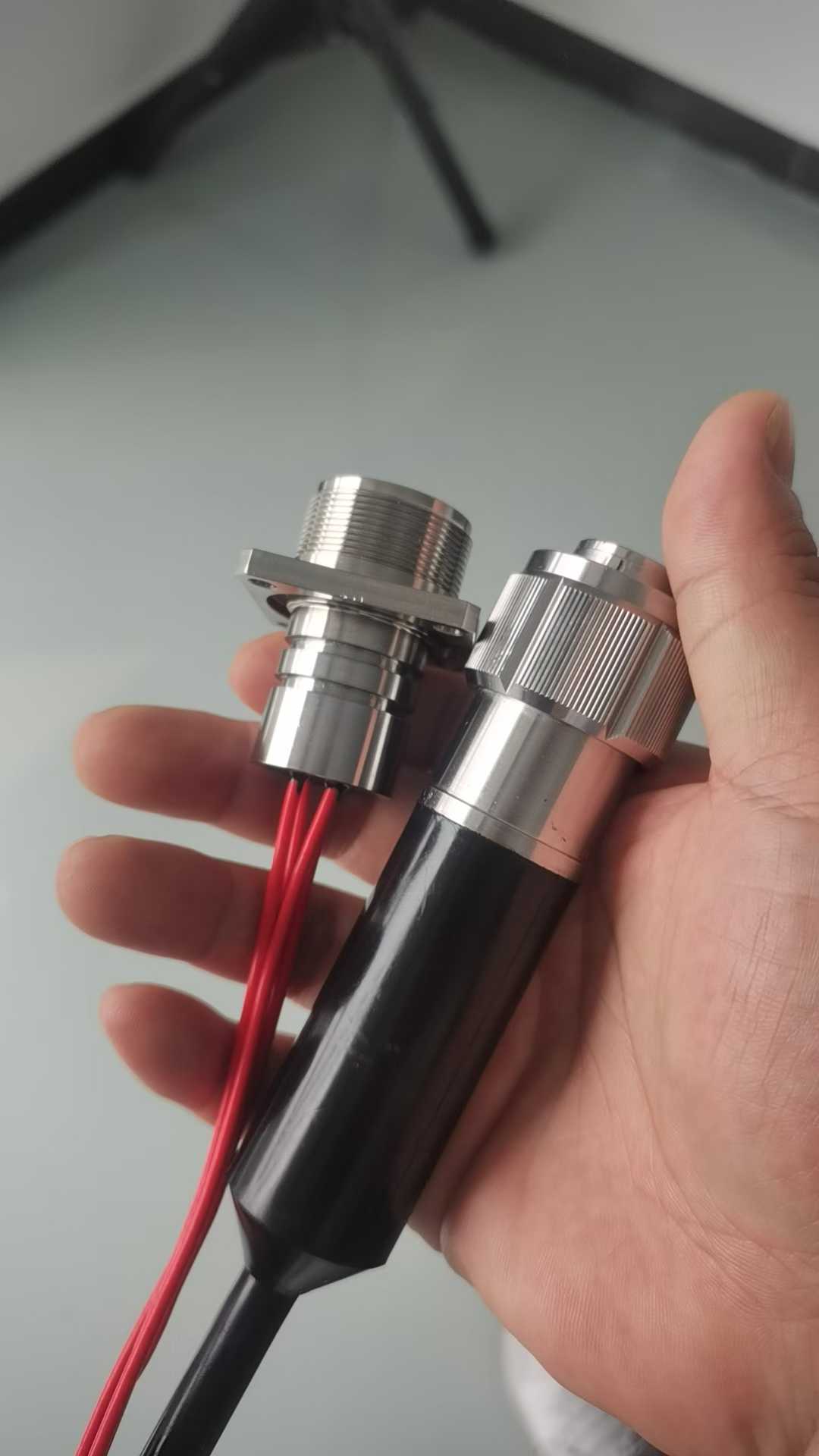

Precision-machined from **316L stainless steel** with triple O-ring sealing and thick-walled construction, it withstands **60 MPa (8702 PSI / ~6000 m depth)** while maintaining full electrical integrity. The overmolded cable includes **red PTFE-insulated flying leads** on the bulkhead side and a **flexible black PU jacket** with strain relief on the inline side. Fully compatible with Subconn® MCBH/MCIL series.

This metal-housed solution was developed for maximum durability and pressure resistance in harsh saltwater. HYSF offers full customization in pin count, current rating, cable length, and overmolding. ISO9001-2015 certified and field-proven in 6000m+ deployments.

Product Parameter

Model: MCBH/IL4M/F

Brand: HYSF

Type: Metal-Housed Underwater Connector with Overmolded Cable

Gender: Female Bulkhead → Male Inline

Pins: 4 Pin (2–12 Pin Custom)

Current Rating: Up to 30A per Pin (Customizable)

Voltage Rating: 600V AC/DC

Sealing: Triple O-Ring (Face + Radial + Axial)

Housing Material: 316L Stainless Steel

Contact Material: Gold-plated Brass

Cable: Black PU Overmolded + Red PTFE Flying Leads

Waterproof Rating: IP68

Mated Pressure Rating: 60 MPa (8702 PSI / ~6000 m)

Depth Rating: Up to 6000m+

Operating Temperature: -20°C to 80°C

Interface Type: Power & Signal Compatible

Application: ROV Thrusters, AUV Power Links, Subsea Control Modules, Deepsea Sensors

Certification: ISO9001-2015

Customization: Pin count, current/voltage, cable length, overmold color, locking sleeve

Compatibility: Subconn® MCBH/MCIL Series

Place of Origin: Guangdong, China
