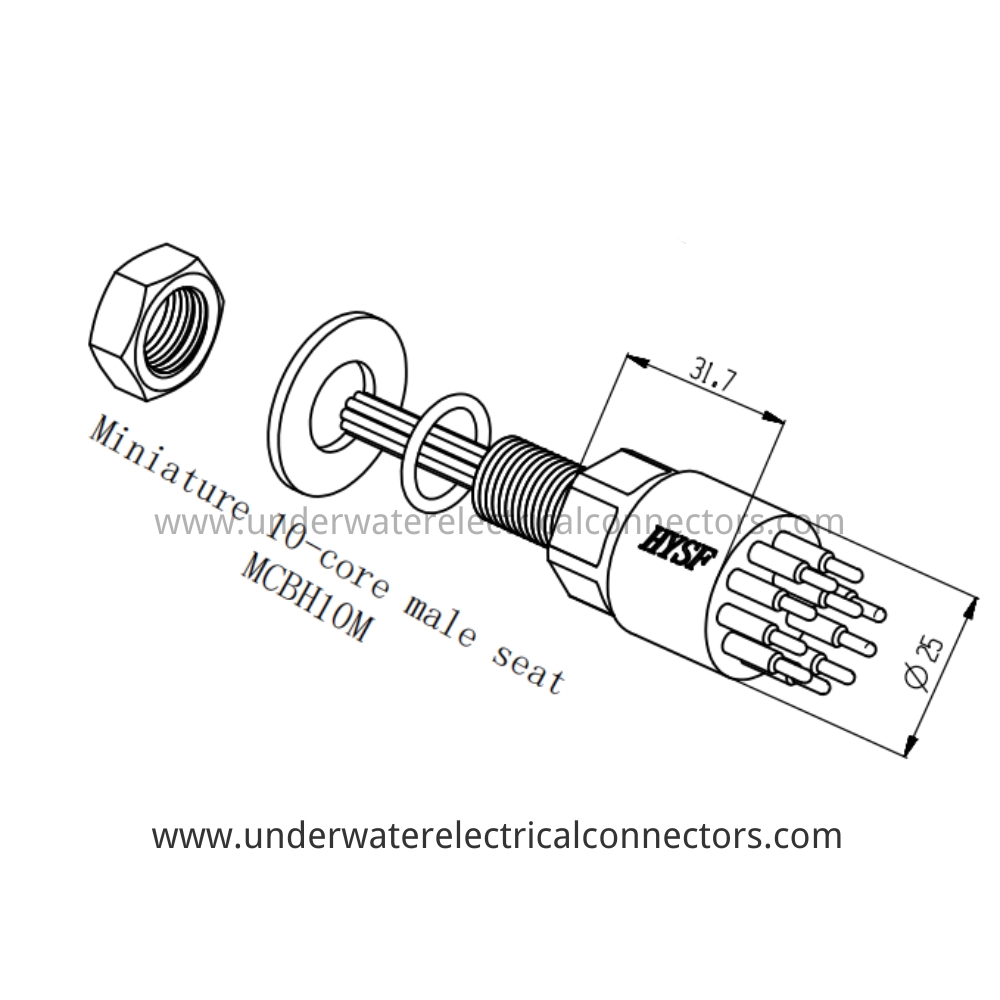

HYSF MCBH10M is a miniature 10-pin male bulkhead connector with Ø15.7 mm body. IP68 rated, 60 MPa tested, designed for ultra-high-density micro-ROVs, AUV multi-sensor hubs, 1000BASE-T + power feedthroughs, and compact deepsea instrumentation up to 6000m.
The HYSF MCBH10M packs an industry-leading 10 electrical channels into the same ultra-compact Ø15.7 mm Micro envelope, making it the highest-density male bulkhead connector available under 20 mm diameter. With only 31.7 mm mated length, it is perfect for the most space-constrained Gigabit Ethernet + power or multi-sensor penetrations.
Precision-machined from marine-grade 316L stainless steel with gold-plated brass pins, double O-ring sealing, and includes hex nut + washer for reliable panel mounting. Pre-terminated with 10 color-coded PTFE leads for straightforward internal wiring.
Ideal for advanced observation-class ROVs, deep-rated multi-sensor pods, Ethernet + power distribution panels, and compact AUV pressure housings. ISO9001-2015 certified with 100% hyperbaric testing.
Model: MCBH10M
Brand: HYSF
Type: Miniature 10-Core Male Bulkhead Connector
Gender: Male
Pin Count: 10
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Body Diameter: Ø15.7 mm
Mated Length: 31.7 mm
Mounting: M16 Thread with Hex Nut & Washer
Cable: Pre-terminated 10-color PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet + Power Penetrators, Ultra-High-Density ROV Ports, AUV Multi-Sensor Bulkheads, Deepsea Feedthrough
Certification: ISO9001-2015
Compatibility: Subconn Micro Series 10-pin / MCIL10F / MCBH10F
Place of Origin: Guangdong, China
