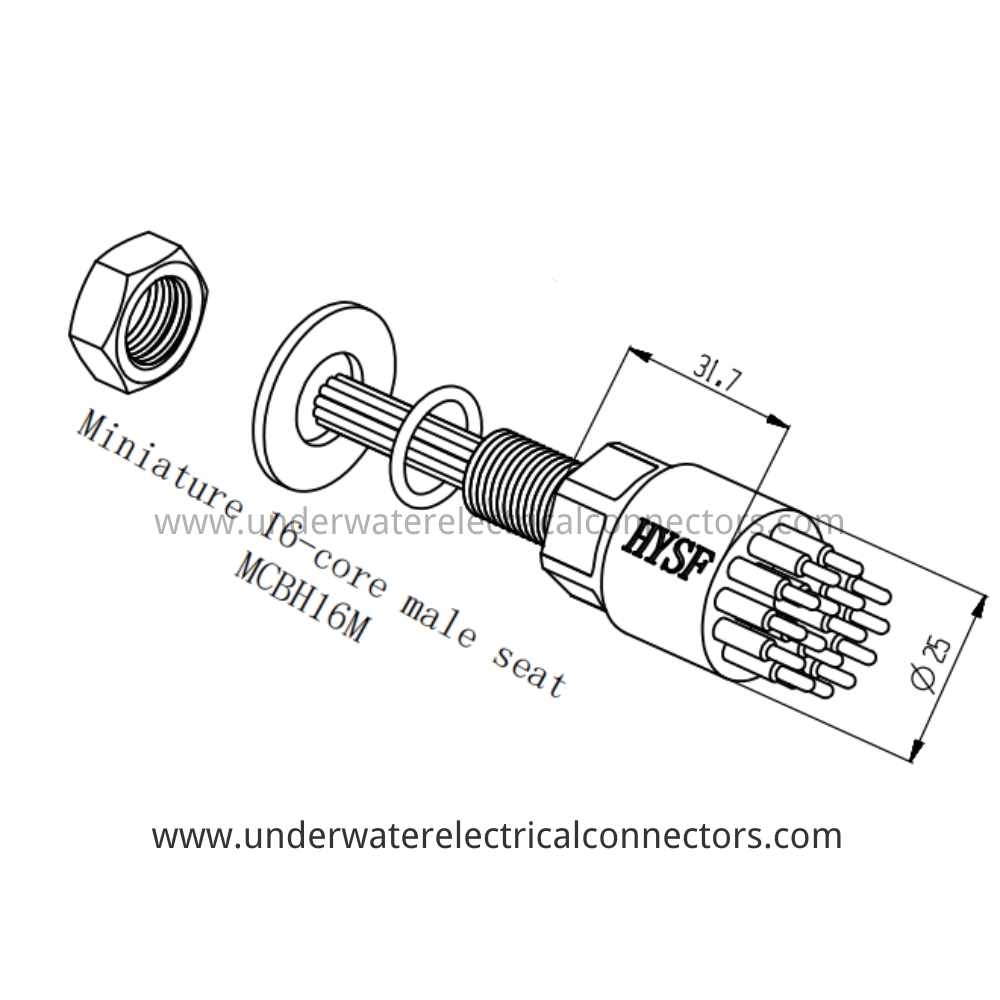

HYSF MCBH16M is the highest-density 16-pin male bulkhead connector in the Micro series with Ø15.7 mm body. IP68 rated, 60 MPa tested, designed for maximum Gigabit Ethernet + multi-power + multi-sensor feedthroughs on micro-ROVs, AUVs, deepsea switch pods and ultra-high-channel instrumentation up to 6000m.
The HYSF MCBH16M represents the absolute pinnacle of the Micro series — an astonishing 16 independent channels packed into the same Ø15.7 mm envelope, making it the highest pin-count male bulkhead connector under 20 mm in existence. With only 31.7 mm mated length, it offers the ultimate solution for the most demanding space-constrained penetrations.
Precision-machined marine-grade 316L stainless steel with gold-plated brass pins, double O-ring sealing, and supplied with hex nut + washer for reliable panel mounting. Pre-terminated with 16 color-coded PTFE leads for instant internal wiring.
Essential for next-generation observation-class ROVs, ultra-compact AUV pressure housings, deep-rated multi-sensor hubs, and Ethernet + power distribution panels requiring maximum channel density. ISO9001-2015 certified with 100% hyperbaric testing.
Model: MCBH16M
Brand: HYSF
Type: Miniature 16-Core Male Bulkhead Connector
Gender: Male
Pin Count: 16
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Body Diameter: Ø15.7 mm
Mated Length: 31.7 mm
Mounting: M16 Thread with Hex Nut & Washer
Cable: Pre-terminated 16-color PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Maximum-Density Gigabit Ethernet + Multi-Power Penetrators, Extreme ROV Ports, AUV Sensor Hubs, Deepsea Feedthrough
Certification: ISO9001-2015
Compatibility: Subconn Micro Series 16-pin / MCIL16F / MCBH16F
Place of Origin: Guangdong, China
