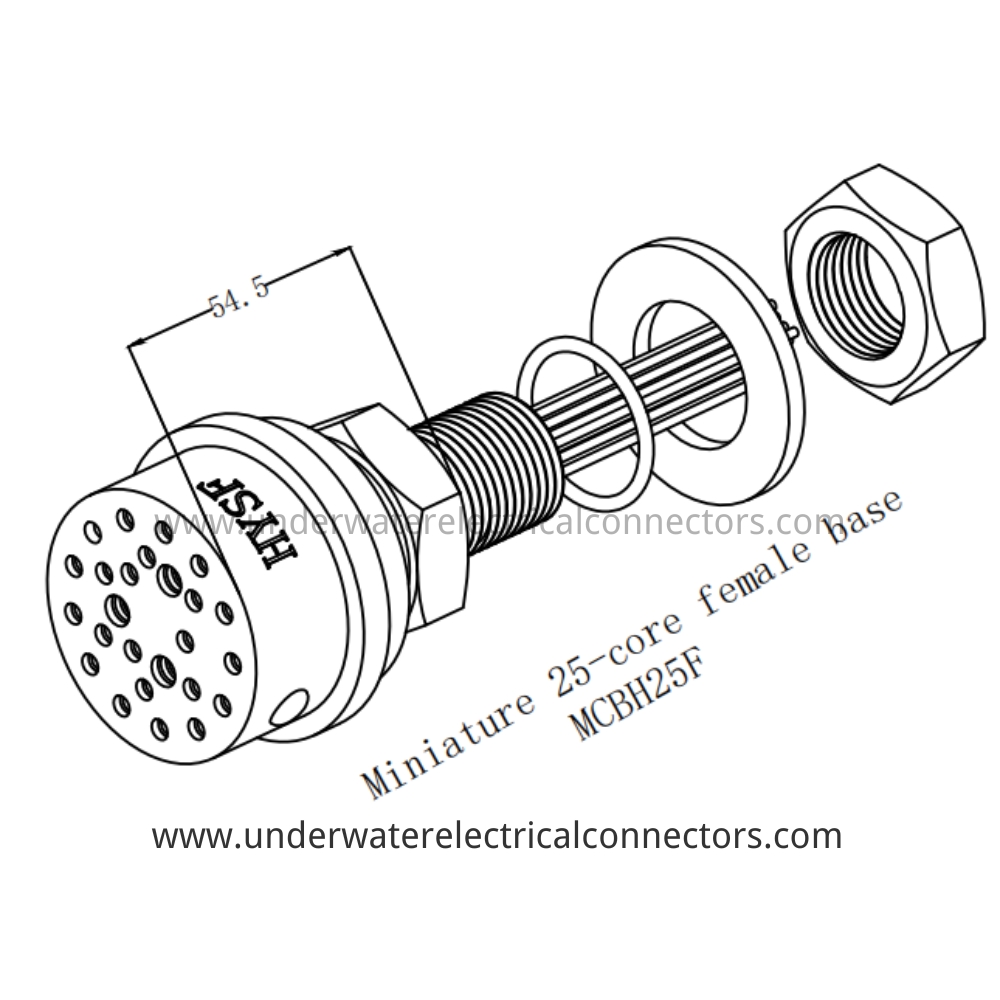

HYSF MCBH25F Miniature 25-core female base Underwater Connector

Product Description

The HYSF MCBH25F represents the absolute pinnacle of subsea connector density — an astonishing 25 independent channels packed into the identical Ø15.7 mm Micro envelope, making it the highest pin-count female bulkhead connector ever produced under 20 mm diameter. At only 54.5 mm mated length, it delivers unmatched channel density for the most demanding payloads.

Precision-machined marine-grade 316L stainless steel with gold-plated brass sockets, double O-ring sealing, and supplied with stainless hex nut + washer for reliable panel mounting. Pre-terminated with 25 color-coded PTFE leads for instant internal wiring.

The ultimate penetrator for next-generation observation-class ROVs, ultra-compact AUV housings, deep-rated multi-sensor hubs, and Ethernet + power distribution panels where maximum channel count in minimum space is critical. ISO9001-2015 certified with 100% hyperbaric validation.

Product Parameter

Model: MCBH25F

Brand: HYSF

Type: Miniature 25-Core Female Bulkhead Connector

Gender: Female

Pin Count: 25

Contact Material: Gold-plated Brass

Current Rating: 10A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Sealing: Double O-Ring

Body Diameter: Ø15.7 mm

Mated Length: 54.5 mm

Mounting: M16 Thread with Hex Nut & Washer

Cable: Pre-terminated 25-color PTFE Leads

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Ultimate-Density Gigabit Ethernet + Multi-Power + Multi-Sensor Penetrators, Extreme ROV Ports, AUV Maximum-Channel Hubs, Deepsea Feedthrough

Certification: ISO9001-2015

Compatibility: Subconn Micro Series 25-pin / MCIL25M

Place of Origin: Guangdong, China
