HYSF MCBHRA2F is a 90-degree right-angled 2-pin female bulkhead connector with Ø15.7 mm body. IP68 rated, 60 MPa tested, designed for space-critical ROV enclosures, AUV sidewall ports, and tight subsea control modules up to 6000m.
The HYSF MCBHRA2F provides a compact right-angled 2-core female bulkhead solution for challenging underwater layouts. Its 90-degree socket orientation minimizes protrusion by 65% versus inline models, allowing flush mounting on curved or congested pressure vessel walls.

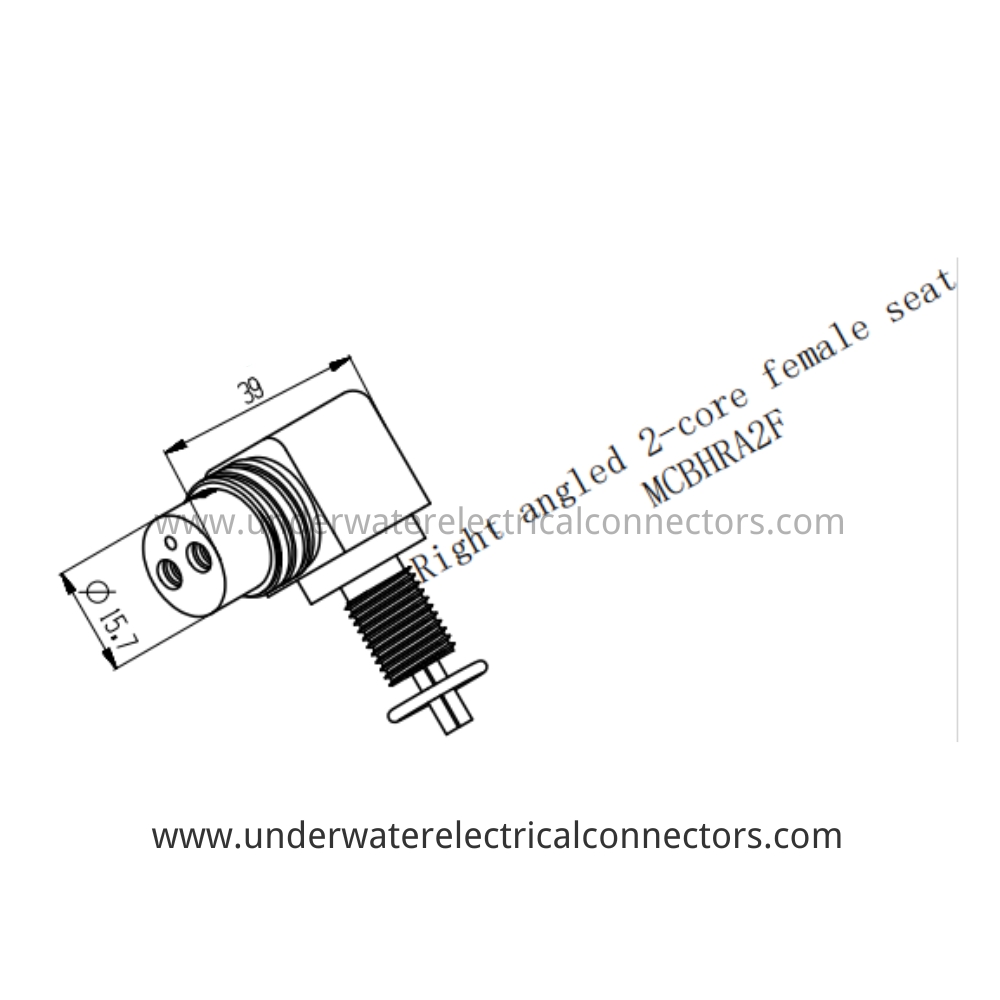

Built from 316L stainless steel with gold-plated socket contacts, it uses dual dynamic O-rings and a 16 mm threaded body locked by an anti-rotation ring. The 39 mm total height includes pre-soldered PTFE leads exiting perpendicular to the panel for strain-free internal routing.
Tailored for lateral penetrations in observation-class ROVs, compact sonar housings, and battery pod interfaces where axial clearance is restricted. ISO9001-2015 certified with full traceability and 1000-cycle mating durability under pressure.
Model: MCBHRA2F
Brand: HYSF
Type: Right-Angled 2-Core Female Bulkhead
Gender: Female
Pin Count: 2 Pins
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Dual O-Ring + Face Seal
Body Diameter: Ø15.7 mm
Total Height: 39 mm
Mounting: M16 Thread with Anti-Rotation Ring
Cable Exit: 90° Right-Angle
Leads: PTFE-Insulated (Red/Black)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: ROV Sidewall Ports, AUV Compact Enclosures, Sonar Pod Interfaces, Subsea Battery Modules
Certification: ISO9001-2015
Compatibility: MCIL2M / MCBH2M Straight Mates
Place of Origin: Guangdong, China
