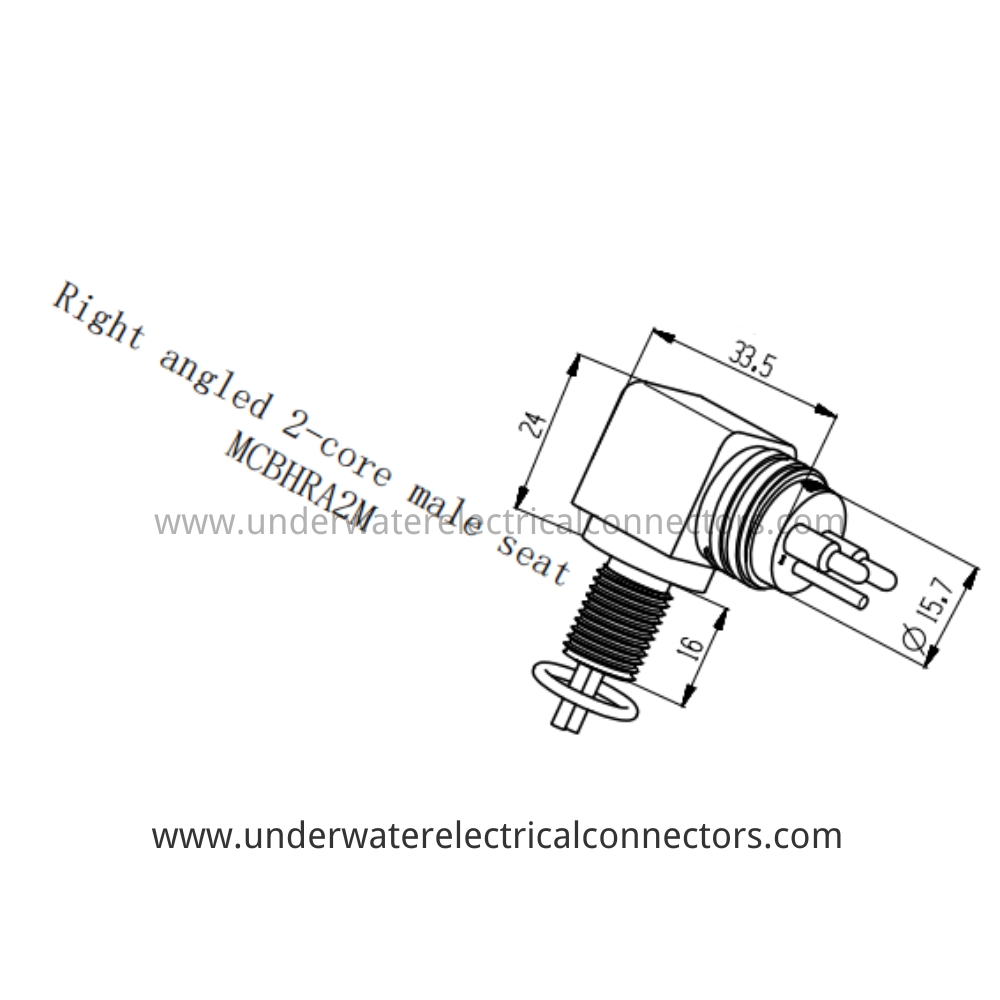

HYSF MCBHRA2M is a 90-degree right-angled 2-pin male bulkhead connector with Ø15.7 mm body. IP68 rated, 60 MPa tested, perfect for tight-space ROV housings, AUV side panels, and compact subsea junction boxes up to 6000m.
The HYSF MCBHRA2M introduces a space-saving right-angled 2-core male bulkhead connector optimized for confined subsea installations. Its 90-degree cable exit reduces bend radius by 70% compared to straight versions, enabling clean routing along curved pressure housings or within densely packed ROV frames.
Machined from 316L stainless steel with gold-plated contacts, it incorporates dual O-ring seals and a 16 mm mounting thread secured by included locking ring. The 33.5 mm total height maintains full 60 MPa pressure integrity while pre-terminated PTFE leads exit at precise right angles for zero cable stress.
Developed for side-wall penetrations in micro-submersibles, underwater camera pods, and sensor clusters where axial space is limited. ISO9001-2015 certified with 100% helium leak verification and 500+ mating cycle endurance.
Model: MCBHRA2M
Brand: HYSF
Type: Right-Angled 2-Core Male Bulkhead
Gender: Male
Pin Count: 2 Pins
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Dual O-Ring + Face Seal
Body Diameter: Ø15.7 mm
Total Height: 33.5 mm
Mounting: M16 Thread with Locking Ring
Cable Exit: 90° Right-Angle
Leads: PTFE-Insulated (Red/Black)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: ROV Side Panels, AUV Curved Housings, Compact Junction Boxes, Underwater Camera Mounts
Certification: ISO9001-2015
Compatibility: MCIL2F / MCBH2F Straight Mates
Place of Origin: Guangdong, China
