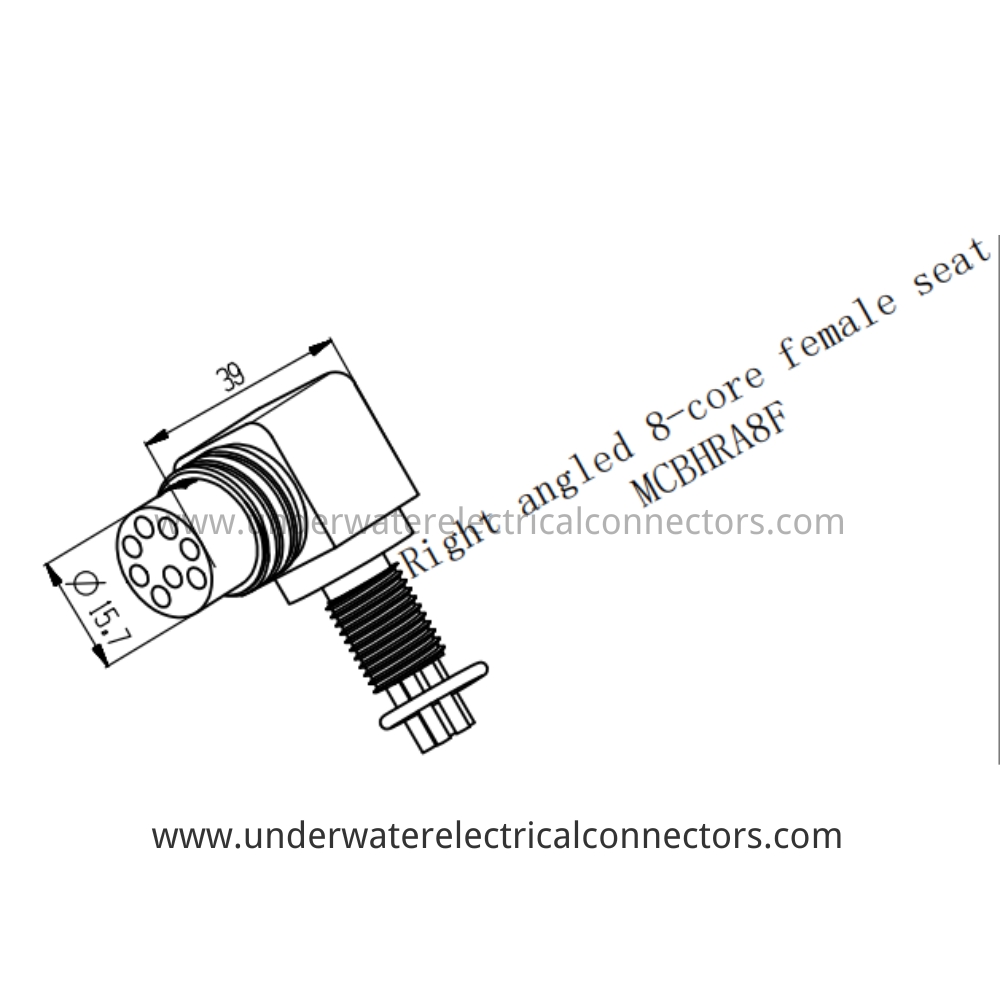

HYSF MCBHRA8F Right-angled 8-core female seat Underwater Connector

Product Description

The HYSF MCBHRA8F is the highest-density right-angled bulkhead connector in the Micro series, delivering eight channels in a 90-degree configuration that reduces axial protrusion by over 65%. Total height of only 39 mm makes it ideal for mounting on curved or thin pressure-vessel walls where straight connectors simply won't fit.

Precision-machined from 316L stainless steel with gold-plated brass sockets, dual dynamic O-rings, and anti-rotation locking ring. Pre-soldered 8-color PTFE leads exit perpendicular to the panel for zero-stress internal routing. Fully supports Gigabit Ethernet and multi-sensor payloads.

Specifically designed for sidewall penetrations in observation-class ROVs, compact sonar housings, Ethernet-enabled battery pods, and advanced multi-sensor clusters. ISO9001-2015 certified with 1000-cycle mating durability under full pressure.

Product Parameter

Model: MCBHRA8F

Brand: HYSF

Type: Right-Angled 8-Core Female Bulkhead

Gender: Female

Pin Count: 8

Contact Material: Gold-plated Brass

Current Rating: 10A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Sealing: Dual O-Ring + Face Seal

Body Diameter: Ø15.7 mm

Total Height: 39 mm

Mounting: M16 Thread with Anti-Rotation Ring

Cable Exit: 90° Right-Angle

Leads: PTFE-Insulated 8-color (Red/Black/White/Blue/Yellow/Green/Orange/Brown)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: ROV Sidewall Ports, AUV Compact Enclosures, Gigabit Ethernet Penetrators, Multi-Sensor Pods

Certification: ISO9001-2015

Compatibility: MCIL8M / MCBH8M Straight Mates

Place of Origin: Guangdong, China
