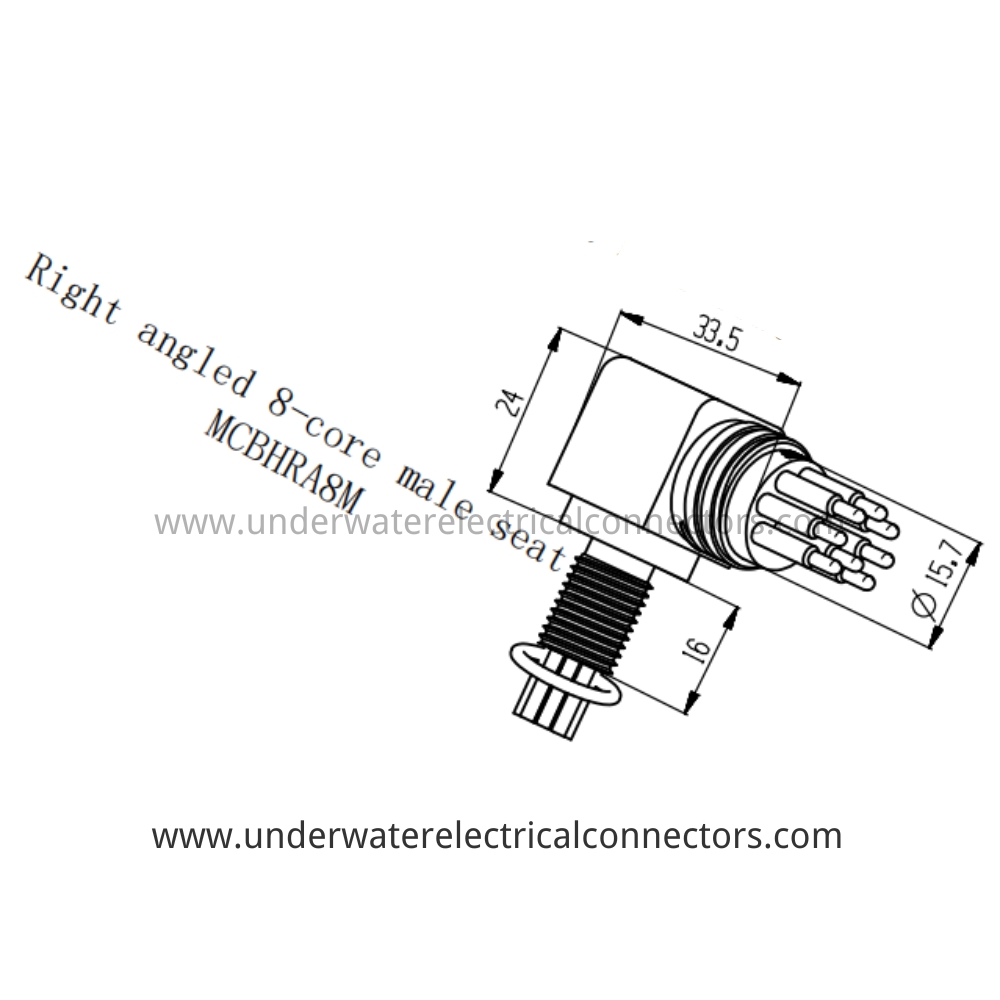

HYSF MCBHRA8M is a 90-degree right-angled 8-pin male bulkhead connector with Ø15.7 mm body. IP68 rated, 60 MPa tested, ideal for ultra-tight ROV housings, AUV curved sidewalls, Gigabit Ethernet penetrators, and high-density subsea junction boxes up to 6000m.
The HYSF MCBHRA8M delivers the highest-density right-angled male bulkhead solution in the Micro series, packing eight channels into a 90-degree configuration that slashes axial protrusion by over 70%. With only 33.5 mm total height, it enables mounting on the thinnest or most curved pressure housings where straight connectors are impossible.
Machined from 316L stainless steel with gold-plated contacts, dual O-ring seals, and anti-rotation locking ring. Pre-soldered 8-color PTFE leads exit at a perfect right angle for strain-free routing. Fully supports Gigabit Ethernet and complex multi-sensor payloads.
Perfect for sidewall penetrations in micro-submersibles, compact sonar domes, Ethernet switch modules, and advanced observation ROV frames where every millimeter counts. ISO9001-2015 certified with 100% helium leak testing and 500+ mating cycles under pressure.
Model: MCBHRA8M
Brand: HYSF
Type: Right-Angled 8-Core Male Bulkhead
Gender: Male
Pin Count: 8
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Dual O-Ring + Face Seal
Body Diameter: Ø15.7 mm
Total Height: 33.5 mm
Mounting: M16 Thread with Anti-Rotation Ring
Cable Exit: 90° Right-Angle
Leads: PTFE-Insulated 8-color (Red/Black/White/Blue/Yellow/Green/Orange/Brown)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: ROV Curved Sidewalls, AUV Compact Frames, Gigabit Ethernet Penetrators, Multi-Sensor Pods
Certification: ISO9001-2015
Compatibility: MCIL8F / MCBH8F Straight Females
Place of Origin: Guangdong, China
