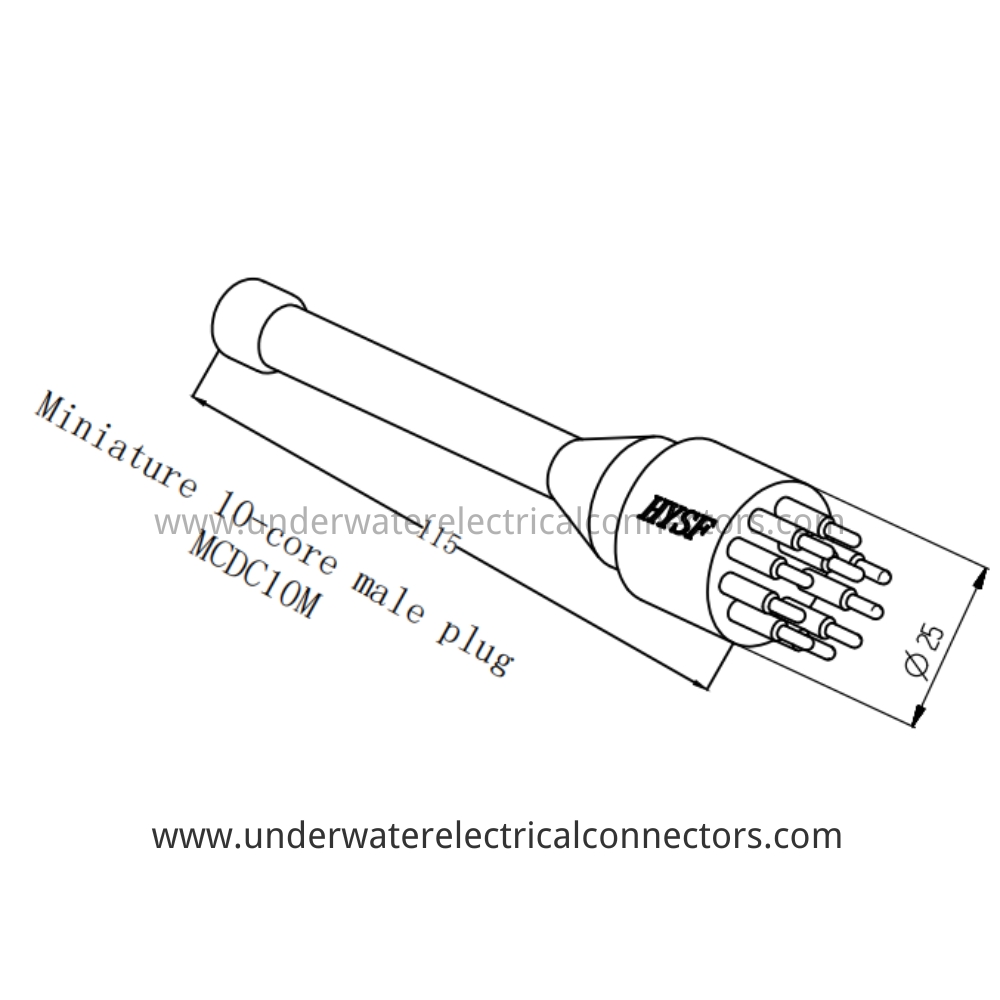

HYSF MCDC10M is a low-profile 10-pin male dummy plug with tapered PU cap. IP68 rated, 60 MPa tested, dedicated for protecting unused female 10-pin ports on ultra-high-density Gigabit-Ethernet + power ROVs, AUV multi-sensor panels, deepsea switch modules and complex instrumentation up to 6000m.
The HYSF MCDC10M is a robust 10-core male dummy plug designed to fully seal and protect open female 10-pin receptacles in the harshest subsea environments. Its streamlined black polyurethane cap slides over MCIL10F or MCBH10F ports, creating a complete pressure-tight barrier with no electrical connection.
Molded from abrasion-resistant, UV-stabilized PU with integrated stainless steel tether eye and triple internal O-rings. The large hex grip enables tool-free installation even with gloved hands, while the captive tether eye prevents loss during ROV operations.
Critical for safeguarding ultra-high-channel-count Gigabit-Ethernet + power ports, deepsea camera housings, multi-sensor arrays and battery modules from biofouling and debris. ISO9001-2015 certified with 100 MPa over-pressure validation and 2000-hour salt-spray resistance.
Model: MCDC10M
Brand: HYSF
Type: Miniature 10-Core Male Dummy Plug
Gender: Male (Non-Electrical)
Pin Count: 10 Dummy Pins
Contact Material: None (Sealing Only)
Housing Material: Polyurethane + 316L Stainless Tether Eye
Sealing: Triple O-Ring on Tapered Shaft
Body Diameter: Ø15.7 mm (Max)
Total Length: 118 mm
Grip Section: Large Hex
Tether: Integrated 2 mm Stainless Eyelet
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: ROV 10-pin Female Port Blanking, AUV Gigabit + Power Protection, Multi-Sensor Dummy Caps
Certification: ISO9001-2015
Compatibility: MCIL10F / MCBH10F Female Ports
Place of Origin: Guangdong, China
