HYSF MCDC8F is a compact 8-pin female dummy plug with tapered PU body. IP68 rated, 60 MPa tested, specifically designed for sealing unused male 8-pin ports on high-density micro-ROVs, AUV junction boxes, Gigabit Ethernet panels and deepsea instrumentation up to 6000m.

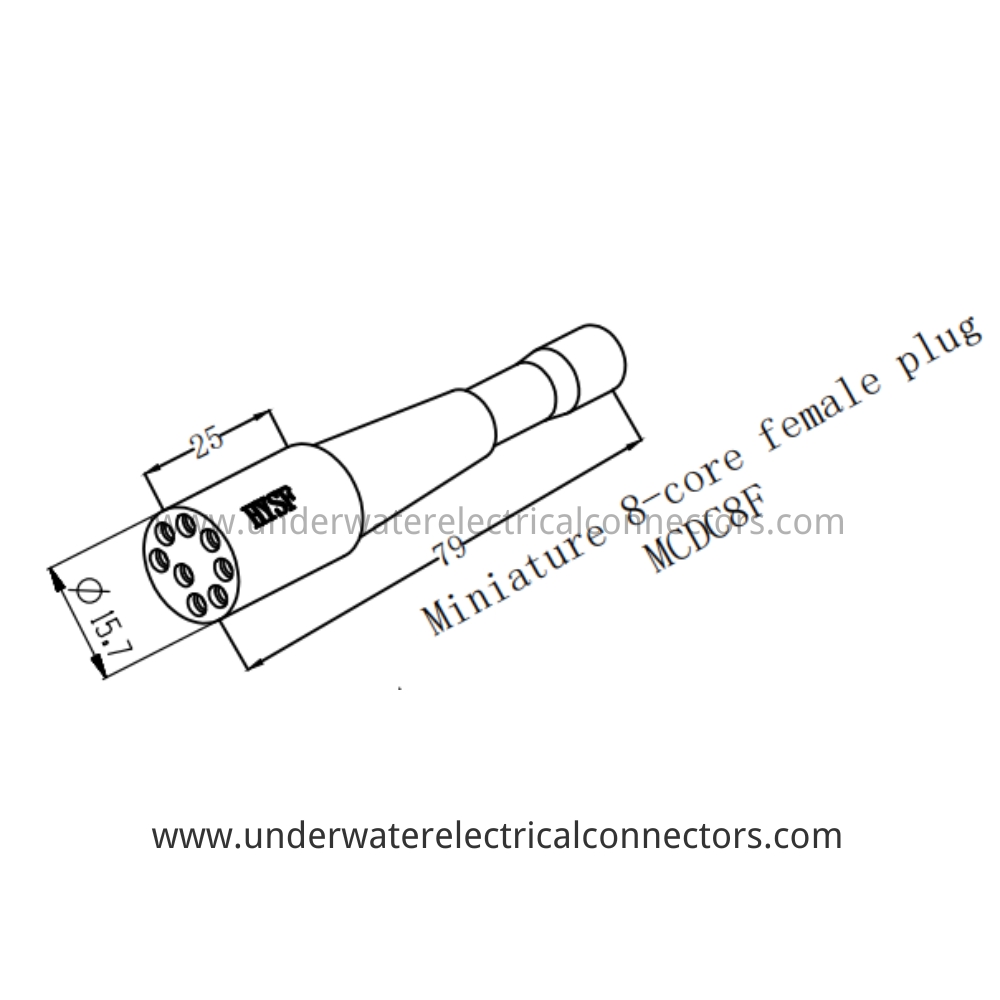

The HYSF MCDC8F is a precision 8-core female dummy plug that reliably protects exposed male 8-pin connectors from seawater, biofouling and mechanical damage. Its conical black polyurethane body (79 mm total length, Ø15.7 mm max) inserts directly into MCIL8M or MCBH8M ports, forming a full-pressure seal without any electrical connection.
Injection-molded from high-durometer UV-stabilized PU with embedded stainless steel retention clip and integrated 2 mm tether loop. Triple internal O-rings snap securely onto the host connector shoulder, while the 25 mm hex grip allows easy hand-tightening even with thick gloves.
Essential for maintaining system integrity on Gigabit-Ethernet-equipped ROVs, multi-sensor arrays, deep-rated battery packs and high-channel-count payloads when ports are temporarily disconnected. ISO9001-2015 certified with 100 MPa burst rating and 500-hour UV resistance.
Model: MCDC8F
Brand: HYSF
Type: Miniature 8-Core Female Dummy Plug
Gender: Female (Non-Electrical)
Pin Count: 8 Dummy Sockets
Contact Material: None (Sealing Only)
Housing Material: Polyurethane + 316L Stainless Clip
Sealing: Triple O-Ring on Tapered Nose
Body Diameter: Ø15.7 mm (Max)
Total Length: 79 mm
Grip Section: 25 mm Hex
Tether: Integrated 2 mm Stainless Loop
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: ROV 8-pin Male Port Protection, AUV Gigabit Ethernet Blanking, Multi-Sensor Dummy Caps
Certification: ISO9001-2015
Compatibility: MCIL8M / MCBH8M Male Ports
Place of Origin: Guangdong, China
