HYSF MCDLS-F is a compact threaded locking cap with Ø22.6 mm body. Hard-anodized aluminum, IP68 rated, 60 MPa tested, engineered for securing MCIL2F/MCBH2F female ports on ROVs, AUVs, and deepsea sensors up to 6000m.
The HYSF MCDLS-F delivers a rugged miniature locking cap purpose-built to isolate and protect exposed female micro connectors in demanding subsea environments. Its Ø22.6 mm hard-anodized aluminum shell screws directly onto MCIL2F or MCBH2F females, creating a sealed barrier that prevents debris ingress and accidental mating.
Featuring a deep-knurled grip zone and internal M16x1.5 thread, it achieves full engagement in just 3 turns. A molded-in polyurethane bumper cushions the connector face, while the 41.5 mm overall length maintains low profile on crowded bulkheads. Optional split-ring tether available for permanent attachment.
Used extensively on inspection-class ROV sensor heads, deepsea camera mounts, and subsea control pods to lock out ports during storage or transport. ISO9001-2015 certified with 100 MPa burst validation and 1500-cycle thread durability.
Model: MCDLS-F
Brand: HYSF
Type: Threaded Locking Cap for Female Micro
Gender: Cap (Non-Electrical)
Thread: M16x1.5 External
Body Material: 6061-T6 Aluminum, Hard Anodized
Bumper: Black Polyurethane Face Cushion
Sealing: Face Seal + Thread Overlap

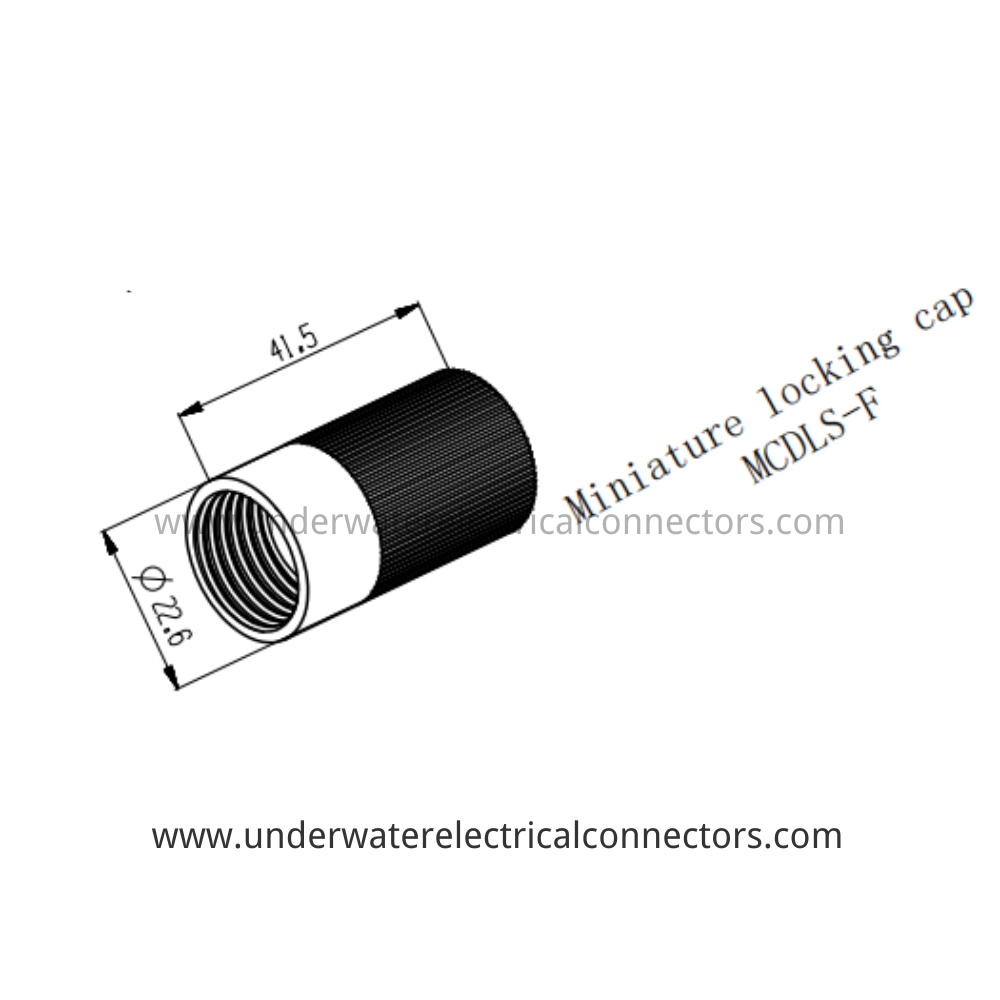

Body Diameter: Ø22.6 mm
Total Length: 41.5 mm
Knurl: Deep Diamond, 1.5 mm Pitch
Torque Rating: 4.5 Nm Hand-Tight
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -30°C to 100°C
Application: ROV Female Port Lockout, AUV Sensor Protection, Camera Mount Security, Subsea Pod Transit Caps
Certification: ISO9001-2015
Compatibility: MCIL2F / MCBH2F Female Connectors
Place of Origin: Guangdong, China
