HYSF MCDLS-M Locking cap Underwater Connector

Product Description

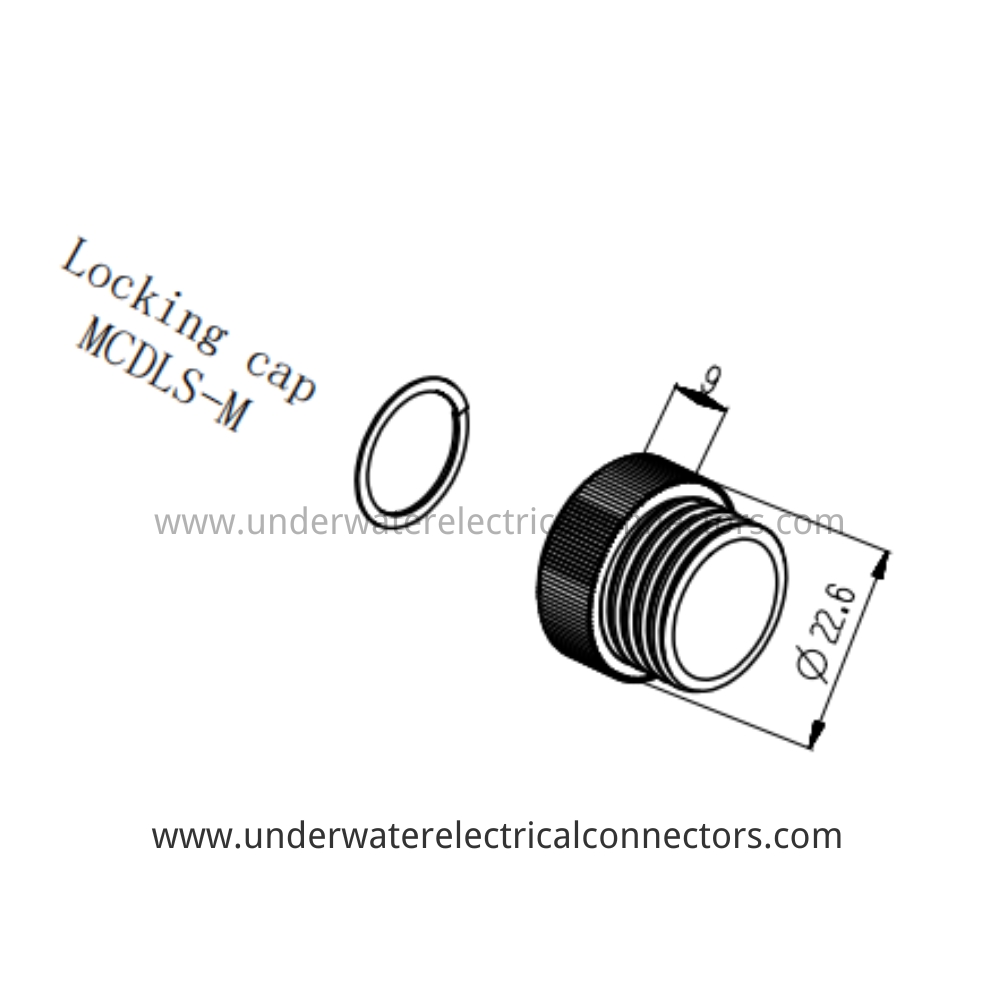

The HYSF MCDLS-M is a precision-engineered locking cap specifically crafted to provide positive mechanical closure for exposed male micro connectors in underwater systems. Its knurled Ø22.6 mm hard-anodized aluminum body threads directly onto MCIL2M or MCBH2M males, delivering a metal-to-metal seal that prevents accidental unmating.

Incorporating a captive stainless steel split-ring (Ø9 mm ID), the cap remains tethered to the host connector during removal, eliminating FOD risk. The internal face seal engages the connector shoulder, while the 1.5 mm pitch thread ensures 3+ turns of engagement for vibration-resistant hold in high-flow environments.

Deployed on work-class ROV manipulators, deepsea lander frames, and subsea tool skids to lock critical interfaces during transit or standby. ISO9001-2015 certified with 100 MPa proof pressure and 1000-cycle torque endurance.

Product Parameter

Model: MCDLS-M

Brand: HYSF

Type: Threaded Locking Cap for Male Micro

Gender: Cap (Non-Electrical)

Thread: M16x1.5 Internal

Body Material: 6061-T6 Aluminum, Hard Anodized

Tether: Ø9 mm 316 Stainless Split-Ring

Sealing: Face Seal + Thread Engagement

Body Diameter: Ø22.6 mm

Total Length: 18 mm (Engaged)

Knurl: Diamond Pattern, 1.2 mm Pitch

Torque Rating: 5 Nm Hand-Tight

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -30°C to 100°C

Application: ROV Male Port Lockout, AUV Interface Security, Subsea Tool Transit Protection

Certification: ISO9001-2015

Compatibility: MCIL2M / MCBH2M Male Connectors

Place of Origin: Guangdong, China
