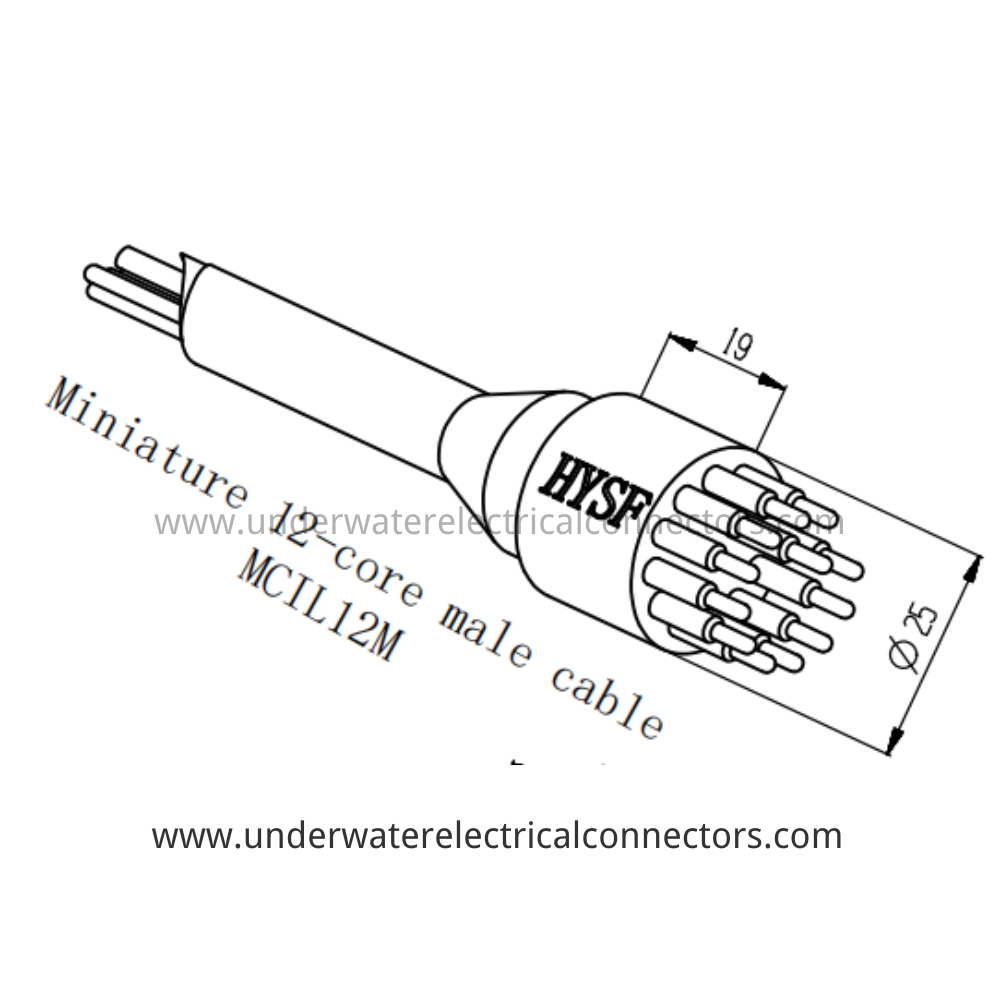

HYSF MCIL12M Miniature 12-core male cable Underwater Connector

Product Description

The HYSF MCIL12M achieves the absolute maximum of 12 channels in the ultra-compact Ø15.7 mm Micro envelope — the highest pin density ever in any male wet-mate inline connector under 20 mm. Its compact 19 mm hex grip and threaded locking sleeve guarantee secure mating even in extremely confined spaces.

Precision-machined 316L stainless steel insert with gold-plated brass pins, fully encapsulated in black polyurethane with integrated strain relief. Pre-terminated with 12 color-coded PTFE leads. Fully supports 1000BASE-T Ethernet (two shielded twisted pairs) plus 8 additional pins for power or sensors.

Perfect for next-generation observation-class ROVs, deepsea instrumentation, and Ethernet + multi-power payloads where minimum diameter and maximum channel count are non-negotiable. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.

Product Parameter

Model: MCIL12M

Brand: HYSF

Type: Miniature 12-Core Male Inline Cable

Gender: Male

Pin Count: 12

Contact Material: Gold-plated Brass

Current Rating: 10A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel + PU Overmold

Sealing: Double O-Ring + Face Seal

Body Diameter: Ø15.7 mm

Grip Length: 19 mm

Cable: 12 × 24 AWG PTFE Leads (12-color coded)

Overmold: Black Polyurethane (PU)

Locking: Threaded Sleeve

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Gigabit Ethernet + Multi-Power Extensions, Ultra-High-Density ROV Umbilicals, AUV Sensor Chains, Deepsea Splicing

Certification: ISO9001-2015

Compatibility: MCBH12F / MCIL12F Females

Place of Origin: Guangdong, China
