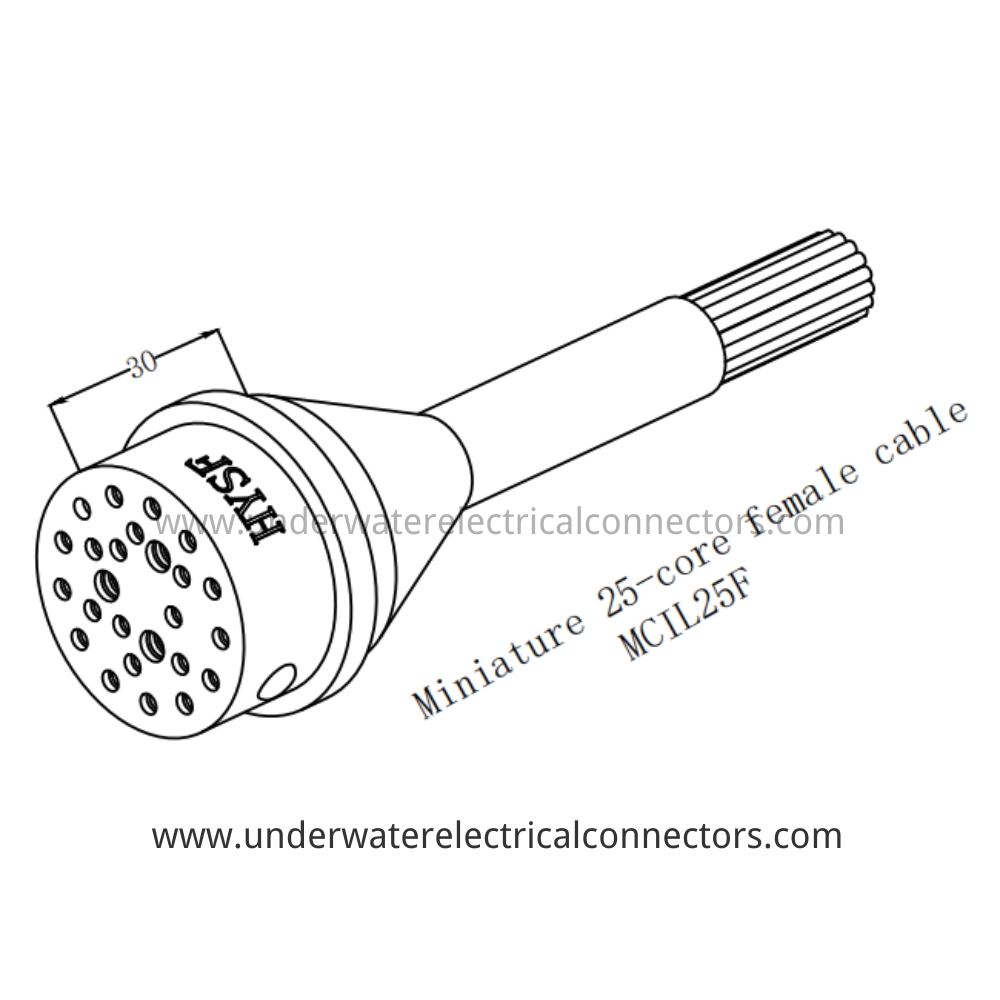

HYSF MCIL25F Miniature 25-core female cable Underwater Connector

Product Description

The HYSF MCIL25F achieves the absolute limit of the Micro series — an unprecedented 25 channels inside the ultra-compact Ø15.7 mm envelope, making it the highest pin-count wet-mate inline connector ever produced under 20 mm. Its 30 mm hex grip and tapered nose ensure fast, reliable mating even in extremely confined spaces.

Precision-machined 316L stainless steel insert with gold-plated brass sockets, fully encapsulated in black polyurethane with integrated strain relief. Pre-terminated with 25 color-coded PTFE leads. Supports 1000BASE-T Ethernet (two shielded twisted pairs) while leaving 21 pins for high-power or additional sensors.

The ultimate choice for next-generation observation-class ROVs, deepsea instrumentation, and Ethernet + extreme multi-power payloads where absolute minimum diameter and maximum channel count are mandatory. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.

Product Parameter

Model: MCIL25F

Brand: HYSF

Type: Miniature 25-Core Female Inline Cable

Gender: Female

Pin Count: 25

Contact Material: Gold-plated Brass

Current Rating: 10A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel + PU Overmold

Sealing: Double O-Ring + Face Seal

Body Diameter: Ø15.7 mm

Grip Length: 30 mm

Cable: 25 × 24 AWG PTFE Leads (25-color coded)

Overmold: Black Polyurethane (PU)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Maximum-Density Gigabit Ethernet + Multi-Power Extensions, Extreme ROV Umbilicals, AUV Highest-Channel Chains, Deepsea Splicing

Certification: ISO9001-2015

Compatibility: MCBH25M / MCIL25M Males

Place of Origin: Guangdong, China
