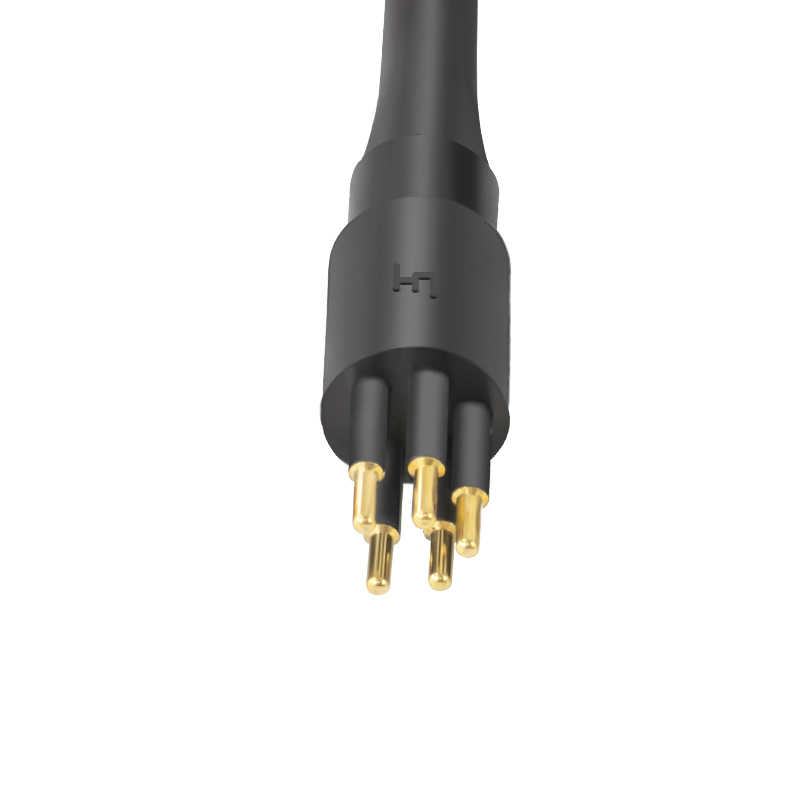

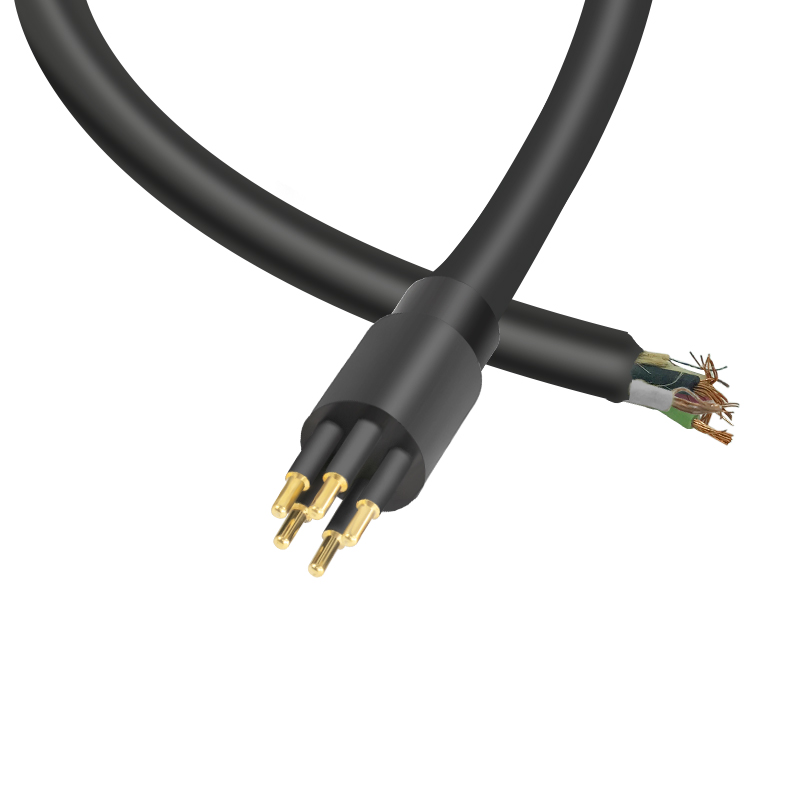

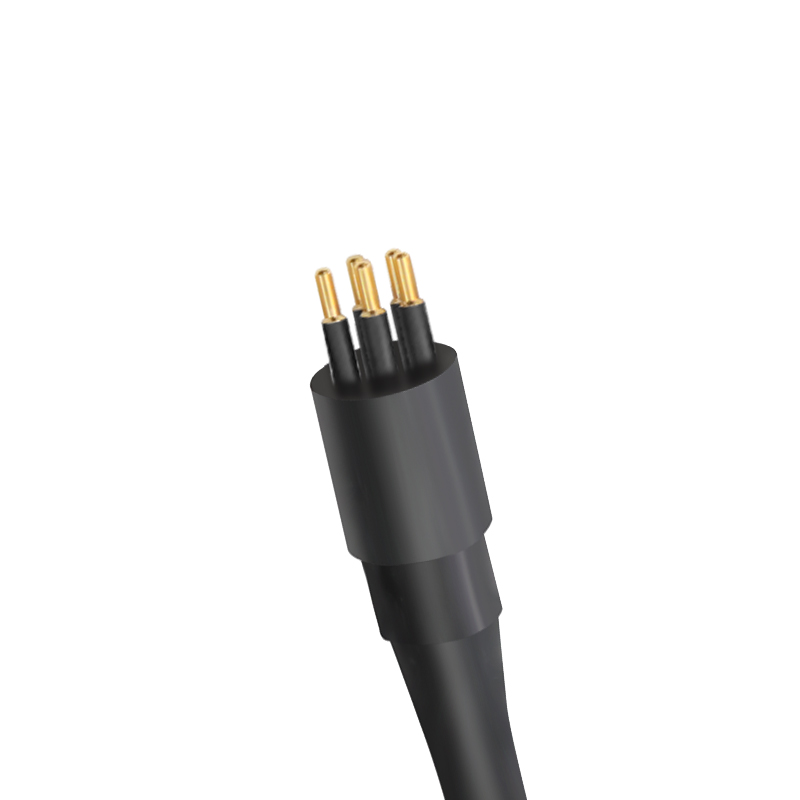

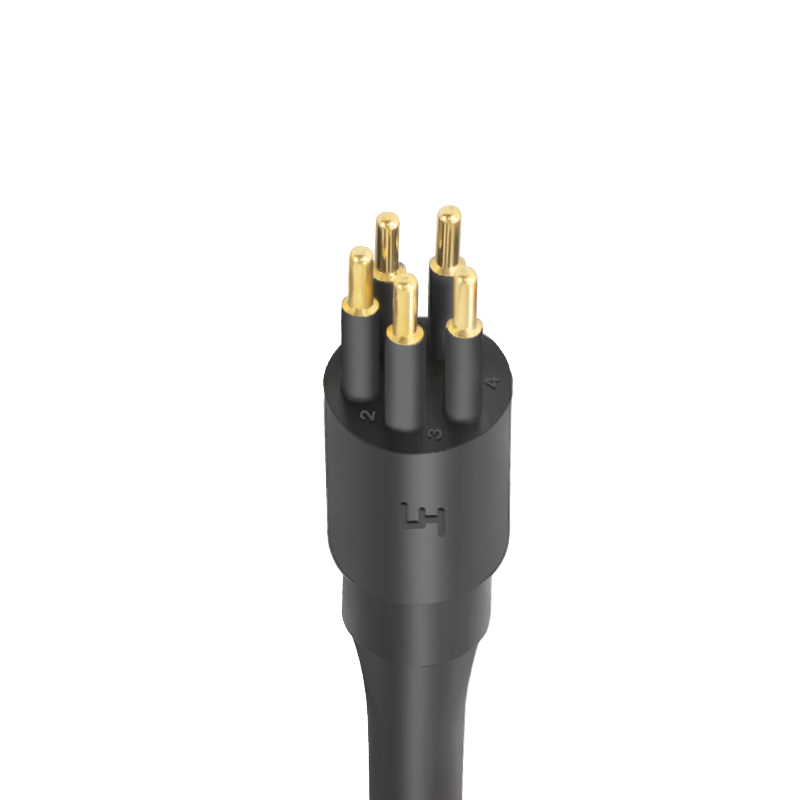

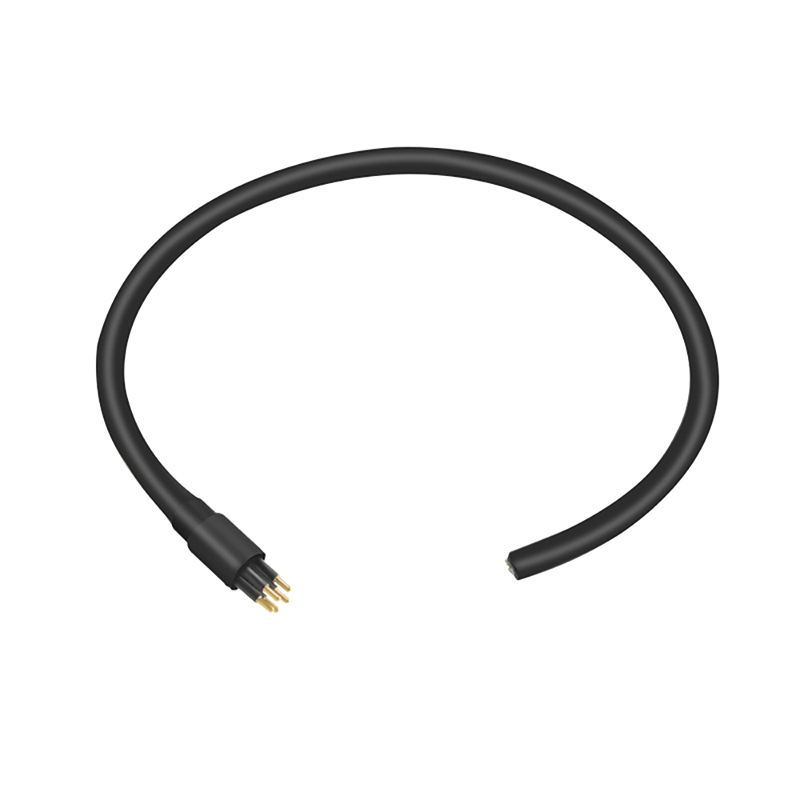

MCIL5M is a 5-pin inline waterproof subsea connector built for underwater electric cable systems. IP68-rated and tested to 10,000 PSI, ideal for power and signal transmission in ROVs, subsea sensors, and marine equipment.
The MCIL5M 5Pin Inline Subsea Underwater Electric Connector delivers robust sealing and reliable performance in deep-sea environments. Designed for underwater electric cable systems in ROVs, sensors, and subsea instruments, this connector features an IP68 waterproof rating and is pressure-tested up to 10,000 PSI (approx. 689 Bar). It is engineered with gold-plated brass contacts for superior conductivity and corrosion resistance. Compatible with both AC and DC interfaces, the MCIL5M supports a temperature range of -4 to +60°C and is constructed using marine-grade stainless steel or titanium with AISI 316 location pins. Customization for pin layouts, cables, and housings is available to meet specific application needs.
Brand: HYSF
Model Number: MCIL5M
Type: Inline Waterproof Subsea Electric Connector
Pins: 5 Pins
Shape: Round
Waterproof Rating: IP68
Mated Pressure Rating: Up to 10,000 PSI / 689 Bar
Rated Current: 300A
Interface Type: AC/DC
Temperature Range: -4 to +60°C
Housing Material: Stainless Steel / Titanium
Contact Material: Gold Plated Brass
Location Pin: Stainless Steel AISI 316
Gender: Male and Female
Certification: ISO9001-2015
Application Range: Subsea Electric Cable Systems, ROVs, Underwater Sensors, Marine Robotics
Custom Processing: Supported (Pin mapping, Cable integration, Housing configuration)
Place of Origin: Guangdong, China
