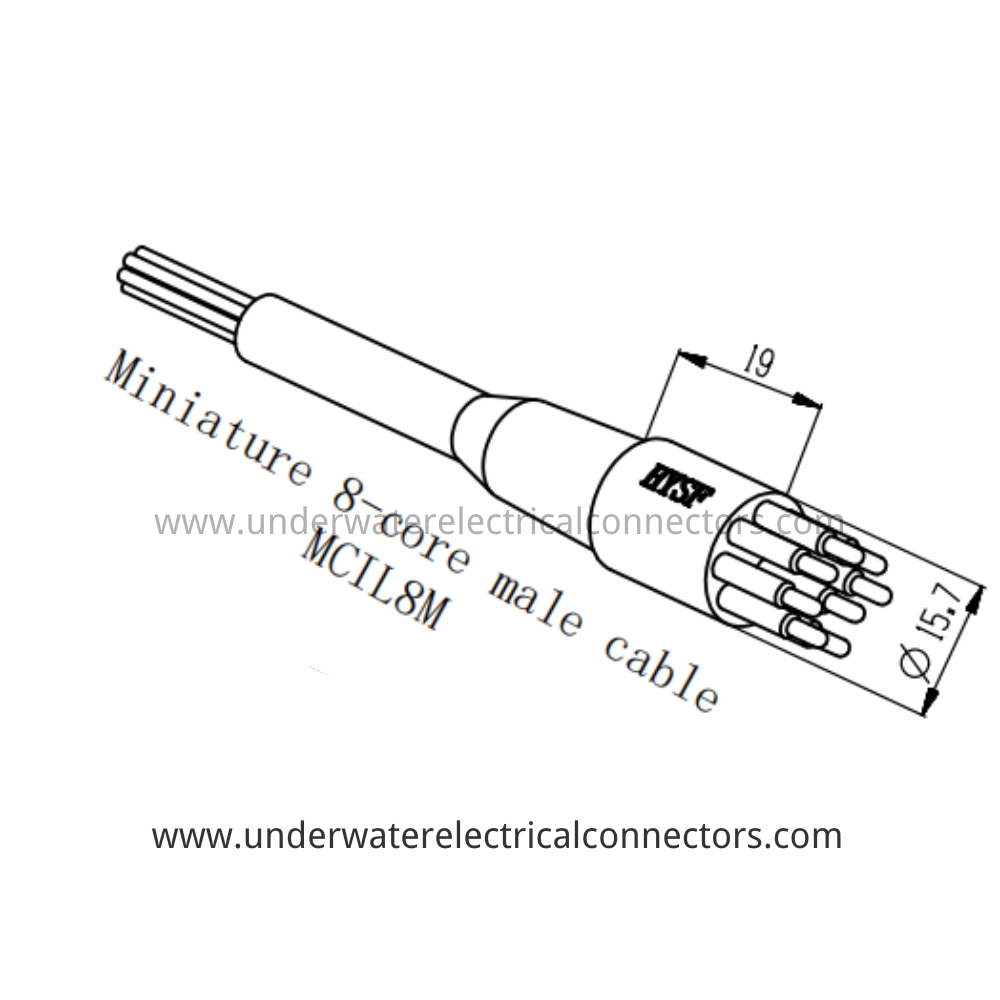

HYSF MCIL8M Miniature 8-core male cable Underwater Connector

Product Description

The HYSF MCIL8M is the highest-density male inline connector in the Micro series, delivering eight independent channels in an ultra-compact Ø15.7 mm envelope. Its 19 mm hex grip and threaded locking sleeve ensure secure mating even in confined spaces, making it the preferred choice for Gigabit Ethernet extensions, multi-sensor networks, and complex ROV control lines.

Precision-machined 316L stainless steel insert with gold-plated brass pins, fully encapsulated in black polyurethane with integrated strain relief. Pre-terminated with 8 × 24 AWG PTFE leads (8-color coded) for direct splicing. Fully supports 1000BASE-T Ethernet using two shielded twisted pairs.

Optimized for high-channel-count applications in observation-class ROVs, deepsea instrumentation, and Ethernet-ready payloads where minimal diameter and maximum flexibility are essential. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.

Product Parameter

Model: MCIL8M

Brand: HYSF

Type: Miniature 8-Core Male Inline Cable

Gender: Male

Pin Count: 8

Contact Material: Gold-plated Brass

Current Rating: 10A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel + PU Overmold

Sealing: Double O-Ring + Face Seal

Body Diameter: Ø15.7 mm

Grip Length: 19 mm

Cable: 8 × 24 AWG PTFE Leads (Red/Black/White/Blue/Yellow/Green/Orange/Brown)

Overmold: Black Polyurethane (PU)

Locking: Threaded Sleeve

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Gigabit Ethernet Extensions, ROV Umbilicals, AUV Sensor Chains, Multi-Channel Splicing

Certification: ISO9001-2015

Compatibility: MCBH8F / MCIL8F Females

Place of Origin: Guangdong, China
