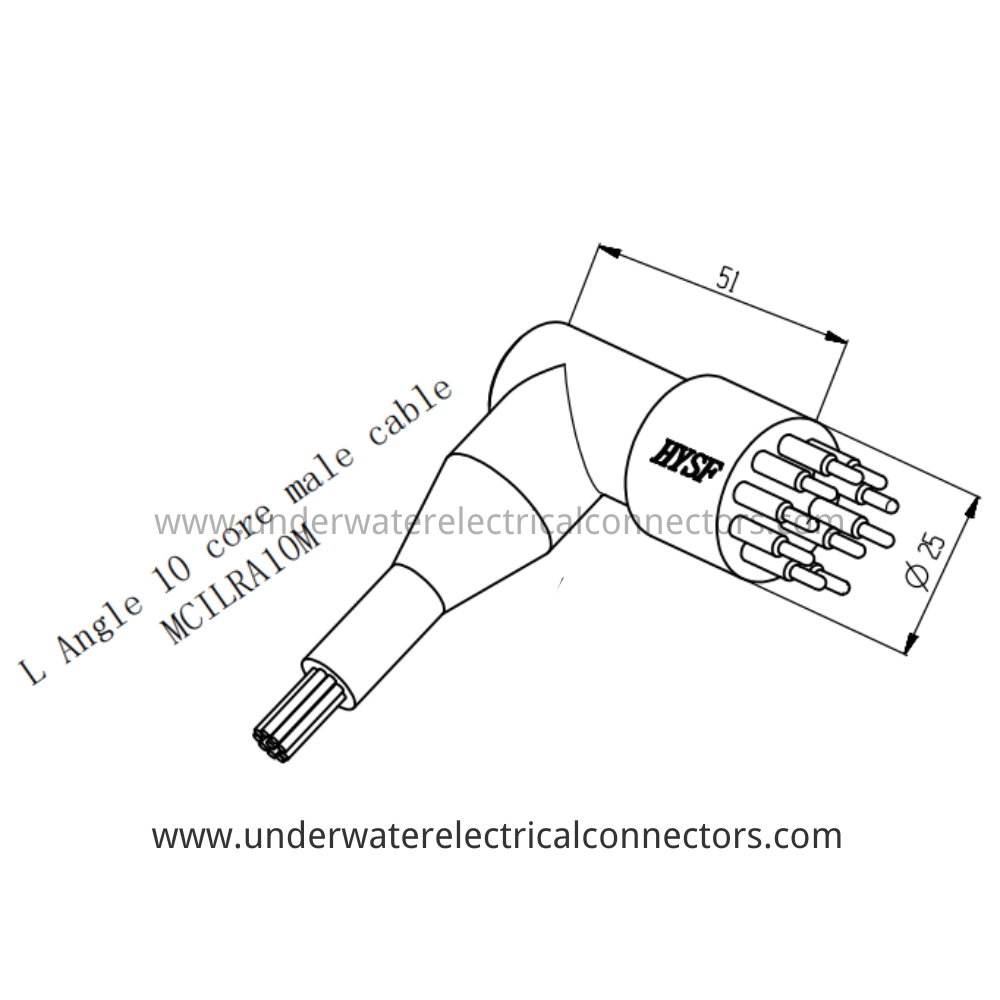

HYSF MCLRA10M is an ultra-high-density right-angle (L-angle) 10-pin male inline cable connector with Ø15.7 mm PU overmold. IP68 rated, 60 MPa tested, designed for Gigabit Ethernet + multi-power + multi-sensor/control in the tightest spaces on micro-ROVs, AUVs, 4K/8K cameras and deepsea instruments up to 6000 m.
The HYSF MCLRA10M delivers an unmatched 10 channels with a true 90-degree cable exit while keeping the same ultra-compact Ø15.7 mm Micro envelope. Only 60 mm mated length with integrated low-profile PU bend relief.
Precision 316L stainless steel insert with gold-plated brass pins, fully overmolded in black polyurethane. Pre-terminated with 10 × 26 AWG PTFE leads. Supports full 1000BASE-T Gigabit Ethernet (4 pins) + six additional power/sensor/control lines.
The ultimate choice for next-generation compact ROVs, high-resolution imaging systems, and multi-function deepsea payloads requiring maximum connectivity in the smallest possible footprint. ISO9001-2015 certified with 1000+ mating cycles and full ocean depth rating.
Model: MCLRA10M
Brand: HYSF
Type: Micro L-Angle 10-Core Male Inline Cable
Gender: Male
Pin Count: 10
Contact Material: Gold-plated Brass
Current Rating: 6A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: Ø15.7 mm
Total Length (mated): 60 mm
Bend Relief: Integrated PU Right-Angle Boot
Cable: 10 × 26 AWG PTFE Leads (Gigabit Ethernet + Multi-Power/Sensor capable)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet + Multi-Power + Sensors, 4K/8K Camera Systems, High-Density ROV Payloads, Deepsea Multi-Function Links
Certification: ISO9001-2015
Compatibility: MCBH10F / MCIL10F Females
Place of Origin: Guangdong, China
