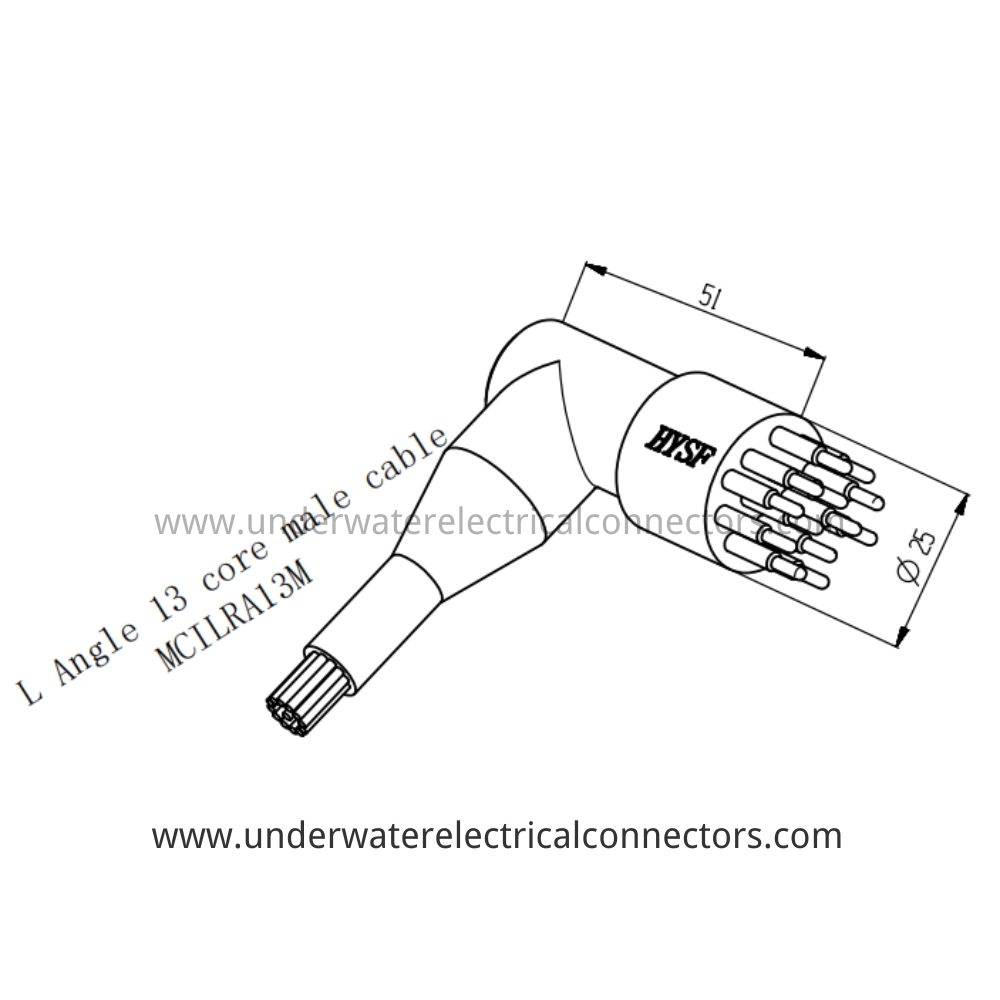

HYSF MCILRA13M Micro Circular L Angle 13-core male cable Underwater ConnectorMCLRA13M

Product Description

The HYSF MCLRA13M pushes the Micro series to its absolute limit with 13 channels and true 90-degree exit while keeping the identical ultra-compact Ø15.7 mm envelope. Only 51 mm mated length with integrated low-profile PU bend relief.

Precision 316L stainless steel insert with gold-plated brass pins, fully overmolded in black polyurethane. Pre-terminated with 13 × 26 AWG PTFE leads. Typically configured as 1000BASE-T Gigabit Ethernet (4 pins) + high-current power pair + multiple RS485/RS232/sensor/actuator lines.

The definitive choice for next-generation ultra-compact ROVs, 8K imaging systems, multi-axis manipulators and complex deepsea sensor suites that require maximum functionality in minimal volume. ISO9001-2015 certified with 1000+ mating cycles and full ocean depth rating.

Product Parameter

Model: MCLRA13M

Brand: HYSF

Type: Micro L-Angle 13-Core Male Inline Cable

Gender: Male

Pin Count: 13

Contact Material: Gold-plated Brass

Current Rating: 5A per Pin (up to 10A on power pins)

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel + PU Overmold

Sealing: Double O-Ring + Face Seal

Body Diameter: Ø15.7 mm

Total Length (mated): 51 mm

Bend Relief: Integrated PU Right-Angle Boot

Cable: 13 × 26 AWG PTFE Leads (Gigabit + High-Power + Multi-Signal capable)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Gigabit Ethernet + High Power + Multi-Sensor/Actuator, 8K Camera Systems, Advanced Manipulators, Ultra-Compact ROV Payloads

Certification: ISO9001-2015

Compatibility: MCBH13F / MCIL13F Females

Place of Origin: Guangdong, China
