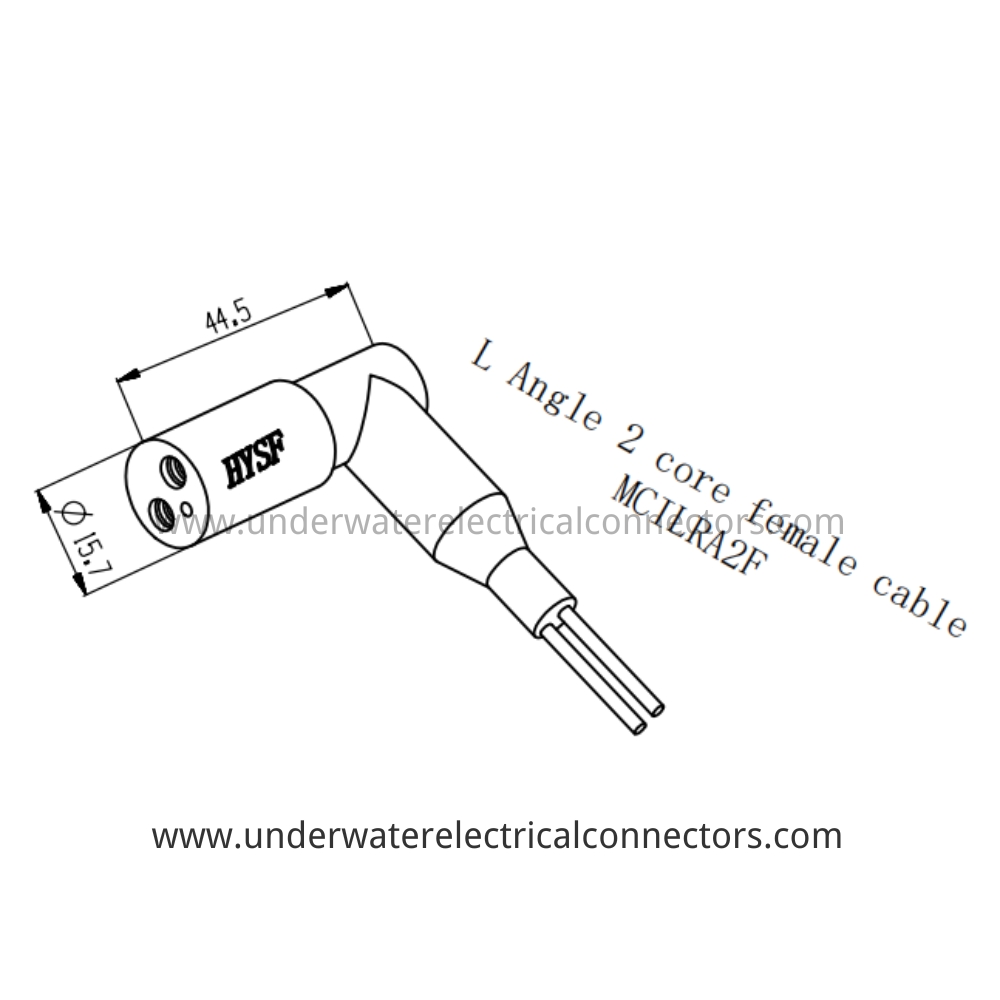

HYSF MCLRA2F is an ultra-compact right-angle (L-angle) 2-pin female inline cable connector with Ø15.7 mm PU overmold. IP68 rated, 60 MPa tested, ideal for space-constrained power or signal routing on micro-ROVs, AUV thruster pods, compact sensors and tight-bend deepsea umbilicals up to 6000m.
The HYSF MCLRA2F offers a true 90-degree right-angle exit in the Micro series envelope, enabling clean cable routing in extremely confined spaces where straight connectors are impossible. Only 44.5 mm total mated length with low-profile PU bend relief.
Precision-machined 316L stainless steel insert with gold-plated brass sockets, fully encapsulated in black polyurethane. Pre-terminated with 2 × 18 AWG PTFE leads. Perfect for high-current thruster power, LED lighting, or simple sensor connections in tight installations.
Widely used on observation-class ROVs, drop cameras, and compact AUVs where every millimeter counts. ISO9001-2015 certified with 1000+ mating cycles and full ocean depth rating.
Model: MCLRA2F
Brand: HYSF
Type: Micro L-Angle 2-Core Female Inline Cable
Gender: Female
Pin Count: 2
Contact Material: Gold-plated Brass
Current Rating: 25A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: Ø15.7 mm
Total Length (mated): 44.5 mm
Bend Relief: Integrated PU Right-Angle Boot
Cable: 2 × 18 AWG PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: ROV Thruster Power, Compact Sensor Routing, Tight-Space Umbilicals, Deepsea Right-Angle Links
Certification: ISO9001-2015
Compatibility: MCBH2M / MCIL2M Males
Place of Origin: Guangdong, China
