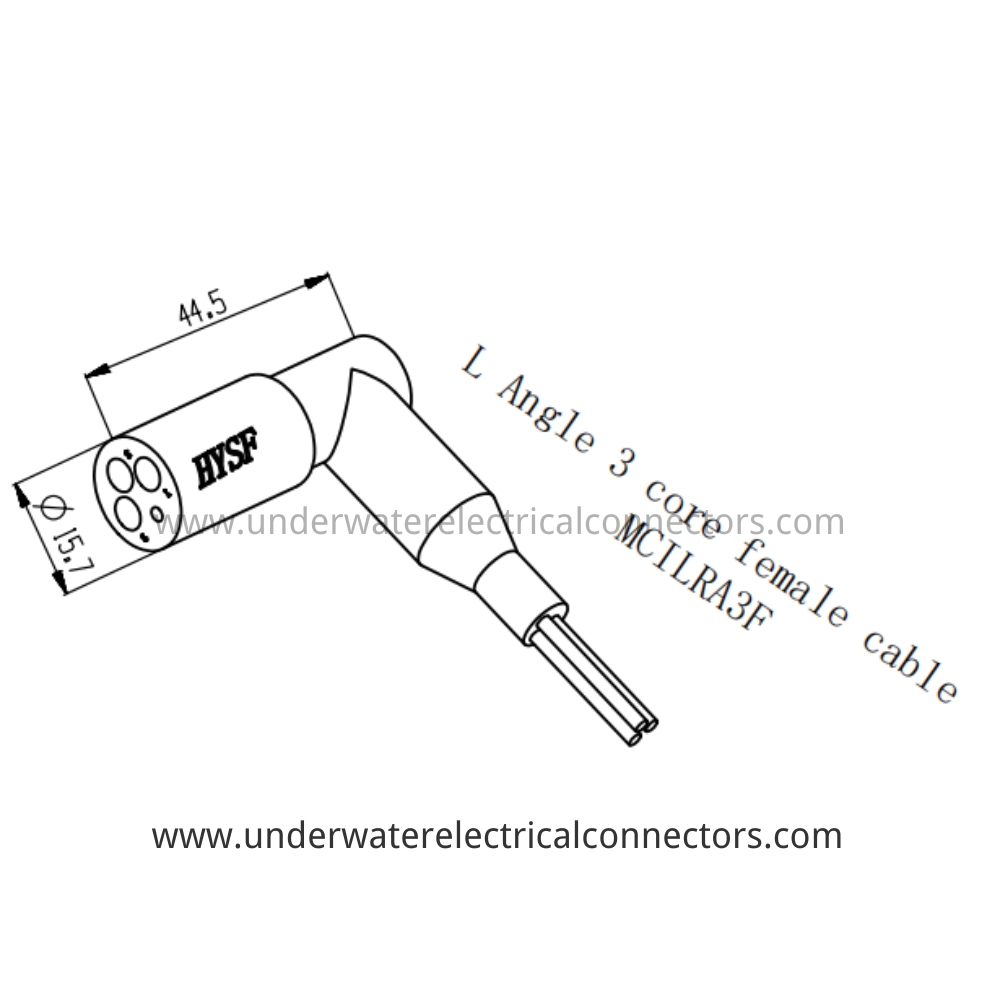

HYSF MCLRA3F is a compact right-angle (L-angle) 3-pin female inline cable connector with Ø15.7 mm PU overmold. IP68 rated, 60 MPa tested, ideal for power + signal routing in extremely tight spaces on micro-ROVs, AUV sensor pods, compact pan-tilt units and deepsea instruments up to 6000m.
The HYSF MCLRA3F provides a true 90-degree exit in the Micro series, enabling clean cable management where straight connectors are impossible. Only 44.5 mm mated length with integrated low-profile PU bend relief.
Precision 316L stainless steel insert with gold-plated brass sockets, fully overmolded in black polyurethane. Pre-terminated with 3 × 20 AWG PTFE leads. Commonly used for combined power + RS485/RS232 control, sonar feeds, or small actuator control in confined installations.
Extensively deployed on observation-class ROVs, compact AUVs, and tooling skids where every millimeter of space matters. ISO9001-2015 certified with 1000+ mating cycles and full ocean depth rating.
Model: MCLRA3F
Brand: HYSF
Type: Micro L-Angle 3-Core Female Inline Cable
Gender: Female
Pin Count: 3
Contact Material: Gold-plated Brass
Current Rating: 16A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: Ø15.7 mm
Total Length (mated): 44.5 mm
Bend Relief: Integrated PU Right-Angle Boot
Cable: 3 × 20 AWG PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: ROV Pan-Tilt Control, Combined Power + RS485/RS232, Sonar Feeds, Tight-Space Sensor Links
Certification: ISO9001-2015
Compatibility: MCBH3M / MCIL3M Males
Place of Origin: Guangdong, China
