HYSF MCLRA3M is a compact right-angle (L-angle) 3-pin male inline cable connector with Ø15.7 mm PU overmold. IP68 rated, 60 MPa tested, perfect for power + signal routing in extremely confined spaces on micro-ROVs, AUV sensor pods, pan-tilt units and deepsea instruments up to 6000m.

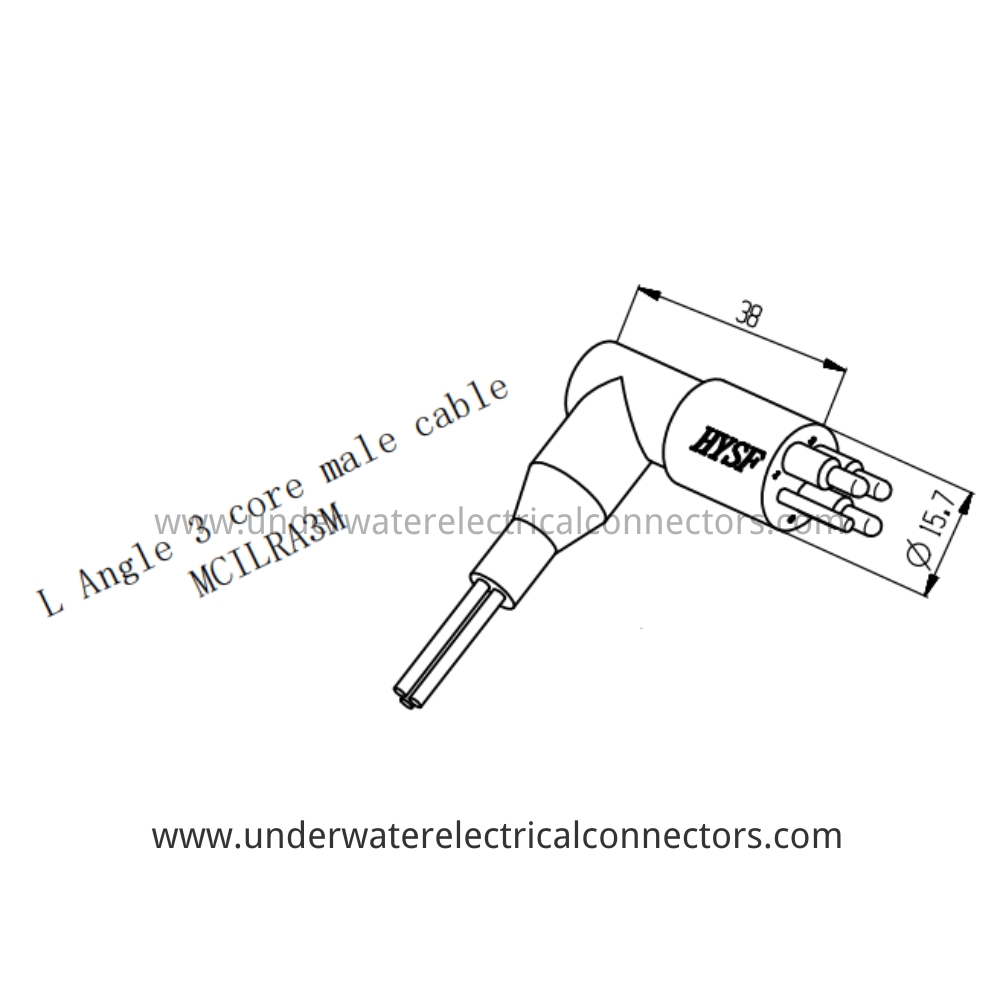

The HYSF MCLRA3M offers a true 90-degree right-angle exit in the ultra-small Micro envelope, allowing clean cable runs where straight connectors are impossible. Only 38 mm total mated length with integrated low-profile PU bend relief.
Precision 316L stainless steel insert with gold-plated brass pins, fully overmolded in black polyurethane. Pre-terminated with 3 × 20 AWG PTFE leads. Widely used for combined power + RS485/RS232 control, small sonar feeds, or actuator power in the tightest installations.
Essential on observation-class ROVs, compact AUVs, tooling skids and deep-rated instruments where space behind the connector is severely restricted. ISO9001-2015 certified with 1000+ mating cycles and full ocean depth rating.
Model: MCLRA3M
Brand: HYSF
Type: Micro L-Angle 3-Core Male Inline Cable
Gender: Male
Pin Count: 3
Contact Material: Gold-plated Brass
Current Rating: 16A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: Ø15.7 mm
Total Length (mated): 38 mm
Bend Relief: Integrated PU Right-Angle Boot
Cable: 3 × 20 AWG PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: ROV Pan-Tilt Control, Power + RS485/RS232, Sonar Feeds, Tight-Space Sensor Links
Certification: ISO9001-2015
Compatibility: MCBH3F / MCIL3F Females
Place of Origin: Guangdong, China
