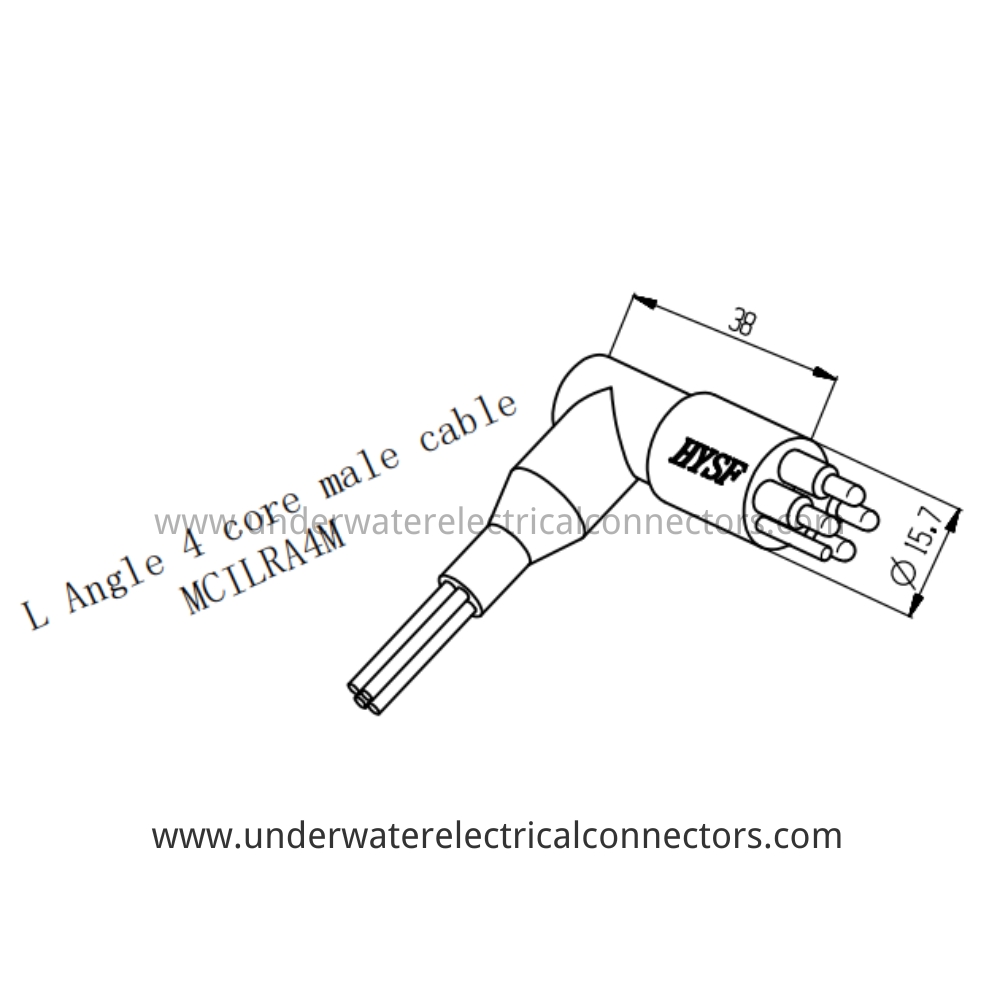

HYSF MCLRA4M is a compact right-angle (L-angle) 4-pin male inline cable connector with Ø15.7 mm PU overmold. IP68 rated, 60 MPa tested, ideal for Gigabit Ethernet, power + data, or multi-sensor feeds in extremely confined spaces on micro-ROVs, AUVs, PTZ cameras and deepsea instruments up to 6000m.
The HYSF MCLRA4M provides a true 90-degree right-angle cable exit in the ultra-compact Micro envelope, enabling clean routing where straight connectors are impossible. Only 38 mm mated length with integrated low-profile PU bend relief.
Precision 316L stainless steel insert with gold-plated brass pins, fully overmolded in black polyurethane. Pre-terminated with 4 × 22 AWG PTFE leads. Fully supports 1000BASE-T Gigabit Ethernet using two shielded twisted pairs, or 2× power + RS485/RS232 in the tightest installations.
Critical component for observation-class ROVs, compact AUV thruster pods, pan-tilt-zoom cameras and deep-rated instruments demanding maximum functionality in minimum space. ISO9001-2015 certified with 1000+ mating cycles and full ocean depth rating.
Model: MCLRA4M
Brand: HYSF
Type: Micro L-Angle 4-Core Male Inline Cable
Gender: Male
Pin Count: 4
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: Ø15.7 mm
Total Length (mated): 38 mm
Bend Relief: Integrated PU Right-Angle Boot
Cable: 4 × 22 AWG PTFE Leads (supports 1000BASE-T)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet in Tight Spaces, Power + RS485/RS232, PTZ Camera Control, Multi-Sensor Links
Certification: ISO9001-2015
Compatibility: MCBH4F / MCIL4F Females
Place of Origin: Guangdong, China
