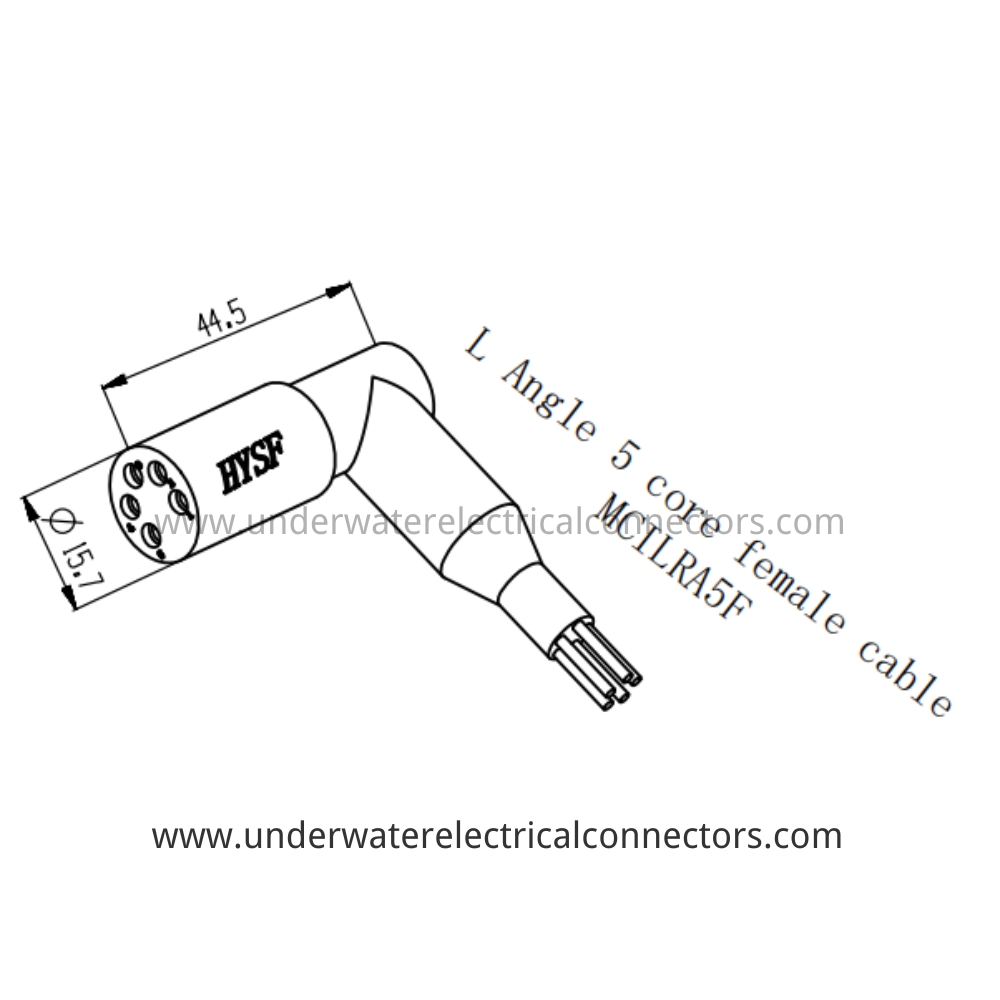

HYSF MCLRA5F is a compact right-angle (L-angle) 5-pin female inline cable connector with Ø15.7 mm PU overmold. IP68 rated, 60 MPa tested, designed for Gigabit Ethernet + single power line or complex multi-sensor/control links in extremely confined spaces on micro-ROVs, AUVs, PTZ cameras and deepsea instruments up to 6000m.
The HYSF MCLRA5F achieves a true 90-degree cable exit while maintaining the ultra-small Micro envelope, enabling clean routing in spaces where straight connectors are impossible. Only 44.5 mm mated length with integrated low-profile PU bend relief.
Precision 316L stainless steel insert with gold-plated brass sockets, fully overmolded in black polyurethane. Pre-terminated with 5 × 24 AWG PTFE leads. Supports 1000BASE-T Gigabit Ethernet (4 pins) + one dedicated power/ground line, or 5 independent sensor/control signals.
Widely used on observation-class ROVs, compact AUV payloads, high-resolution PTZ cameras and deep-rated multi-function instruments requiring maximum connectivity in minimum space. ISO9001-2015 certified with 1000+ mating cycles and full ocean depth rating.
Model: MCLRA5F
Brand: HYSF
Type: Micro L-Angle 5-Core Female Inline Cable
Gender: Female
Pin Count: 5
Contact Material: Gold-plated Brass
Current Rating: 8A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: Ø15.7 mm
Total Length (mated): 44.5 mm
Bend Relief: Integrated PU Right-Angle Boot
Cable: 5 × 24 AWG PTFE Leads (Gigabit Ethernet + Power capable)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet + Power, Multi-Sensor Links, PTZ Camera Control, Complex Control in Tight Spaces
Certification: ISO9001-2015
Compatibility: MCBH5M / MCIL5M Males
Place of Origin: Guangdong, China
