HYSF MCLRA6M is a compact right-angle (L-angle) 6-pin male inline cable connector with Ø15.7 mm PU overmold. IP68 rated, 60 MPa tested, ideal for Gigabit Ethernet + dual power/ground or complex multi-sensor + control links in extremely confined spaces on micro-ROVs, AUVs, 4K cameras and deepsea instruments up to 6000 m.

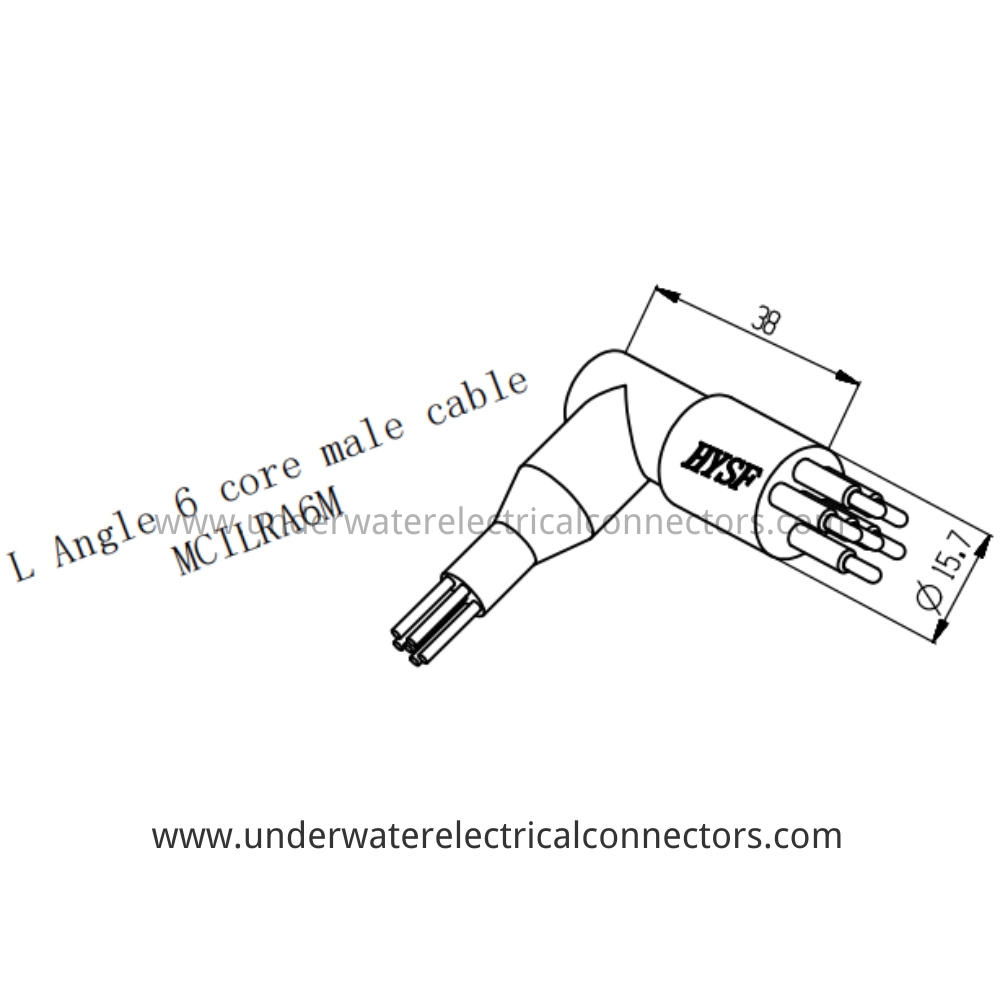

The HYSF MCLRA6M offers a true 90-degree cable exit within the ultra-small Micro envelope, allowing clean routing where straight connectors cannot fit. Only 38 mm mated length with integrated low-profile PU bend relief.
Precision 316L stainless steel insert with gold-plated brass pins, fully overmolded in black polyurethane. Pre-terminated with 6 × 24 AWG PTFE leads. Supports full 1000BASE-T Gigabit Ethernet (4 pins) + two dedicated power/ground lines, or six independent sensor/control signals.
Essential for observation-class ROVs, compact AUV payloads, high-resolution 4K/HD cameras and deep-rated multi-function instruments demanding maximum connectivity in minimum space. ISO9001-2015 certified with 1000+ mating cycles and full ocean depth rating.
Model: MCLRA6M
Brand: HYSF
Type: Micro L-Angle 6-Core Male Inline Cable
Gender: Male
Pin Count: 6
Contact Material: Gold-plated Brass
Current Rating: 8A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: Ø15.7 mm
Total Length (mated): 38 mm
Bend Relief: Integrated PU Right-Angle Boot
Cable: 6 × 24 AWG PTFE Leads (Gigabit Ethernet + Dual Power capable)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet + Dual Power/Ground, Multi-Sensor + Control, 4K PTZ Camera Links, Complex Tight-Space Routing
Certification: ISO9001-2015
Compatibility: MCBH6F / MCIL6F Females
Place of Origin: Guangdong, China
