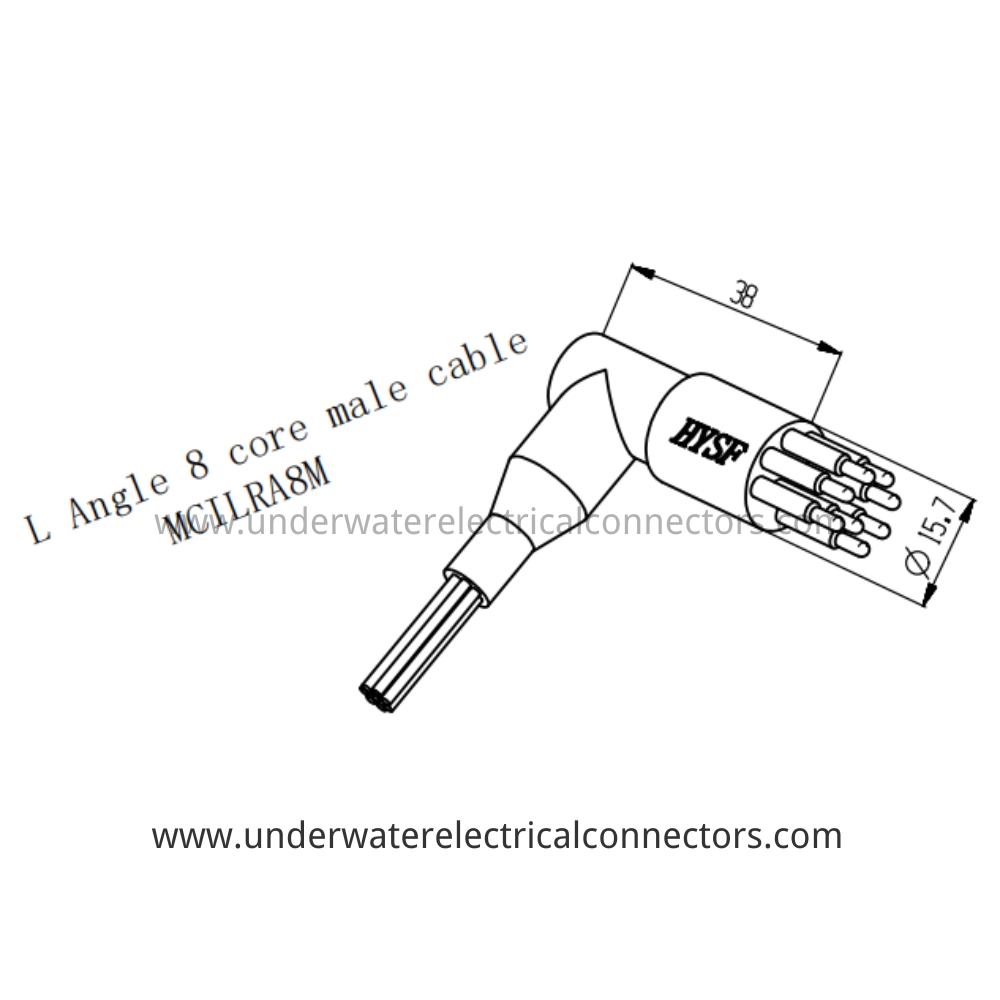

HYSF MCILRA8M Micro Circular L Angle 8-core male cable Underwater Connector

Product Description

The HYSF MCLRA8M packs an industry-leading 8 channels into a true 90-degree cable exit within the ultra-compact Micro envelope, allowing clean routing where straight connectors simply cannot fit. Only 38 mm mated length with integrated low-profile PU bend relief.

Precision 316L stainless steel insert with gold-plated brass pins, fully overmolded in black polyurethane. Pre-terminated with 8 × 24 AWG PTFE leads. Supports full 1000BASE-T Gigabit Ethernet (4 pins) + four additional power/ground or control lines, or eight independent sensor signals.

Essential for next-generation observation-class ROVs, compact AUV payloads, high-resolution 4K/HD cameras and deep-rated multi-function instruments demanding maximum channel count in minimum space. ISO9001-2015 certified with 1000+ mating cycles and full ocean depth rating.

Product Parameter

Model: MCLRA8M

Brand: HYSF

Type: Micro L-Angle 8-Core Male Inline Cable

Gender: Male

Pin Count: 8

Contact Material: Gold-plated Brass

Current Rating: 7A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel + PU Overmold

Sealing: Double O-Ring + Face Seal

Body Diameter: Ø15.7 mm

Total Length (mated): 38 mm

Bend Relief: Integrated PU Right-Angle Boot

Cable: 8 × 24 AWG PTFE Leads (Gigabit Ethernet + Multi-Power capable)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Application: Gigabit Ethernet + Multi-Power, High-Channel Sensor Links, 4K Camera Control, Complex Tight-Space Systems

Certification: ISO9001-2015

Compatibility: MCBH8F / MCIL8F Females

Place of Origin: Guangdong, China
