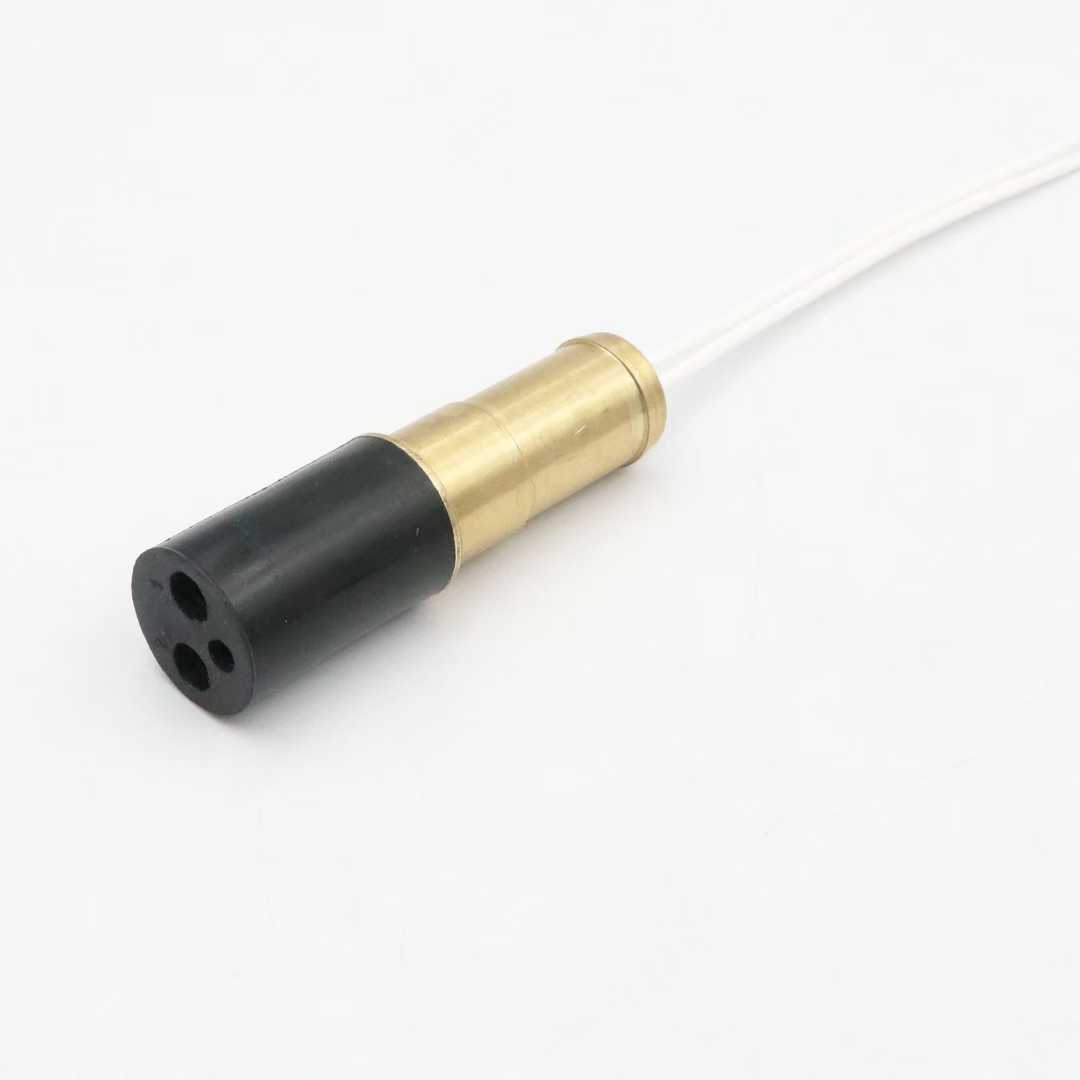

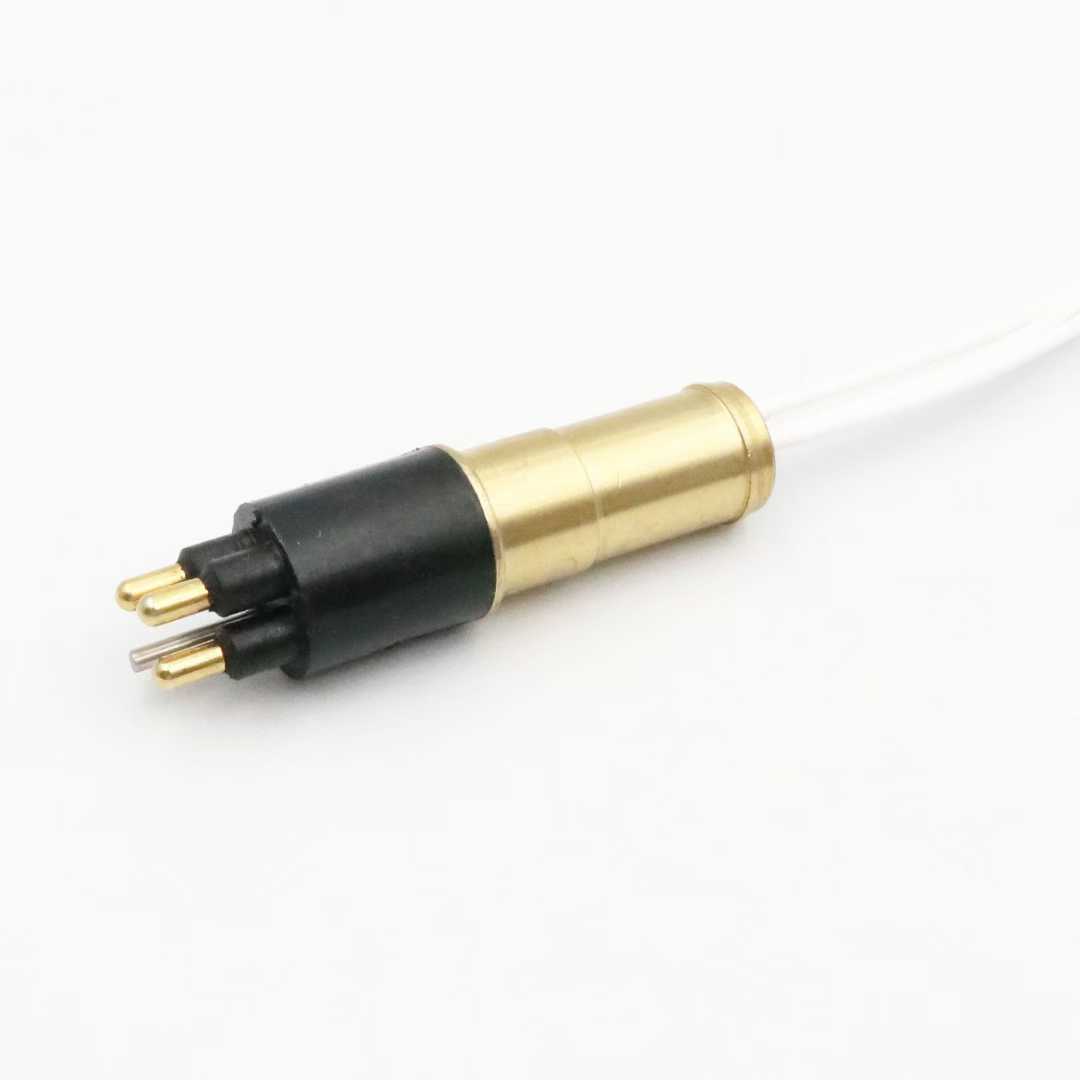

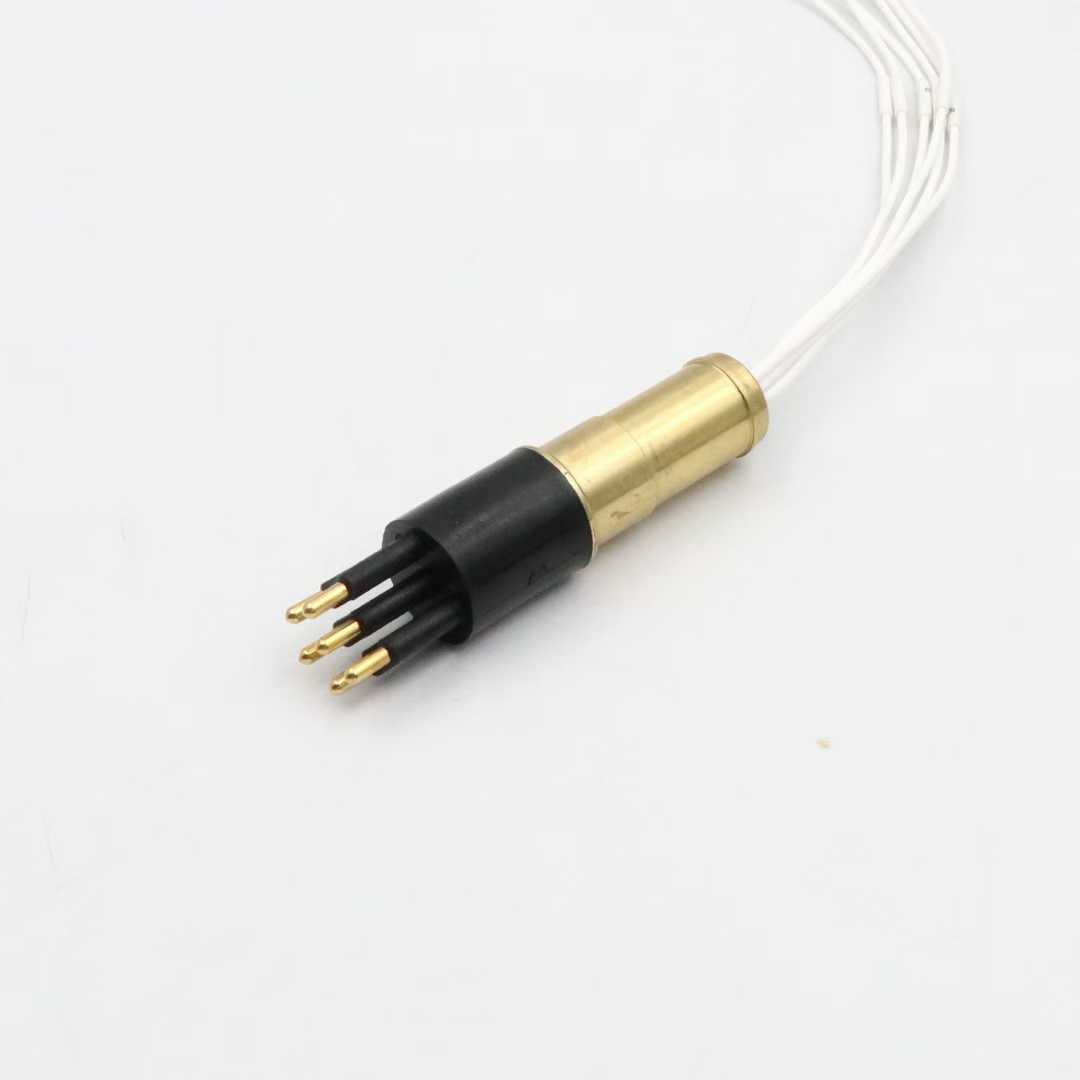

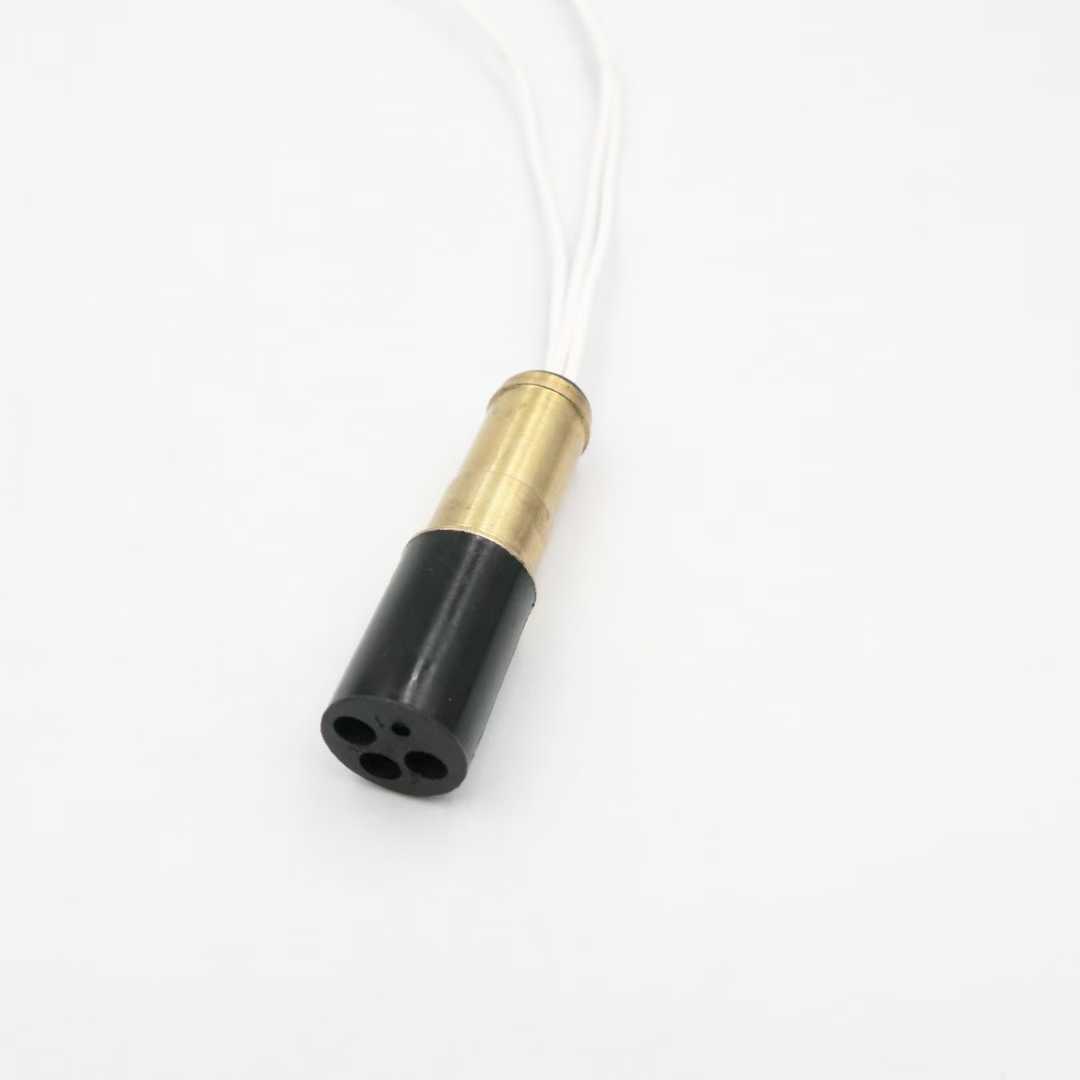

HYSF MCPBOF2-8M/F Oil-Filled Waterproof Connector (8-Pin Deep Water Cable Plug)

Product Description

The HYSF MCPBOF2-8M/F is a successfully customized **oil-filled waterproof connector** specifically engineered for extreme deep water operations. Featuring **8 gold-plated pins** immersed in **dielectric oil** for pressure equalization and bubble-free performance, it's designed for integration with syntactic foam pressure housings—perfect for ultra-deep ROV sensor pods, AUV deep-diving modules, and hadal zone instrumentation.

The oil-filled chamber compensates for external hydrostatic pressure, preventing seal extrusion and contact deformation at depths beyond 10,000 m. Constructed with **titanium alloy body** for lightweight corrosion resistance and **triple dynamic O-ring sealing**, it supports mixed power/signal transmission with low insertion force. The inline plug mates with standard MCPBOF2 female receptacles, with pre-assembled deep-water cable for immediate deployment.

This deep water oil-filled plug was developed for clients tackling hadal exploration challenges. HYSF offers full customization in pin count, oil type, housing material, and cable specs. ISO9001-2015 certified and hyperbaric-tested to 100 MPa.

Product Parameter

Model: MCPBOF2-8M/F

Brand: HYSF

Type: Oil-Filled Waterproof Deep Water Cable Plug

Gender: Male Inline

Pins: 8 Pin

Fill Medium: Dielectric Oil (Pressure Equalizing)

Current Rating: 5A per Pin

Voltage Rating: 300V AC/DC

Housing Material: Titanium Alloy

Contact Material: Gold-plated Brass

Sealing: Triple Dynamic O-Ring + Oil Chamber

Cable: Deep Water Rated, Pre-Assembled

Waterproof Rating: IP68

Mated Pressure Rating: 100 MPa (14,504 PSI / ~10,000 m)

Depth Rating: Up to 10,000m+

Operating Temperature: -10°C to 70°C

Interface Type: Power/Signal Compatible

Application: Ultra-Deep ROV Sensors, Hadal AUV Modules, Deep Water Instrumentation, Syntactic Foam Housings

Certification: ISO9001-2015

Customization: Pin count, oil viscosity, material, cable length, foam compatibility

Compatibility: MCPBOF2 Female Receptacles

Place of Origin: Guangdong, China
